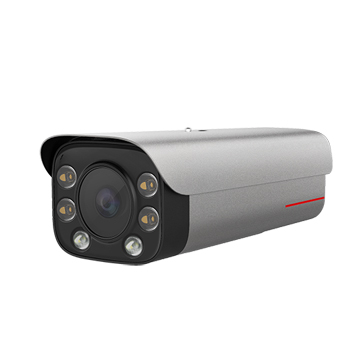

X2241-FLI 4T 4 million super starlight face capture tube camera
Support 4 TOPS computing power;
Behavior analysis, faces, human bodies;
Supports backlight adaptation, fog penetration adaptation, and speed adaptation;
Using 1/1.8" CMOS;
Software definition supports online loading and upgrade of algorithms;
120dB super wide dynamic range, restoring true details in high-contrast scenes;

Chip Hi3559AV100
Computing power 4 TOPS
Memory DDR4 4.0 GB
Flash SPI NAND FLASH 512.0 MB
Sensor maximum image size 4MP 2560(H)*1440(V)
Sensor photosensitive surface size 1/1.8"
Minimum illumination color: 0.0003Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter)
Lens focal length 12-55mm
Lens viewing angle: horizontal: 9.2° (T end) ~ 40.3° (W end); vertical: 5.3° (T end) ~ 22.8° (W end)
Infrared light fill distance 30m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Behavior analysis: rapid movement detection, removal detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Face face detection, face capture enhancement, face attribute detection
Human body detection, human attribute detection
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 2
Ethernet interface bandwidth 2 RJ45 10M/100M/1000M adaptive Ethernet ports
Power supply type AC24V
Power consumption: Maximum power consumption: 22.7W, typical power consumption: 6.7W
Working temperature -40℃~60℃(fill light turned off) -40℃~40℃(fill light turned on)
Working humidity 5%~95% (no condensation)
Protection grade IP67
Anti-riot IK10
