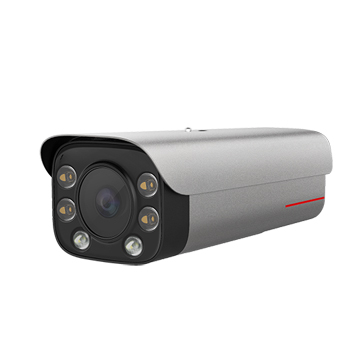

X2221-FL 4T 2 million face capture soft light tube camera

Support 4 TOPS computing power;
Supports heat maps, 1-to-N function, behavior analysis, faces, and human bodies;
Supports backlight adaptation, fog penetration adaptation, and speed adaptation;
Using 1/1.8" CMOS;
Software definition supports online loading and upgrade of algorithms;
120dB super wide dynamic range, restoring true details in high-contrast scenes;
Chip Hi3559AV100
Computing power 4 TOPS
Memory DDR4 2.0 GB
Flash SPI NAND FLASH 512.0 MB
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/1.8"
Minimum illumination color: 0.0004Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter)
Lens focal length 12-55mm
Lens viewing angle: Horizontal: 8.1° (T end) ~ 26.5° (W end); Vertical: 4.7° (T end) ~ 15.1° (W end)
White light fill light distance 20m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Heat map support
1 drag N function supported
Behavior analysis: fast movement detection, removal detection, line crossing detection, intrusion detection, loitering detection
Face face detection, face capture enhancement, face attribute detection, face recognition
Human body detection, human attribute detection
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M/1000M adaptive Ethernet port
Power supply type AC24V,POE(IEEE 802.3bt)
Power consumption: Maximum power consumption: 32W, typical power consumption: 8.5W
Working temperature -40℃~60℃
Working humidity 5%~95% (no condensation)
Protection grade IP67
Anti-riot IK10

Heat map

support

1 drag N function

support

Behavior analysis

Fast movement detection, removal detection, line crossing detection, intrusion detection, loitering detection

human face

Face detection, face capture enhancement, face attribute detection, face recognition

human body

Human body detection, human body attribute detection

Audio anomaly detection

Audio presence/absence detection, audio sudden rise and drop detection
