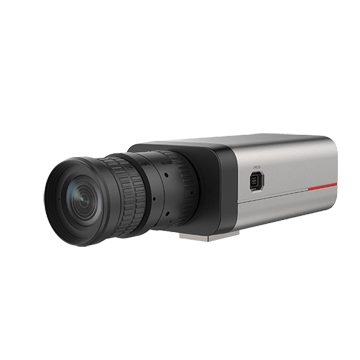

X1281-F 4T 8 million face capture gun camera
Support 4 TOPS computing power;
Supports heat maps, 1-to-N function, behavior analysis, faces, and human bodies;
Supports backlight adaptation, fog penetration adaptation, and speed adaptation;
Using 1/1.8" CMOS;
Software definition supports online loading and upgrade of algorithms;
120dB super wide dynamic range, restoring true details in high-contrast scenes
Chip Hi3559AV100
Computing power 4 TOPS
Memory DDR4 4.0 GB
Flash SPI NAND FLASH 512.0 MB
Sensor maximum image size 4K 3840(H)*2160(V)
Sensor photosensitive surface size 1/1.8"
Minimum illumination color: 0.001Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0005Lux (F1.2, AGC ON, 1/30 shutter)
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Heat map support
1 drag N function supported
Behavior analysis: fast movement detection, removal detection, line crossing detection, intrusion detection, loitering detection
Face face detection, face capture enhancement, face attribute detection, face recognition
Human body detection, human attribute detection
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M/1000M adaptive Ethernet port
Optical network interface 1 SFP slot
Power supply type AC24V, DC12V, POE (IEEE 802.3at)
Power consumption: Maximum power consumption: 9.5W, typical power consumption: 6.1W
Working temperature -20℃~50℃ (with protective cover to meet -20℃~60℃)
Working humidity 5%~95% (no condensation)



Lens-DC auto Iris manual focus lens-1/1.8" 8 MegaPixel-3.8-16mm-CS Mount-F1.5 DC-iris
CS-D03816IR(8MP)-HW

Lens-Manual zoom lens-1/1.7"4K-16-70mm-C-F1.4 DC-iris
C-D1670IR(8MP)

DC12V 2A European standard power adapter
EADAPTE01

DC12V 2A British standard power adapter
EADAPTE02

DC12V 2A American standard power adapter
EADAPTE08

Adapter--5degC-45degC-90V-270V-12V/2A-Chinese plug/DC head
EADAPTE09

AC24V 3A power adapter
HW-7224C14D-B

AC24V 3A power adapter
HW-7224C14D-A

DC12V 2A Australian standard power adapter
HW-120200A2W

DC12.5V 2A power adapter
HW-125200D1D

shield
DTS-15JCSHK

Bolt indoor/outdoor hoisting bracket
DTS-07H-X

Bolt indoor/outdoor wall mount bracket
DTS-12C

Bolt indoor/outdoor wall mount bracket
DTS-12C-X

universal joint
DTS-13C

Bolt guard hoisting bracket
DTS-06C

Bolt barrel column mounting bracket
DTS-11C

Three-dimensional universal joint bracket
ACC-B511-D
