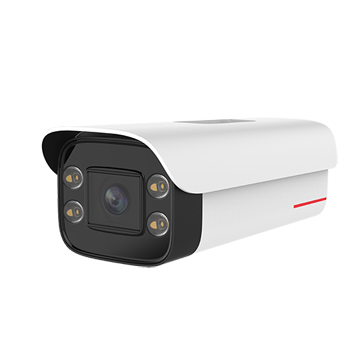

M2140-EBI(6mm) 1T 4 million behavioral analysis barrel camera
Support 1 TOPS computing power;
Supports heat maps, behavior analysis, and crowd situation analysis;
Using 1/2.7" CMOS;
120dB super wide dynamic range, restoring true details in high-contrast scenes;

Chip Hi3516DV300
Computing power 1 TOPS
Memory DDR3 0.5 GB
Flash SPI NAND FLASH 256.0 MB
Sensor maximum image size 4MP 2560(H)*1440(V)
Sensor photosensitive surface size 1/2.7"
Minimum illumination color: 0.015Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0075Lux (F1.2, AGC ON, 1/30 shutter)
Lens focal length 6mm
Lens viewing angle Horizontal: 49.3°; Vertical: 35.9°
Infrared light fill distance 50m
Video encoding format MJPEG/H.264/H.265
Heat map support
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M Ethernet port
Power supply type DC12V
Power consumption: Maximum power consumption: 7W, typical power consumption: 1.8W
Working temperature -30℃~60℃(fill light off) -30℃~40℃(fill light on)
Working humidity 5%~95% (no condensation)
Protection grade IP66
