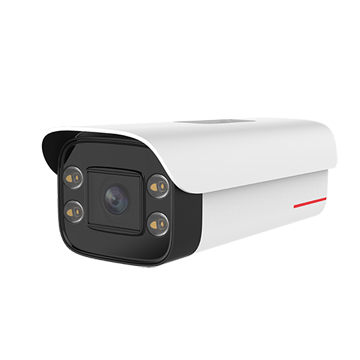

M2121-ECL (2.8-12mm) 1T 2 million face comparison tube camera
Support 1 TOPS computing power;
Face, human body;
Using 1/1.8" CMOS;
Software definition supports online loading and upgrade of algorithms;
120dB super wide dynamic range, restoring true details in high-contrast scenes;

Chip Hi3516DV300
Computing power 1 TOPS
Memory DDR3 1.0 GB
Flash SPI NAND FLASH 512.0 MB
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/1.8"
Minimum illumination color: 0.001Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter)
Lens focal length 2.8-12mm
Lens viewing angle: horizontal: 42° (T end) ~ 95.5° (W end); vertical: 24° (T end) ~ 52° (W end)
White light fill light distance 30m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
face face detection, face recognition
Human body detection
Audio port support
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M Ethernet port
Power supply type DC12V, PoE (IEEE 802.3at)
Power consumption: Maximum power consumption: 18W, typical power consumption: 8W
Working temperature -30℃~60℃
Working humidity 5%~95% (no condensation)
Protection grade IP67
