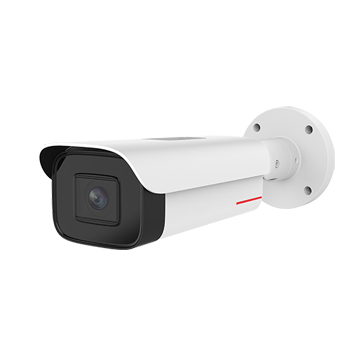

M2150-10-EI 1T 5 million AI infrared barrel camera
Support 1 TOPS computing power;
Supports heat maps, behavior analysis, faces, and human bodies;
Using 1/2.7" CMOS;
120dB super wide dynamic range, restoring true details in high-contrast scenes;

Chip Hi3516DV300
Computing power 1 TOPS
Memory DDR3 0.5 GB
Flash SPI NAND FLASH 256.0 MB
Sensor maximum image size 5MP 2560(H)*1920(V)
Sensor photosensitive surface size 1/2.7"
Minimum illumination color: 0.005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0025Lux (F1.2, AGC ON, 1/30 shutter)
Lens focal length 2.8-12mm
Lens viewing angle: horizontal: 30.6° (T end) ~ 94° (W end); vertical: 24° (T end) ~ 70° (W end)
Infrared light fill distance 50m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Heat map support
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
face face detection
Human body detection
Audio port support
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Power supply type DC12V, PoE (IEEE 802.3af)
Power consumption: Maximum power consumption: 16W, typical power consumption: 5W
Working temperature -30℃~60℃(fill light off) -30℃~40℃(fill light on)
Working humidity 5%~95% (no condensation)
Protection grade IP67
Anti-riot IK10
