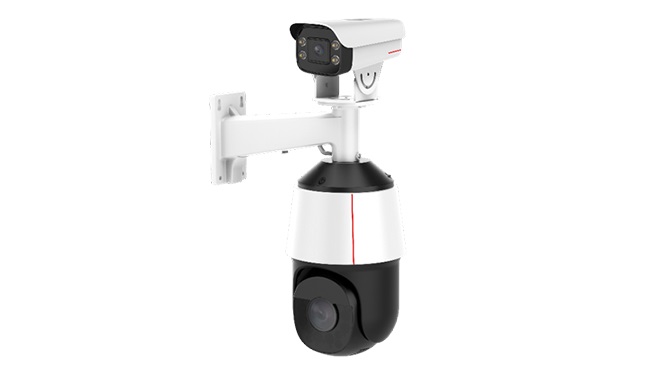

M8542-EL-Z31 Intelligent gun ball linkage system
Behavior analysis, machines and non-humans, vehicles, vehicle event detection, traffic data statistics;
Using 1/1.8" CMOS;
120dB super wide dynamic range, restoring true details in high-contrast scenes;

Chip barrel: Hi3516DV300 Ball: Hi3516DV300
Memory Cartridge: DDR3 Ball: DDR3 1.0 GB
Flash SPI NAND FLASH 256.0 MB
Sensor maximum image size 4MP 2560(H)*1440(V)
Sensor photosensitive surface size 1/1.8"
Minimum illumination color: 0.001Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter)
Lens focal length Fixed: 2.8-12mm; Moving: 6-186mm
Video encoding format MJPEG/H.264/H.265
Pan-tilt rotation angle: horizontal 0°~360°, continuous rotation: vertical -20°~90°, no obstruction in the full range
Pan-tilt horizontal speed: horizontal 0.1°~240°/S
PTZ vertical speed: vertical 0.1°~200°/S
Vehicle Mainland China plate recognition, body color detection, vehicle model detection, vehicle model detection
Vehicle event detection: non-occupancy detection, non-occupancy detection, illegal parking detection, retrograde/reversing detection, illegal parking detection
Traffic data statistics: traffic flow statistics, non-motor vehicle flow statistics, pedestrian statistics
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Non-motor vehicle traffic statistics Machine and non-human detection
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces Barrel: 1 Ball: 2
Ethernet interface bandwidth Tube: 1 RJ45 10M/100M Ethernet port; Ball: 2 RJ45 10M/100M Ethernet ports
Power supply type: DC12V, POE (IEEE 802.3at), ball: AC24V
Power consumption: barrel: maximum power consumption: 18W, typical power consumption: 8W; ball: maximum power consumption: 55.4W, typical power consumption: 17.1W
Working temperature: cylinder: -30℃~60℃, ball: -40℃~60℃
Working humidity 5%~95% (no condensation)
Protection level Barrel: IP67, Ball: IP66
Anti-riot tube: not supported Ball: IK10
