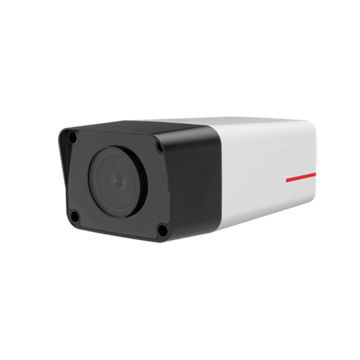

IPC6224-VRZ-B 2 million starlight level tube network camera
Support heat map and behavior analysis;
Using 1/1.8" CMOS;
120dB super wide dynamic range, restoring true details in high-contrast scenes;

Chip Hi3516AV100
Memory DDR3 0.5 GB
Flash SPI NAND FLASH 128.0 MB
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/1.8"
Minimum illumination color: 0.0004Lux (F1.5, AGC ON, 1/30 shutter), black and white: 0.0001Lux (F1.5, AGC ON, 1/30 shutter), black and white (infrared light on): 0Lux
Lens focal length 2.8-12mm
Lens viewing angle: horizontal: 43° (T end) ~ 97° (W end); vertical: 25° (T end) ~ 53° (W end)
Video encoding format MJPEG/H.264/H.265
Heat map support
Behavior analysis: fast movement detection, legacy detection, removal detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Power supply type DC12V, PoE (IEEE 802.3at)
Power consumption: Maximum power consumption: 13.5W, typical power consumption: 4.2W
Working temperature -30℃~60℃(fill light off) -30℃~40℃(fill light on)
Working humidity 5%~95% (no condensation)
Protection grade IP67
Anti-riot IK10
