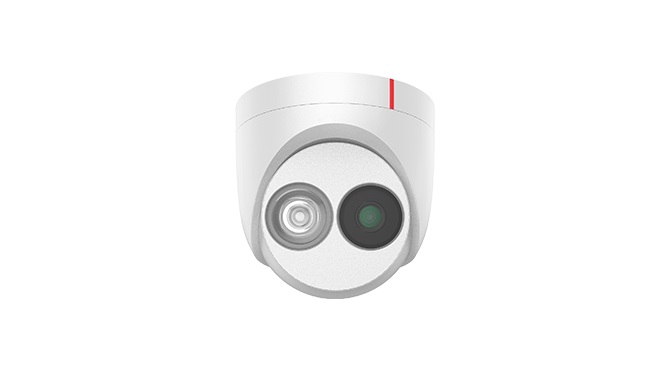

D3020-EI(2.8mm) 2 million infrared dome camera
Using 1/2.7" CMOS;
Digital wide dynamic range and super wide dynamic range restore true details in high-contrast scenes;

Chip Hi3516EV200
Memory DDR2 0.0625 GB
Flash SPI NAND FLASH 128.0 MB
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/2.7"
Minimum illumination color: 0.009Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0025Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (infrared turned on)
Lens focal length 2.8mm
Lens viewing angle Horizontal: 105°; Vertical: 56°
Infrared light fill distance 30m
Video encoding format MJPEG/H.264/H.265
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Power supply type DC12V
Power consumption: Maximum power consumption: 3.6W, Typical power consumption: 1.4W
Working temperature -30℃~55℃
Working humidity 5%~95% (no condensation)
Protection grade IP66
