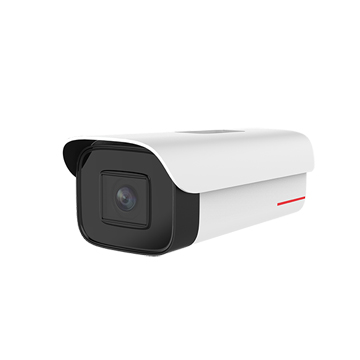

huawei C2120-I-P 2 million starlight level infrared barrel camera
Using 1/2.7" CMOS;
120dB super wide dynamic range, restoring true details in high-contrast scenes;
Chip Hi3516AV100
Memory DDR3 0.2500 GB
Flash SPI NAND FLASH 128.0 MB
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/2.7"
Minimum illumination color: 0.005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0005Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (turn on infrared)
Lens focal length 3.6mm
Lens viewing angle Horizontal: 84°; Vertical: 45.4°
Infrared light fill distance 30m
Video encoding format MJPEG/H.264/H.265
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Power supply type DC12V, PoE (IEEE 802.3af)
Power consumption: Maximum power consumption: 8.4W, typical power consumption: 3.2W
Working temperature -30℃~60℃(fill light off) -30℃~40℃(fill light on)
Working humidity 5%~95% (no condensation)
Protection grade IP67
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/2.7"
Minimum illumination color: 0.005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0005Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (turn on infrared)
Shutter 1/3s ~1/68250s
Day and night mode automatic (ICR)/color/black and white
Gain control: During manual exposure, a total of 101 steps from 0 to 100 can be set in steps of 1. Default is 0.
White balance automatic/manual/one-key trigger
Digital Noise Reduction 2D/3D Noise Reduction
Wide dynamic range 120dB
Strong light suppression support
Video anti-shake support
Algorithm fog penetration support
Exposure compensation support
Exposure mode support
Signal-to-noise ratio >45dB
Distortion correction support
Corridor mode supported
Image correction supports image mirroring (horizontal mirroring, vertical mirroring, horizontal and vertical mirroring)
Privacy masking support
Lens focal length 3.6mm/6mm
Maximum aperture F2.0
Lens viewing angle Horizontal: 84°; Vertical: 45.4°
Built-in infrared light support
Infrared light fill distance 30m
Video encoding format MJPEG/H.264/H.265
Number of video encoding channels: three streams
Main stream resolution 1920×1080(1080P), 1280×720(720P), 720×576(PAL), 720×480(NTSC)
Sub-stream resolution Sub-stream one: 1920×1080(1080P), 1280×720(720P), 720×576(PAL), 720×480(NTSC); Sub-stream two: 720×576(PAL), 720×480(NTSC), 352×288(PAL), 352×240(NTSC)
Video frame rate 60/50/30/25fps can be set, the default value is 25fps (60/50 can only be configured in single stream)
Video bit rate only for H.264 and H.265 1080P~4K 512Kbps ~ 16Mbps 720P 384Kbps ~ 8Mbps D1 256K ~ 4Mbps CIF 32K ~ 1Mbps
Smart encoding Extra265/264
ROI (Region of Interest Coding) Each channel supports 4 groups. The quality of ROI relative to non-ROI is adjustable from 0 to 10 in steps of 1.
SD interface supports maximum capacity None
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Protocols supported by IPV4: TCP, UDP, IPv4, IPv6, DHCP, DHCPv6, DNS, ICMP, ICMPv6, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/ V3), 802.1x, QoS, DDNS, PPPOE Note: 1. DDNS adopts the peanut shell solution; 2. The northbound protocol should be adapted to PPPOE dial-up scenarios
IPV6 supported protocols HTTPS, RTP, RTCP, RTSP, SSH, Onvif
Business constraints supported by IPV6 Web page: live broadcast, recording, IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration Onvif: live broadcast, recording, IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration, Probe is not supported Business Note: IPV6 multicast is not supported
Access protocol ONVIF, SDK (private protocol), GA/T 1400
User permissions are divided into 3 levels: administrator, senior operator, and ordinary operator
Safe mode Username and password authentication, support 802.1.x, HTTPS digital certificate
GB35114 support
Security/encryption intrusion detection support
Power supply type DC12V, PoE (IEEE 802.3af)
Power consumption: Maximum power consumption: 8.4W, typical power consumption: 3.2W
Working temperature -30℃~60℃(fill light off) -30℃~40℃(fill light on)
Working humidity 5%~95% (no condensation)
Lightning protection and surge protection 4kV
Protection grade IP67
Overall machine weight 0.54kg
Packing weight 0.84kg
Overall machine size 108mm×91mm×210mm
Packaging size 296mm×141mm×117mm
