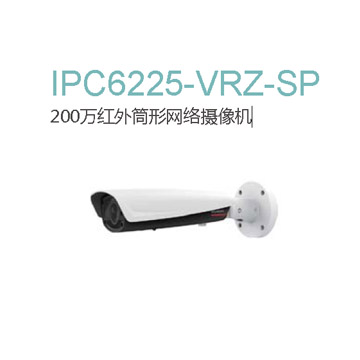

IPC6225-VRZ-SP 2 million infrared barrel network camera
Product Features
  Integrated design integrates high-definition auto-zoom lens, high-efficiency infrared light group and three-axis mounting bracket
Infrared technology, invisible monitoring at night
Support H.265 encoding format, support dual-channel independent 1080p high-definition encoding
1080p@60fps high frame rate, capturing moving targets more clearly
IP66 dustproof and waterproof level, more reliable for outdoor applications
IK10 anti-riot level, strong enough to withstand violent damage
The window glass adopts rainwater self-cleaning technology and provides all-weather high-definition monitoring.
Strong light suppression, no key information is lost under strong light interference
120dB super wide dynamic range, truly restoring detailed information in strong contrast scenes
Intelligent fog penetration to enhance image clarity in foggy scenes
Supports rapid configuration of typical scenarios and stream packages
Five types of intelligent behavior analysis, color classification, people and vehicles classification
Intelligent extraction of metadata to provide massive metadata for smart applications
SEC has super strong error correction, and the network packet loss image is still smooth.
-40℃～60℃ ultra-wide operating temperature range
±25% ultra-wide operating voltage fluctuation range
DC, AC, PoE three power supplies, supporting adapter and PoE hot backup

Technical Parameters
Product model IPC6225-VRZ-SP
camera
Image sensor 1/2.8" 2 million pixel progressive scan CMOS
Effective image size 1920(H)×1080(V)
Minimum illumination color: 0.008Lux (F1.4, AGC ON)
Black and white: 0.002Lux (F1.4, AGC ON), 0lux (turn on infrared)
Day and night mode automatic/color/black and white (ICR infrared cut filter type)
Electronic shutter speed 1/100000 second ~ 1 second
White balance auto/auto follow/manual/one-time calibration, supports scene mode selection (room
Indoor/outdoor/sodium lamp/incandescent lamp/fluorescent lamp)
Gain control automatic/manual
Wide dynamic range 120dB
Backlight compensation support
Strong light suppression support
Video anti-shake supports electronic anti-shake
Image dehazing automatic/manual
Image Noise Reduction 2D/3D Intelligent Adaptive Noise Reduction
Infrared fill light distance 30m
Invisible infrared support, infrared is invisible to the naked eye when turned on
Windows self-cleaning support
lens
Focal length and aperture 2.8 ~12mm (4.3x optical zoom), maximum aperture F1.4
Horizontal field of view angle: 34° (telephoto end) ~ 86° (wide angle end),
Vertical field of view: 18° (telephoto end) ~ 47° (wide-angle end)
Automatic iris DC-Iris driver
Function
Video encoding format H.265/H.264/MJPEG
Resolution 1920×1080
Frame rate 60Hz: 60/30/20~1fps; 50Hz: 50/25/20~1fps
Video bit rate 32Kbps~16Mbps
Multi-channel encoding three streams, supporting 1080p dual-channel independent high-definition encoding
Streaming packages support "HD quality", "Bandwidth balance", "Low bandwidth", "Mobile device
"Prepared" basic stream package supports four groups of customized packages
Audio encoding format G.711a/G.711u/G.726/OPUS
Audio communication voice intercom, voice broadcast, accompanying voice
Quick scene configuration supports a total of 5 groups of "indoor scene/outdoor scene/virtual bayonet/low light scene/backlight"
Built-in packages and 8 sets of customized packages
Front-end access protocol ONVIF Profile S/G, GB/T 28181-2014, Genetec
Protocol v1.00, HUAWEI SDK (private)
Network protocol
TCP, UDP, IPv4, IPv6, DHCP, DHCPv6, DNS, ICMP, ICMPv6,
IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL,
NTP, SNMP (V1/V2/V3), 802.1x, QoS, DDNS
Safe mode username and password authentication, supports 802.1 access authentication, HTTPS digital certificate
Media security code stream AES128/192/256 encryption, supports digital watermark
Intelligent analysis supports line crossing, wandering, perimeter, object left behind, and object removed.
Target color recognition, pedestrian and vehicle classification, metadata return
Motion and occlusion detection supports 4 areas of motion detection and full-screen occlusion detection
Alarm linkage alarm source: motion detection/occlusion detection/alarm input/intelligent analysis alarm
Linkage: alarm output/SD card recording/capture
interface
Network interface: 1 RJ45 100M Ethernet port, supporting 10/100M adaptive
Communication serial port 1 RS-485 interface, supports PELCO-P/D, transparent channel
Alarm interface: 2 alarm inputs, 2 alarm outputs
Video interface 1 channel CVBS composite analog video signal (BNC connector)
Audio interface: 1 audio input/1 audio output (3.5mm audio connector)
Storage interface: 1 Micro SD card slot, supports SDHC/SDXC cards, maximum capacity 64GB
General specifications
Power supply PoE (802.3at), AC24V±25%, DC12V±25%, DC24V±25%, (DC
Power supply has no polarity), supports DC/AC adapter and PoE hot backup
Power consumption typical 3.3W, maximum 16.3W
Working temperature -40℃ ~ 60℃
Working humidity 5% ~ 95% (no condensation)
Lightning protection level 6kV surge protection, in line with IEC 61000-4-5
Protection class IP66 according to IEC 60529
Anti-explosion level IK10 (except windows), in accordance with IEC 62262
Weight: net weight 1.4Kg, gross weight 1.9kg
Dimensions (length*width*height) equipment 353.6×128.1×120.0mm,
Packaging 418.0×163.0×155.0mm
