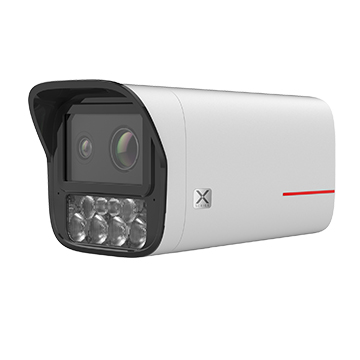

X2281-10-HLI-E2(10-50mm)(4mm) 4T 8 million binocular AI tube camera
Support 4 TOPS computing power;
Supports fully structured, multi-algorithm switching, behavior analysis, crowd situation analysis, target, human body, machine and non-human, vehicle, vehicle event detection, and traffic data statistics;
Supports backlight adaptation and fog penetration adaptation;
Adopt wide-angle fixed focus: 1/1.8" CMOS; zoom: 1/1.2" CMOS;
Software definition supports online loading and upgrade of algorithms;
120dB super wide dynamic range, restoring true details in high-contrast scenes;
Support full structure;
Key specifications
Vehicle Mainland China plate recognition, license plate enhancement, body color detection, car model detection, car model detection
Vehicle event detection: non-occupancy detection, non-occupancy detection, illegal parking detection, retrograde/reversing detection
Traffic data statistics: traffic flow statistics, non-motor vehicle flow statistics, pedestrian statistics
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
Target target detection, target capture enhancement, target attribute detection, target recognition
Human body detection, human attribute detection
Machine is not a human Machine is not a human detection, cyclist attribute detection
Chip Hi3559AV100
Computing power 4 TOPS
Memory DDR4 4.0 GB
Flash EMMC
Sensor maximum image size: Wide-angle fixed focus: 4MP 2560(H)*1440(V) Zoom: 8MP 3840(H)*2160(V)
Sensor photosensitive surface size: wide-angle fixed focus: 1/1.8" CMOS zoom: 1/1.2" CMOS
Minimum illumination color: 0.0004Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (infrared on)
Lens focal length fixed focus: 4mm zoom: 10-50mm
Lens viewing angle Fixed focus: 95°*50° Zoom: W end: 48.9°*42.5° T end: 13.8°*12.1° Field of view angle deviation ±5%
Infrared light fill distance 60m
White light fill light distance 20m
Video encoding format MJPEG/H.264/H.265
Video frame rate Panorama: 30/25fps can be set Details: 30/25fps can be set
Audio encoding format G.711a/G.711u/G.726/OPUS
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M/1000M adaptive Ethernet port
Power supply type AC24V,POE(IEEE 802.3at)
Power consumption: Maximum power consumption: 22W, typical power consumption: 8.1W
Working temperature -30℃~60℃
Working humidity 5%~95% (no condensation)
Protection grade IP67
Riot IK10 (except windows)
Basic parameters
Sensor maximum image size: Wide-angle fixed focus: 4MP 2560(H)*1440(V) Zoom: 8MP 3840(H)*2160(V)
Sensor photosensitive surface size: wide-angle fixed focus: 1/1.8" CMOS zoom: 1/1.2" CMOS
Minimum illumination color: 0.0004Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (infrared on)
Shutter supports slow shutter; slow shutter levels: 1/3, 1/4, 1/8, 1/12, 1/15; non-slow shutter levels: 1/25, 1/30, 1/50, 1/60, 1/90,1/100,1/120,1/125,1/180,1/250,1/350,,1/500,1/725,1/1000,1/1500,1/2000,1 /3000,1/4000,1/6000,1/10000,1/30000,1/100000,custom shutter; mixed pedestrian card level: 1/30,1/50,1/60,1/90,1/ 100,1/120,1/125,1/180,1/250,1/350,,1/500,1/725,1/1000,1/1500,1/2000,1/3000,1/4000 ,1/6000,1/10000,1/30000,1/100000,custom shutter; mixed micro card level: 1/100,1/120,1/125,1/180,1/250,1/350 ,,1/500,1/725,1/1000,1/1500,1/2000,1/3000,1/4000,1/6000,1/10000,1/30000,1/100000,custom shutter; Default value 1/25; Mixed mode: does not support slow shutter, human card: 1/100, micro card: 1/250; single card: 1/100; single micro card: 1/250; behavior analysis: 1/ 25;
Day and night mode supported; automatic (ICR)/color/black and white/timing Default color Sensitivity high, medium, low Default high Image trigger/internal trigger
Gain control: During manual exposure, a total of 101 steps from 0 to 100 can be set in steps of 1. Default is 0.
White balance automatic/manual/one-key trigger
Digital Noise Reduction 2D/3D Noise Reduction
Wide dynamic range 120dB
Strong light suppression support
Video anti-shake support function; sensitivity not supported;
Algorithm fog penetration support
Exposure compensation support
Exposure mode support
Signal-to-noise ratio >45dB
Electric focus support
Day and night focus compensation support
Backlight adaptive support
Fog adaptive support
Distortion correction support
Mirror mode supports image mirroring (horizontal mirroring, vertical mirroring, horizontal and vertical mirroring)
Digital zoom support
Privacy masking support
EMMC support (start)
Lens/fill light
Lens focal length fixed focus: 4mm zoom: 10-50mm
Maximum aperture Fixed focus: F1.0±10% Zoom: F1.65±10%
Lens viewing angle Fixed focus: 95°*50° Zoom: W end: 48.9°*42.5° T end: 13.8°*12.1° Field of view angle deviation ±5%
Built-in infrared light support
Infrared light fill distance 60m
Built-in white light support
White light fill light distance 20m
video/audio
Video encoding format MJPEG/H.264/H.265
Number of video encoding channels: five streams
Main stream resolution Panorama: 2560×1440(4MP), 2304×1296(3MP), 1920×1080(1080P), 1280×720(720P), Detail: 3840×2160(4K), 3072×1728(5MP) ,2560×1440(4MP), 2304×1296(3MP),1920×1080(1080P),1280×720(720P),
Sub-stream resolution Panorama: Sub-stream one: 1920×1080 (1080P), 1280×720 (720P), 720×576 (PAL), 720×480 (NTSC); Sub-stream two: 1280×720 (720P) ), 720×576(PAL), 720×480(NTSC), 352×288(PAL), 352×240(NTSC); Sub-stream three: 720×576(PAL), 720×480(NTSC), 352 ×288(PAL), 352×240(NTSC); Sub-stream four: 720×576(PAL), 720×480(NTSC), 352×288(PAL), 352×240(NTSC) Details: Sub-stream One: 1920×1080(1080P), 1280×720(720P), 720×576(PAL), 720×480(NTSC); Sub-stream two: 1280×720(720P), 720×576(PAL), 720 ×480(NTSC), 352×288(PAL), 352×240(NTSC); Sub-stream three: 720×576(PAL), 720×480(NTSC), 352×288(PAL), 352×240( NTSC); Sub-stream four: 720×576(PAL), 720×480(NTSC), 352×288(PAL), 352×240(NTSC)
Video frame rate Panorama: 30/25fps can be set Details: 30/25fps can be set
Video bit rate only for H.264 and H.265 1080P~4K 512Kbps ~ 16Mbps 720P 384Kbps ~ 8Mbps D1 256K ~ 4Mbps CIF 32K ~ 1Mbps
Smart encoding Extra265/264
ROI (Region of Interest Coding) Each channel supports 4 groups. The quality of ROI relative to non-ROI is adjustable from 0 to 10 in steps of 1.
Audio encoding format G.711a/G.711u/G.726/OPUS
Audio sampling rate G.711a/G.711u/G.726: 8K OPUS: 8K/12K/16K/24K/48K
Audio code rate G.711a/G.711u: 64kbps G.726: 16, 24, 32, 40kbps OPUS can be set: 16/24/32/40/64/96/128/160/192/224/256/288Kbps Can be set
intelligent
Vehicle Mainland China plate recognition, license plate enhancement, body color detection, car model detection, car model detection
Vehicle event detection: non-occupancy detection, non-occupancy detection, illegal parking detection, retrograde/reversing detection
Traffic data statistics: traffic flow statistics, non-motor vehicle flow statistics, pedestrian statistics
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
Target target detection, target capture enhancement, target attribute detection, target recognition
Human body detection, human attribute detection
Machine is not a human Machine is not a human detection, cyclist attribute detection
Fully structured support
Multi-algorithm switching support
interface
SD interface supports maximum capacity. Provides MicroSD card slot, supports MicroSDHC/MicroSDXC, and supports memory cards with a maximum capacity of 256GB.
Audio input interface supported (1 LINE IN and 2 built-in MICs)
Audio output interface supported (1 LINE OUT or 1 speaker)
RS485 interface supported, 1 half-duplex RS485 interface
Switching interface supported, 2 inputs/1 output
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M/1000M adaptive Ethernet port
Network docking
Access protocol GB/T 28181 (2011, 2016 protocol specifications), SDK (private protocol), Rest API (private protocol), GA/T 1400
Protocols supported by IPV4: TCP, IPv4, UDP, DHCP, DNS, ICMP, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/V3), 802.1x, QoS, SMTP, PPPOE Note: 1 Northbound protocol should be adapted to PPPOE dial-up scenarios
IPV6 supported protocols HTTPS, RTP, RTCP, Onvif, RTSP, IPv6, ICMPv6, DHCPv6
Business constraints supported by IPV6 Web page: live (static IPV6), video (static IPV6), IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration
Onvif: live (static IPV6), video (static IPV6), IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration, Probe service not supported
Note:
1. Does not support IPV6 multicast
2. Does not support DNS
3. Does not support IP conflict detection
Safety
User permissions are divided into 3 levels: administrator, senior operator, and ordinary operator
Safe mode Username and password authentication, support 802.1.x, HTTPS digital certificate
Video digital watermark support
Image digital watermark support
GB35114 support
Secure boot support
Security/encryption intrusion detection support
General specifications
Power supply type AC24V,POE(IEEE 802.3at)
Power consumption: Maximum power consumption: 22W, typical power consumption: 8.1W
Working temperature -30℃~60℃
Working humidity 5%~95% (no condensation)
Windows self-cleaning support
Lightning protection and surge protection 4kV
Protection grade IP67
Riot IK10 (except windows)
Overall machine weight 2.175kg
Packing weight 2.525kg
Overall machine size 230mm×127mm×120.8mm
Packaging size 285mm×184mm×156mm
Accessories
Power frequency transformer-108V-132V-3A-24V-130*92*68mm--40degC-50degC
HW-7224C14D-A
(02220387)
Adapter--40degC-65degC-90V-290V-56.0V/1.61A-C14/RJ45
AD-560161T0E
(02221409)
Power frequency transformer-single-230V-230V-2A-2A-24V-24V-48W-50degC-138*77*69mm--40degC-60degC
HW-4824C14D-E
(09020548)
Barrel machine column bracket
ACC3231
(21154637)
Three-dimensional universal joint bracket
ACC3282
(21154640)
Bolt wall mount bracket
ACC3210
(51661JVQ)
Guard, barrel hoisting bracket
ACC3221
(51661LKT)
