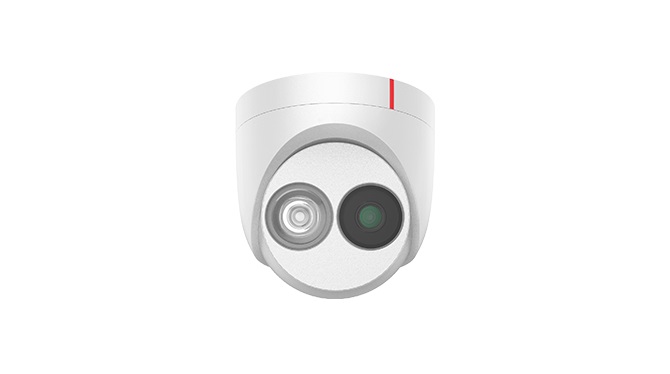

C305A-I-P (2.8mm) Huawei 5 million starlight-level infrared dome camera

Chip Hi3516AV100
Memory DDR3 0.5 GB
Flash SPI NAND FLASH 128.0 MB
Sensor maximum image size 5MP 2560(H)*1920(V)
Sensor photosensitive surface size 1/2.7"
Minimum illumination color: 0.005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0005Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (turn on infrared)
Lens focal length 2.8mm
Lens viewing angle Horizontal: 97.3°; Vertical: 70.7°
Infrared light fill distance 30m
Video encoding format MJPEG/H.264/H.265
Ethernet interface supported
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Power supply type DC12V, PoE (IEEE 802.3af)
Power consumption: Maximum power consumption: 7W, typical power consumption: 2.2W
Working temperature -30℃~60℃(fill light off) -30℃~40℃(fill light on)
Working humidity 5%~95% (no condensation)
Protection grade IP66

Minimum illumination (Lux) Color: 0.005Lux Black and white: 0.0005Lux CMOS 1/2.7" Progressive Scan CMOS
image enhancement
Wide dynamic range, white balance, strong light suppression, fog penetration, digital noise reduction, distortion correction
Backlight compensation, positive day and night focus compensation (only C302A-I-P (3.6mm))
Insight
Behavior analysis, anomaly detection, people flow statistics, video quality diagnosis
Face detection (C305A-I-P(3.6mm))
Compression encoding H.265/H.264/MJPEG Working temperature -30℃~60℃
Protection/anti-riot/lightning protection IP66/4KV Dimensions
Equipment 102*102*98mm;
Packaging 114*114*126mm
Power supply DC12V, PoE (IEEE 802.3af) Weight of equipment 0.35kg, packaging 0.4kg
Power consumption
Maximum power consumption 6.5W, typical power consumption 4W (C302A-I-P (3.6mm))
Maximum power consumption 8.5W, typical power consumption 4W (C305A-I-P (3.6mm))
