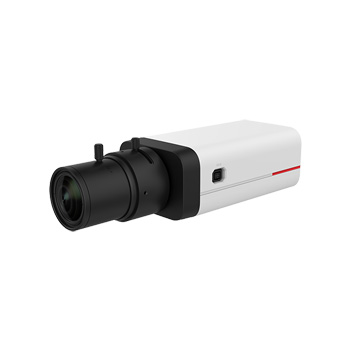

M1241-10-Q-FA 2T 4 million AI gun camera

Support 2 TOPS computing power;
Supports fully structured, 1-to-N function, multi-algorithm switching, behavior analysis, crowd situation analysis, target, human body, machine and non-human, vehicle, vehicle event detection, and traffic data statistics;
Supports backlight adaptation, fog penetration adaptation, and speed adaptation;
Using 1/1.8" CMOS;
Software definition supports online loading and upgrade of algorithms;
120dB super wide dynamic range, restoring true details in high-contrast scenes;
Support full structure;
Vehicle Mainland China plate recognition, license plate enhancement, body color detection, car model detection, car model detection
Vehicle event detection: non-occupancy detection, non-occupancy detection, illegal parking detection, retrograde/reversing detection
Traffic data statistics: traffic flow statistics, non-motor vehicle flow statistics, pedestrian statistics
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
Target target detection, target capture enhancement, target attribute detection, target recognition
Human body detection, human attribute detection
Machine is not a human Machine is not a human detection, cyclist attribute detection
Chip Hi3519AV100
Computing power 2 TOPS
Sensor photosensitive surface size 1/1.8" CMOS
Minimum illumination color: 0.002Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0005Lux (F1.2, AGC ON, 1/30 shutter)
Video encoding format MJPEG/H.264/H.265
Video frame rate 30/25fps can be set
Audio encoding format G.711a/G.711u/G.726/OPUS/AAC
1 drag N function supported
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M/1000M adaptive Ethernet port
Optical network interface 1 SFP slot
Power supply type DC12V, AC24, PoE (IEEE 802.3af)
Power consumption: Maximum power consumption: 6.9W, Typical power consumption: 4.9W
Working temperature -30℃~60℃
Working humidity 5%~95% (no condensation)
Sensor photosensitive surface size 1/1.8" CMOS
Minimum illumination color: 0.002Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0005Lux (F1.2, AGC ON, 1/30 shutter)
Shutter supports slow shutter; slow shutter levels: 1/3, 1/4, 1/8, 1/12, 1/15; non-slow shutter levels: 1/25, 1/30, 1/50, 1/60, 1/90,1/100,1/120,1/125,1/180,1/250,1/350,,1/500,1/725,1/1000,1/1500,1/2000,1 /3000,1/4000,1/6000,1/10000,1/30000,1/100000,custom shutter; mixed pedestrian card level: 1/30,1/50,1/60,1/90,1/ 100,1/120,1/125,1/180,1/250,1/350,,1/500,1/725,1/1000,1/1500,1/2000,1/3000,1/4000 ,1/6000,1/10000,1/30000,1/100000,custom shutter; mixed micro card level: 1/100,1/120,1/125,1/180,1/250,1/350 ,,1/500,1/725,1/1000,1/1500,1/2000,1/3000,1/4000,1/6000,1/10000,1/30000,1/100000,custom shutter; Default value 1/25; Mixed mode: does not support slow shutter, human card: 1/100, micro card: 1/250; single card: 1/25; single micro card: 1/250; behavior analysis: 1/ 25;
Day and night mode supported; automatic (ICR)/color/black and white Default color Sensitivity high, medium, low Default high Image trigger/internal trigger
Gain control: During manual exposure, a total of 101 steps from 0 to 100 can be set in steps of 1. Default is 0.
White balance automatic/manual/one-key trigger
Digital Noise Reduction 2D/3D Noise Reduction
Wide dynamic range 120dB
Strong light suppression support
Video anti-shake support function; sensitivity not supported;
Optical fog transmission is not supported
Algorithm fog penetration support
Exposure compensation support
Exposure mode support
Signal-to-noise ratio >45dB
Electric focus support
Backlight adaptive support
Fog adaptive support
Speed adaptive support
Corridor mode supported
Mirror mode supports image mirroring (horizontal mirroring, vertical mirroring, horizontal and vertical mirroring)
Privacy masking support
ABF involves
Lens aperture type DC-Iris (driving impedance ≥190ohm; braking impedance ≥500ohm)
Video encoding format MJPEG/H.264/H.265
Number of video encoding channels: three streams
Main stream resolution 2560×1440(4MP), 2304×1296(3MP), 1920×1080(1080P), 1280×720(720P)
Sub-stream resolution Sub-stream one: 1920×1080(1080P), 1280×720(720P), 720×576(PAL), 720×480(NTSC); Sub-stream two: 720×576(PAL), 720×480(NTSC), 352×288(PAL), 352×240(NTSC)
Video frame rate 30/25fps can be set
Video bit rate only for H.264 and H.265 1080P~4K, 512Kbps ~ 16Mbps; 720P, 384Kbps ~ 8Mbps; D1, 256K ~ 4Mbps; CIF, 32K ~ 1Mbps;
Smart encoding Extra265/264
ROI (Region of Interest Coding) Each channel supports 4 groups. The quality of ROI relative to non-ROI is adjustable from 0 to 10 in steps of 1.
Audio encoding format G.711a/G.711u/G.726/OPUS/AAC
Audio sampling rate G.711a/G.711u/G.726: 8K OPUS: 8K/12K/16K/24K/48K
Audio bit rate G.711a/G.711u: 64kbps; G.726: 16, 24, 32, 40kbps can be set; OPUS: 16/24/32/40/64/96/128/160/192/224/256 /288Kbps can be set
Vehicle Mainland China plate recognition, license plate enhancement, body color detection, car model detection, car model detection
Vehicle event detection: non-occupancy detection, non-occupancy detection, illegal parking detection, retrograde/reversing detection
Traffic data statistics: traffic flow statistics, non-motor vehicle flow statistics, pedestrian statistics
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
Target target detection, target capture enhancement, target attribute detection, target recognition
Human body detection, human attribute detection
Machine is not a human Machine is not a human detection, cyclist attribute detection
Fully structured support
1 drag N function supported
Multi-algorithm switching support
SD interface supports maximum capacity. Provides MicroSD card slot, supports MicroSDHC/MicroSDXC, and supports memory cards with a maximum capacity of 256GB.
Audio input interface supported (1 LINE IN or 1 external MIC)
Audio output interface supports (1 LINE OUT)
RS485 interface supported, 1 half-duplex RS485 interface
Switching interface supported, 1 input/1 output
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M/1000M adaptive Ethernet port
Optical network interface 1 SFP slot
Optoelectronic serial interface support
Access protocol GB/T 28181 (2011, 2016 protocol specifications), SDK (private protocol), Rest API (private protocol), GA/T 1400
Protocols supported by IPV4: TCP, UDP, IPv4, DHCP, DNS, ICMP, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/V3), 802.1x, QoS, SMTP, PPPOE Note: 1 Northbound protocol should be adapted to PPPOE dial-up scenarios
IPV6 supported protocols HTTPS, RTP, RTCP, RTSP, Onvif, IPv6, ICMPv6, DHCPv6
Business constraints supported by IPV6 Web page: live (static IPV6), recording (static IPV6), IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration Onvif: live (static IPV6), recording (static IPV6), IPv6 IP (Including static IP, route announcement) configuration, DHCPv6 configuration, Probe service not supported Note: 1. Does not support IPV6 multicast 2. Does not support DNS 3. Does not support IP conflict detection
User permissions are divided into 3 levels: administrator, senior operator, and ordinary operator
Safe mode Username and password authentication, support 802.1.x, HTTPS digital certificate
Video digital watermark support
Image digital watermark support
GB35114 support
Secure boot support
Security/encryption intrusion detection support
Power supply type DC12V, AC24, PoE (IEEE 802.3af)
Power consumption: Maximum power consumption: 6.9W, Typical power consumption: 4.9W
Working temperature -30℃~60℃
Working humidity 5%~95% (no condensation)
Lightning protection and surge protection 4kV
Overall machine weight 589g
Packing weight 778g
Overall machine size 78.0mm×62mm×153mm (excluding lens)
Packaging size 230mm×125mm×108mm
Accessories
Lens-DC auto Iris manual focus lens-1/1.8" 8 MegaPixel-3.8-16mm-CS Mount-F1.5 DC-iris
CS-D03816IR(8MP)-HW
(48010128)
Lens-Manual zoom-1/1.7" 4MP-11-50mm-CS mount-F1.5 DC aperture
CS-D1150IR(4MP)
(48010297)
Lens-Manual Zoom-1/1.7" 8MP-11-50mm-CS Port-F1.5 DC IRIS
CS-D1150IR(8MP)
(48010409)
Adapter--5degC-45degC-90V-270V-12V/2A-Chinese plug/DC head
EADAPTE09
(02220294)
Power frequency transformer-207V-253V-3A-24V-130*92*68mm--40degC-50degC
HW-7224AC14D-B
(02220376)
Power frequency transformer-108V-132V-3A-24V-130*92*68mm--40degC-50degC
HW-7224AC14D-A
(02220387)
DC12V 2A Australian standard power adapter
HW-120200A2W
(02220648)
Adapter--20degC-50degC-100V-240V-12.5V/2A-C8 in/2pin out 62368 split from 02220764
HW-125200D1D
(02221473)
Adapter--5degC-45degC-90V-270V-12V/2A-CE/2.1*5.5*9.5 H PLUG-Erp Level 6, Thailand vertical, split from 02220778, non-Huawei LOGO
HW-120200U7W
(02221797)
shield
DTS-15K
(02411379)
shield
DTS-15SHK
(02411380)
shield
DTS-15SHK-50W
(02411381)
shield
FH-5160SHB-HW
(02411754)
shield
DTS-15JCSHK
(02412125)
Barrel machine column bracket
ACC3231
(21154637)
Two-dimensional universal joint
ACC3280
(21154639-001)
Three-dimensional universal joint bracket
ACC3282
(21154640)
Bolt wall mount bracket
ACC3210
(51661JVQ)
Bolt mount
ACC3121
(51661LKS)
Guard, barrel hoisting bracket
ACC3221
(51661LKT)
Small barrel/bolt wall mount bracket
ACC3217
(51661QBT)
