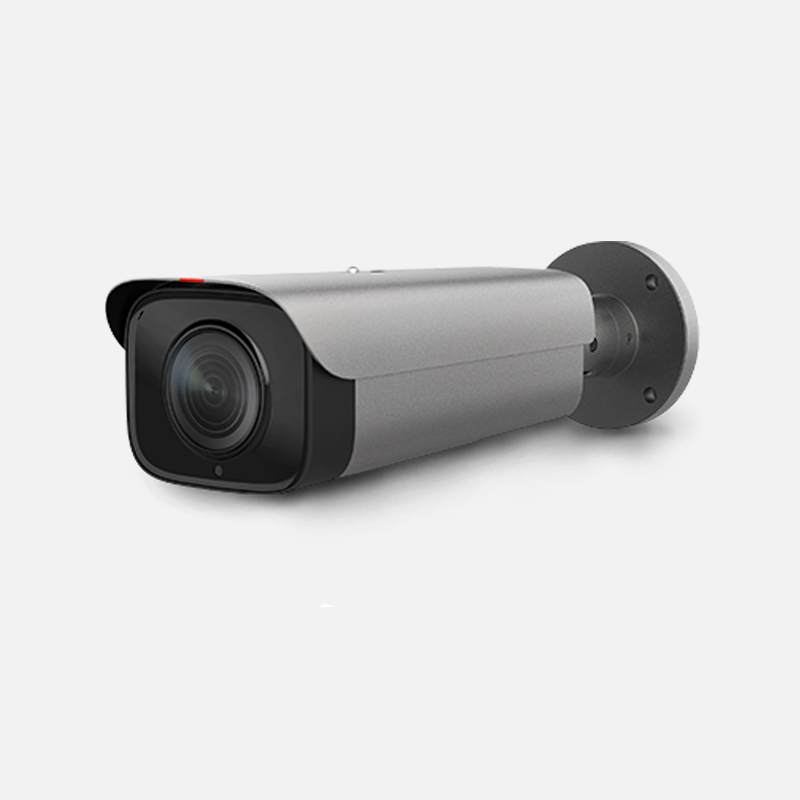

X2221-I 2 million super starlight infrared tube camera
Product Features
Using 1/1.8" progressive scan CMOS
Built-in NPU neural network engine greatly improves the performance of deep learning algorithms
  AI scene adaptation, real-time recognition of scenes, and targeted image optimization
  A machine-non-human hybrid detection algorithm based on deep learning, which can detect 50 targets at the same time
Supports intelligent behavior analysis, audio analysis, and metadata return
Software definition, supports online loading and upgrade of algorithms
Extra265 intelligent encoding saves 70% of storage and bandwidth resources
Detail

Product model X2221-I
camera
Image sensor 1/1.8" 2 million pixel progressive scan CMOS
Effective image size 1920(H)*1080(V)
Minimum illumination color: 0.0004 lux @(F1.2,AGC ON)
Black and white: 0.0001 lux @(F1.2,AGC ON)
Wide dynamic range 120dB
White balance auto/auto tracking/manual
Strong light suppression support
Electronic defog automatic/manual/off
Digital noise reduction supports intelligent adaptive 2D/3D noise reduction
Lens & fill light
Focal length 2.8-12mm
Maximum aperture F1.4
Aperture type P-Iris
Infrared fill light distance 50 meters
Function
Video compression format H.265/H.264/MJPEG
Maximum resolution 1920×1080 (1080P)
Frame rate 60Hz: 60/30/20~1fps; 50Hz: 50/25/20~1fps
Multiple streams and five streams, supporting 1080p dual-channel independent high-definition encoding
Area cropping encoding supports 4-way sub-stream encoding
Intelligent encoding Extra265/264, ROI, TCP intelligent acceleration, stream smoothing, traffic shaping
Front-end access protocol ONVIF Profile S/G/T, GB/T 28181-2011/2016
Network protocol
TCP, UDP, IPv4, IPv6, DHCP, DHCPv6, DNS, ICMP, ICMPv6,
IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL,
NTP, SNMP, 802.1x, QoS, DDNS, SMTP, SSH, TLS
Safe mode username and password authentication, support 802.1x, HTTPS secure access
Media security supports KMC key encryption, code stream AES256 encryption, and digital watermarking.
Alarm linkage Alarm source: switch input/intelligent analysis Alarm linkage target: switch output/preset
Position/cruise track/scan/SD card recording/SD card snapshot/email sending/pre-alarm pre-recording
Smart functions
Behavior analysis: fast movement, items left behind, items removed, line crossing detection, area intrusion, entry/
Leaving the area, loitering detection, people gathering detection, head count, parking detection
Abnormal detection, image quality diagnosis, audio presence/absence detection, audio sudden rise and fall detection, scene change detection
Test, virtual focus detection
Scene adaptation can realize dynamic identification of monitoring scenes and adjust image enhancement algorithms in a targeted manner.
Smart functions
Machine and non-human detection supports classification and capture of motor vehicles, non-motor vehicles and pedestrians
Human body attributes identify 7 attributes including gender, age, clothing style, etc.
Crowd density analysis supports counting the number of people by area in large scenes, and the number of people included in the area can be set.
Personnel quantity level, if the threshold is exceeded, an alarm can be set to be generated.
Queue length detection supports queuing head count, which can count queue length, time and other information.
interface
Network interface: 1 RJ45 Gigabit Ethernet port, supporting 10M/100M/1000M adaptive
Communication serial port 1 half-duplex RS-485 interface
Alarm interface: 2 alarm inputs, 1 alarm output
Audio interface: 1 audio input, 1 audio output
Storage interface: 1 MicroSDHC/MicroSDXC card slot, maximum capacity 256GB
General specifications
Power supply AC24V±25%, PoE++ (IEEE 802.3bt)
Power consumption maximum 30 watts
Working temperature -40℃~60℃
Working humidity 5%~95% (no condensation)
Lightning protection level 6kV lightning protection and surge protection
Protection grade IP67
Anti-riot level IK10
Weight Net weight 2.36 kg, gross weight 3.60 kg
Size equipment 128.7*120*399.9mm; packaging 533*259*146mm
