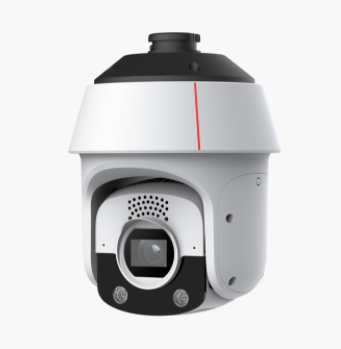

Model D6520-10-Z23-SV
Product Description 1T 2 million dual-light full-color voice AI dome camera
Key specifications
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
Target target detection, target attribute detection
Human body detection
Computing power 1 TOPS
Sensor photosensitive surface size 1/2.7" CMOS
Minimum illumination color: 0.005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0005Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (infrared on)
Lens focal length 5-115mm
Lens viewing angle Horizontal 56.9°(W) ~2.8°(T); Vertical 32.1°(W)~1.6°(T): Viewing angle tolerance ≤5%
Infrared light fill distance 150m
White light fill light distance 30m
Video encoding format MJPEG/H.264/H.265
Video frame rate 60/50/30/25fps can be set
Audio encoding format G.711a/G.711u/G.726/OPUS/AAC
Pan-tilt rotation angle: horizontal 0°～360°, vertical -15°～90°
PTZ horizontal speed Keying speed: 0.1°~70°/S Preset speed: 70°/S
Note:
The low temperature of the gimbal requires speed limit
Enter low temperature speed limit temperature: -20 degrees
Exit low temperature speed limit temperature: -10 degrees
Horizontal speed limit: 30 degrees per second
Vertical speed limit: 20 degrees per second
PTZ vertical speed Keying speed: 0.1~50°/s Preset position speed: 50°/s;
Note:
The low temperature of the gimbal requires speed limit
Enter low temperature speed limit temperature: -20 degrees
Exit low temperature speed limit temperature: -10 degrees
Horizontal speed limit: 30 degrees per second
Vertical speed limit: 20 degrees per second
Ethernet interface supported
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M Ethernet port
Power supply type DC12V
Power consumption: Maximum power consumption: 21.6W, typical power consumption: 5.4W
Working temperature -30℃~60℃ (the fill light is not turned on) -30℃~40℃ (the fill light is turned on)
Working humidity 5%~95% (no condensation)
Protection grade IP66
