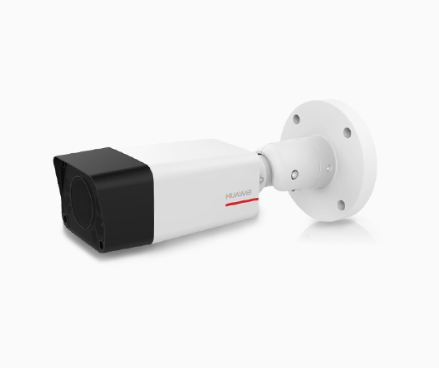

IPC6224-IR IPC6224-VRZ 2 million fixed focus infrared barrel network camera
Compact integrated design, integrated lens, infrared light set and three-axis bracket
Support H.265 encoding format, support dual-channel independent 1080p high-definition encoding
Optional electric zoom lens, supporting zoom and autofocus
IP66 dustproof and waterproof rating ensures long-term reliability for outdoor applications
120dB ultra-wide dynamic range to truly restore detailed information in high-contrast scenes
Intelligent fog penetration to enhance image clarity in foggy scenes
Intelligent infrared, adaptive adjustment of infrared emission power and angle
Supports SEC super error correction, network packet loss images are still smooth
-30ºC ~ 60ºC ultra-wide operating temperature range
±25% ultra-wide operating voltage fluctuation range
Supports DC adapter and PoE hot backup
Detail
Model IPC6224-IR IPC6224-VRZ
Image sensor 1/2.7" 2 million pixel progressive scan CMOS 1/2.7" 2 million pixel progressive scan CMOS
Minimum illumination color: 0.005Lux (F1.4, AGC ON)
Black and white: 0.003Lux (F1.4, AGC ON), 0lux (turn on infrared) Color: 0.005Lux (F1.4, AGC ON)
Black and white: 0.003Lux (F1.4, AGC ON), 0lux (turn on infrared)
Wide dynamic range 120dB 120dB
Focal length 3.6mm, 6mm, 12mm Fixed focus lens 2.8~12mm electric zoom lens, 4.3x optical zoom
Video encoding format H.265/H.264/MJPEG H.265/H.264/MJPEG
Maximum resolution 1920×1080 1920×1080
Power supply PoE (802.3at/af), DC12V±25% (no polarity), supports DC power supply and PoE hot standby PoE (802.3at/af), DC12V±25% (no polarity), supports DC power supply and PoE hot standby
Power consumption Typical 3W, maximum 8W Typical 3.5W, maximum 8W
Protection class IP66 in accordance with IEC 60529 IP66 in accordance with IEC 60529
