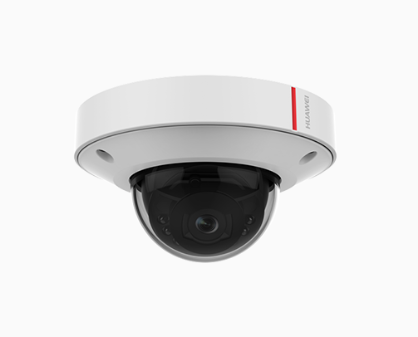

IPC6324-MIR\IPC6324-MIF 2 million mini infrared fixed focus dome camera
Compact structure, concealed design, high integration into the environment
IK10 anti-riot level to prevent video surveillance interruption caused by violent destruction
2.8mm, 3.6mm, 6.0mm fixed focus lenses optional
120dB super wide dynamic range, truly restoring detailed information in strong contrast scenes
Adopt H.265/H.264 encoding and support 1080p dual-channel independent encoding
Intelligent infrared technology, adaptively adjusts infrared emission power and angle
Intelligent fog penetration to enhance image clarity in foggy scenes
Supports SEC super error correction, network packet loss images are still smooth
Support code stream AES encryption
-20℃~60℃ ultra-wide operating temperature range
±25% ultra-wide operating voltage fluctuation range
Supports DC power supply and PoE hot backup
Detail
Model IPC6324-MIR IPC6324-MIF
Image sensor 1/2.7" 2 million pixel progressive scan CMOS
Minimum illumination color: 0.01Lux (F1.4, AGC ON)
Black and white: 0.005Lux (F1.4, AGC ON) 0lux (turn on infrared)
Wide dynamic range 120dB
Focal length 2.8mm, 3.6mm, 6mm optional focus lens
Video encoding format H.265/H.264/MJPEG
Video bit rate 32Kbps~8Mbps
Power supply: PoE (802.3at/af), DC12V±25%, supports DC and PoE hot backup
Power consumption: typical 3.5W, maximum 8W
Lightning protection level: 4kV surge, in accordance with IEC 61000-4-5
Anti-explosion level IK10, in accordance with IEC 62262
