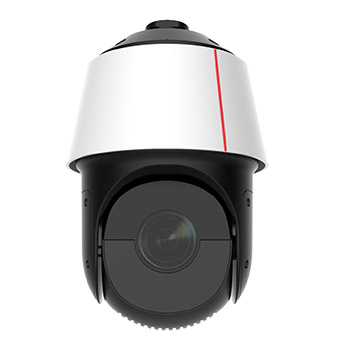

C6650-10-Z33 1T 5 million smart dome camera

Support 1 TOPS computing power;
Supports crowd situation analysis, detection of aircraft and non-human vehicles, vehicle events, and traffic data statistics;
Supports backlight adaptation, fog penetration adaptation, and speed adaptation;
Using 1/2.7" CMOS;
Software definition supports online loading and upgrade of algorithms;
120dB super wide dynamic range, restoring true details in high-contrast scenes;
Key specifications
Vehicle Mainland China plate recognition, body color detection, vehicle model detection
Vehicle event detection: non-occupancy detection, non-occupancy detection, illegal parking detection, retrograde/reversing detection, illegal parking detection
Traffic data statistics: traffic flow statistics, non-motor vehicle flow statistics, pedestrian statistics
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
Machine is not human Machine is not human detection
Chip Hi3516DV300
Computing power 1 TOPS
Memory DDR3 1.0 GB
Flash SPI NAND FLASH 512.0 MB
Sensor photosensitive surface size 1/2.7" CMOS
Minimum illumination color: 0.005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0005Lux (F1.2, AGC ON, 1/30 shutter)
Lens focal length 5-165mm
Lens viewing angle: horizontal: 2.2° (T end) ~ 54.4° (W end); vertical: 1.7° (T end) ~ 41.1° (W end)
Infrared light fill distance 200m
Video encoding format MJPEG/H.264/H.265
Video frame rate 5MP 20fps, resolution less than 5MP 30/25fps can be set
Audio encoding format G.711a/G.711u/G.726/OPUS
Pan-tilt rotation angle: horizontal 0°～360°, vertical -15°～90°
PTZ horizontal speed Keying speed: 0.1~160°/s Preset position speed: 240°/s
PTZ vertical speed Keying speed: 0.1~120°/s Preset speed: 200°/s
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M Ethernet port
Power supply type AC24V,PoE (IEEE 802.3at)
Power consumption: Maximum power consumption: 22W, typical power consumption: 6.5W
Working temperature -30℃~60℃ (the fill light is not turned on) -30℃~40℃ (the fill light is turned on)
Working humidity 5%~95% (no condensation)
Protection grade IP66
Basic parameters
Sensor photosensitive surface size 1/2.7" CMOS
Minimum illumination color: 0.005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0005Lux (F1.2, AGC ON, 1/30 shutter)
Shutter supports slow shutter; slow shutter levels: 1/3, 1/4, 1/8, 1/12, 1/15; non-slow shutter levels: 1/25, 1/30, 1/50, 1/60, 1/90,1/100,1/120,1/125,1/180,1/250,1/350,,1/500,1/725,1/1000,1/1500,1/2000,1 /3000,1/4000,1/6000,1/10000,1/30000,1/100000, custom shutter; default value 1/25;
Day and night mode supported; automatic (ICR)/color/black and white Default automatic Sensitivity high, medium, low Default high Image trigger/internal trigger
Gain control: During manual exposure, a total of 101 steps from 0 to 100 can be set in steps of 1. Default is 0.
White balance automatic/auto tracking/manual/one-key trigger
Digital Noise Reduction 2D/3D Noise Reduction
Wide dynamic range 120dB
Strong light suppression support
Video anti-shake function supported; sensitivity not supported;
Algorithm fog penetration support
Exposure compensation support
Exposure mode support
Signal-to-noise ratio >45dB
Electric focus support
Day and night focus compensation support
Backlight adaptive support
Fog adaptive support
Speed adaptive support
Digital zoom support
Privacy masking support
Lens/fill light
Lens focal length 5-165mm
Maximum aperture F1.6 (W end)-F4.4 (T end)
Lens aperture type Precision aperture (DC-Iris+Hall)
Lens viewing angle: horizontal: 2.2° (T end) ~ 54.4° (W end); vertical: 1.7° (T end) ~ 41.1° (W end)
Built-in infrared light support
Infrared light fill distance 200m
video/audio
Video encoding format MJPEG/H.264/H.265
Number of video encoding channels: three streams
Main stream resolution 2560×1920(5MP), 2560×1440(4MP), 2048×1536(3MP), 1920×1080(1080P), 1280×720(720P)
Sub-stream resolution Sub-stream one: 720×576 (PAL), 720×480 (NTSC), 352×288 (PAL), 352×240 (NTSC); Sub-stream two: 352×288 (PAL), 352×240(NTSC)
Video frame rate 5MP 20fps, resolution less than 5MP 30/25fps can be set
Video bit rate only for H.264 and H.2651080P~4K 512Kbps ~ 16Mbps720P 384Kbps ~ 8MbpsD1 256K ~ 4MbpsCIF 32K ~ 1Mbps
Smart encoding Extra265/264
ROI (Region of Interest Coding) Each channel supports 4 groups. The quality of ROI relative to non-ROI is adjustable from 0 to 10 in steps of 1.
Audio encoding format G.711a/G.711u/G.726/OPUS
Audio sampling rate G.711a/G.711u/G.726: 8K OPUS: 8K/12K/16K/24K/48K
Audio bit rate G.711a/G.711u: 64kbps; G.726: 16, 24, 32, 40kbps can be set; OPUS: 16/24/32/40/64/96/128/160/192/224/256 /288Kbps can be set
Built-in PTZ
Pan-tilt rotation angle: horizontal 0°～360°, vertical -15°～90°
PTZ horizontal speed Keying speed: 0.1~160°/s Preset position speed: 240°/s
PTZ vertical speed Keying speed: 0.1~120°/s Preset speed: 200°/s
Watch mode support
Cruise track support
Preset positions support 256 (including 1 guard position)
Guard position supports 1 guard position
intelligent
Vehicle Mainland China plate recognition, body color detection, vehicle model detection
Vehicle event detection: non-occupancy detection, non-occupancy detection, illegal parking detection, retrograde/reversing detection, illegal parking detection
Traffic data statistics: traffic flow statistics, non-motor vehicle flow statistics, pedestrian statistics
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
Machine is not human Machine is not human detection
interface
SD interface supports maximum capacity. Provides MicroSD card slot, supports MicroSDHC/MicroSDXC, and supports memory cards with a maximum capacity of 256GB.
Audio input interface supported (1 LINE IN or 1 external MIC)
Audio output interface supports (1 LINE OUT)
Switching interface supported, 2 inputs/1 output
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M Ethernet port
Network docking
Access protocol GB/T 28181 (2011, 2016 protocol specifications), SDK (private protocol), Rest API (private protocol), GA/T 1400
Protocols supported by IPV4: TCP, UDP, IPv4, DHCP, DNS, ICMP, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/V3), 802.1x, QoS,SMTP,PPPOE
IPV6 supported protocols HTTPS, RTP, RTCP, RTSP, Onvif, IPv6, ICMPv6, DHCPv6
Business constraints supported by IPV6 Web page: live (static IPV6), video (static IPV6), IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration
Onvif: live (static IPV6), video (static IPV6), IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration, Probe service not supported
Note:
1. Does not support IPV6 multicast
2. Does not support DNS
3. Does not support IP conflict detection
Safety
User permissions are divided into 3 levels: administrator, senior operator, and ordinary operator
Safe mode Username and password authentication, support 802.1.x, HTTPS digital certificate
GB35114 supported
Secure boot support
Security/encryption intrusion detection support

Accessories
Power frequency transformer-108V-132V-3A-24V-130*92*68mm--40degC-50degC
HW-7224C14D-A
(02220387)

Adapter--40degC-65degC-90V-290V-56.0V/1.61A-C14/RJ45

AD-560161T0E

(02221409)

Power frequency transformer-single-230V-230V-2A-2A-24V-24V-48W-50degC-138*77*69mm--40degC-60degC

HW-4824C14D-E

(09020548)
