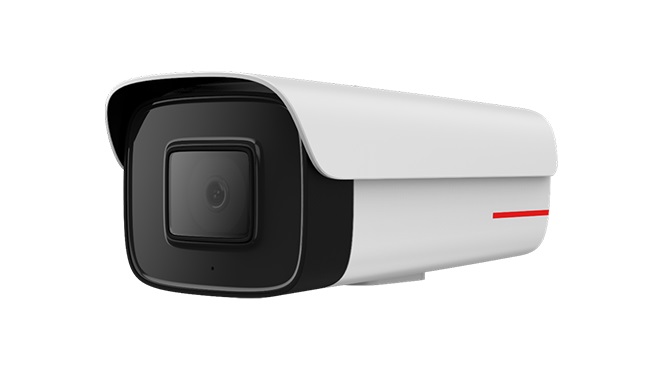

M2141-10-EL (8-32mm) 4 million soft light AI tube camera
Sensor maximum image size 4MP 2560(H)*1440(V)
Sensor photosensitive surface size 1/1.8" CMOS
Shutter supports slow shutter; slow shutter levels: 1/3, 1/4, 1/8, 1/12, 1/15; non-slow shutter levels: 1/25, 1/30, 1/50, 1/60, 1/90,1/100,1/120,1/125,1/180,1/250,1/350,,1/500,1/725,1/1000,1/1500,1/2000,1 /3000,1/4000,1/6000,1/10000,1/30000,1/100000,custom shutter; mixed pedestrian card level: 1/25,1/30,1/50,1/60,1/ 90,1/100,1/120,1/125,1/180,1/250,1/350,,1/500,1/725,1/1000,1/1500,1/2000,1/3000 ,1/4000,1/6000,1/10000,1/30000,1/100000,custom shutter; mixed micro card level: 1/100,1/120,1/125,1/180,1/250 ,1/350,,1/500,1/725,1/1000,1/1500,1/2000,1/3000,1/4000,1/6000,1/10000,1/30000,1/100000, Custom shutter; default value 1/25; mixed mode: does not support slow shutter, human card: 1/100, micro card: 1/250; single card: 1/100; single micro card: 1/250; behavior Analysis: 1/25;
Day and night mode supported; automatic (ICR)/color/black and white/timing Default color Sensitivity high, medium, low Default high Image trigger/internal trigger
Gain control: During manual exposure, a total of 101 steps from 0 to 100 can be set in steps of 1. Default is 0.
White balance automatic/manual/one-key trigger
Digital Noise Reduction 2D/3D Noise Reduction
Wide dynamic range 120db
Strong light suppression support
Video anti-shake function supported; sensitivity not supported;
Algorithm fog penetration support
Exposure compensation support
Exposure mode support
Signal-to-noise ratio >45dB
Electric focus support
Day and night focus compensation support
Backlight adaptive support
Fog adaptive support
Corridor mode supported
Mirror mode supports image mirroring (horizontal mirroring, vertical mirroring, horizontal and vertical mirroring)
Digital zoom support
Privacy masking support
Accessories
Adapter--5degC-45degC-90V-270V-12V/2A-Chinese plug/DC head
EADAPTE09
(02220294)
DC12V 2A Australian standard power adapter
HW-120200A2W
(02220648)
Adapter--40degC-65degC-90V-264V-12V/2A-3PIN IN/2PIN OUT
HW-24-12AC14D
(02220883)
Adapter--5degC-45degC-150V-264V-12V1.5A-2 PIN/2.1*5.5*9.5 H PLUG-CCC 2PIN
HW-120150C3W
(02220931)
Adapter--20degC-50degC-100V-240V-12.5V/2A-C8 in/2pin out 62368 split from 02220764
HW-125200D1D
(02221473)
Adapter--5degC-45degC-90V-270V-12V/2A-CE/2.1*5.5*9.5 H PLUG-Erp Level 6, Thailand vertical, split from 02220778, non-Huawei LOGO
HW-120200U7W
(02221797)
Small tube two-dimensional universal joint
ACC3285
(21155307)
Small tube column bracket
ACC3233
(21155308)
Bolt mount
ACC3121
(51661LKS)
Guard, barrel hoisting bracket
ACC3221
(51661LKT)
Small barrel/bolt wall mount bracket
ACC3217
(51661QBT)
