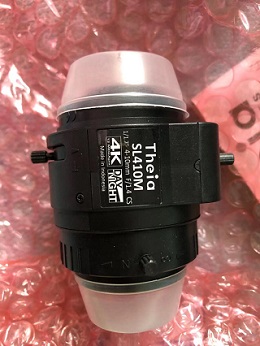

Theia SL410 4K高清镜头 4Klens

品牌：Theia
型号：SL410
镜头lens：4-10mm CS-mount, C-mount, or D25 mount

详情

Theia SL410 高清镜头

4-10mm varifocal
1/2.3" to to 1/1.7" sensors (Up to 9.4mm diagonal)
4K, 12 megapixel resolution
IR corrected for Day/Night
Compact 64mm TTL length
CS-mount, C-mount, D25 mount available

TL410

Lens model	SL410 lenses	TL410 lenses
Iris type	DC autoiris, P-iris, or Manual iris	DC autoiris or P-iris
Motors	Manual zoom and focus	Motorized zoom and focus, iris, IRC, and limit switch
Focal Length	4-10mm varifocal
IR correction	IR corrected for Day/Night cameras	IR corrected with internal IR cut filter
Mount type	CS-mount, C-mount, or D25 mount
F/#	F/1.4 to closed
Resolution	4K, 12 megapixels
Minimum focus	1.0m
Lens size	51.5mm from mount	64mm TTL
Technical specifications	Download pdf
Drawing	SL410A drawing	TL410 drawing

Lens Field of view

Sensor Size	1/2.3"	1/1.8"	1/1.7"
Field of view (H)	90° - 36°	110° - 43°	112° - 43°
Field of view (V)	66° - 27°	71° - 29°	81° - 32°
Field of view (D)	117° - 45°	140° - 52°	148° - 54°SL410SL410
