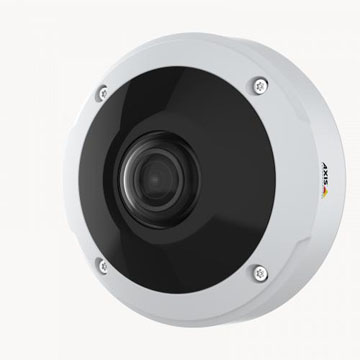

AXIS M3057-PLR Mk II 安讯士全景网络摄像机
Part number for ordering
AXIS M3057-PLR Mk II AR, AU, BR, EU, JP, KR, UK, US
02457-001
Technical specifications
DATASHEET (PDF)
Models: AXIS M3057-PLR Mk II
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/1.8
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.16 lux
Min illumination/ light sensitivity (B/W) 0 lux
Video
Property description Property value
Max video resolution 2016x2016
Max frames per second 50/60
Day and Night functionality Yes
Electronic image stabilization –
Lens
Property description Property value
Focal length 1.56 mm
Horizontal field of view 183 °
Vertical field of view 183 °
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG
Cables & connectors
AXIS Connector A 4-pin 2.5 Straight, 10 pcs
I/O connector for Axis products
Included with this product
Gasket C M20
Gasket C M20
Included with this product
Edge storage
AXIS Surveillance Card 1 TB
High endurance microSDXC™ card
Recommended for this product
AXIS Edge storage suveillance card 128 GB from the front
AXIS Surveillance Card 128 GB
High endurance microSDXC™ card
Recommended for this product
AXIS Surveillance Card 256 GB
High endurance micro SDXC™ card
Recommended for this product
AXIS Surveillance Card 512 GB
High endurance microSDXC™ card
Recommended for this product
AXIS Surveillance Card 64 GB
High endurance microSDXC™ card
Recommended for this product
Housings & cabinets
AXIS M30-PLVE Clear Dome A
Hard-coated clear dome
Included with this product
Mounts
AXIS P33 Mounting Bracket
For junction boxes and mounting accessories
AXIS T94K01D Pendant Kit
Mounting on 1.5″ NPS threaded bracket
AXIS T94P01B Corner Bracket
Mounting on corners
AXIS T94R01B Corner Bracket
For outdoor and indoor installations
AXIS T94S01P Conduit Back Box
IP66/IP67 rated outdoor back box with conduit entrance
AXIS T94T02S Mounting Bracket
Included with this product
AXIS TP3603 Conduit Back Box
For flexible indoor installations
Switches
AXIS D8208-R Industrial PoE++ Switch
Managed, 8-port industrial PoE++ switch
AXIS T8504-R Industrial PoE Switch
Managed, industrial PoE switch
Tools & extras
AXIS 4-in-1 Security Screwdriver Kit
Convenient tool for installing Axis products
AXIS Safety Wire 3 m
Versatile safety wire
AXIS T8415 Wireless Installation Tool
Simplicity in your hand
