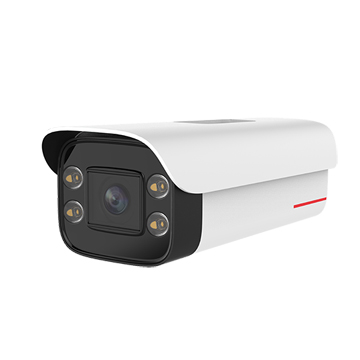

M2120-EFI(6mm) 1T 2MP infrared face capture tube camera, fixed focus
Support 1 TOPS computing power;
Face, human body;
Using 1/2.7" CMOS;
120dB super wide dynamic range, restoring true details in high-contrast scenes;

Chip Hi3516DV300
Computing power 1 TOPS
Memory DDR3 0.2500 GB
Flash SPI NAND FLASH 256.0 MB
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/2.7"
Minimum illumination color: 0.005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0025Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (turn on infrared)
Lens focal length 6mm
Lens viewing angle Horizontal: 52.7°; Vertical: 30.3°
Infrared light fill distance 50m
Video encoding format MJPEG/H.264/H.265
face face detection
Human body detection
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M Ethernet port
Power supply type DC12V
Power consumption: Maximum power consumption: 7W, typical power consumption: 5W
Working temperature -30℃~60℃
Working humidity 5%~95% (no condensation)
Protection grade IP67
