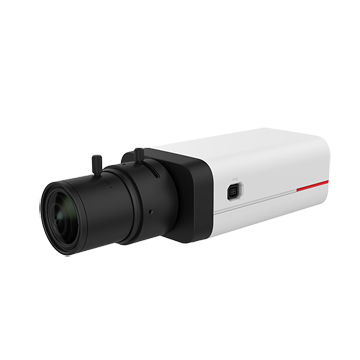

M1241-Q 2T 4 million multi-algorithm box camera
Support 2 TOPS computing power;
Supports heat maps, multi-algorithm switching, behavior analysis, crowd situation analysis, face, human body, machine and non-human, vehicle, vehicle event detection, and traffic data statistics;
Supports backlight adaptation, fog penetration adaptation, and speed adaptation;
Using 1/1.8" CMOS;
Software definition supports online loading and upgrade of algorithms;
Digital wide dynamic range and super wide dynamic range restore true details in high-contrast scenes;
Support multi-algorithm switching;

Chip Hi3519AV100
Computing power 2 TOPS
Memory DDR4 2.0 GB
Flash SPI NAND FLASH 512.0 MB
Sensor maximum image size 4MP 2560(H)*1440(V)
Sensor photosensitive surface size 1/1.8"
Minimum illumination color: 0.001Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter)
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Heat map support
Vehicle Mainland China plate recognition, license plate enhancement, body color detection, car model detection, car model detection
Vehicle event detection: non-occupancy detection, non-occupancy detection, illegal parking detection, retrograde/reversing detection
Traffic data statistics: traffic flow statistics, non-motor vehicle flow statistics, pedestrian statistics
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
Face face detection, face capture enhancement, face attribute detection
Human body detection, human attribute detection
Non-motor vehicle traffic statistics: machine and non-person detection, pedestrian detection, motor vehicle detection, cyclist attribute detection
Audio port support
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M Ethernet port
Power supply type AC24V, DC12V, PoE (802.3af)
Power consumption: Maximum power consumption: 5.8W, typical power consumption: 4.4W
Working temperature -30℃~60℃ (with a protective cover, it meets -40℃~60℃) (If the built-in fill light of the protective cover is >40℃, the fill light is not allowed to be turned on. If used in this environment, damage or reduced lifespan will be exempted)
Working humidity 5%~95% (no condensation)
