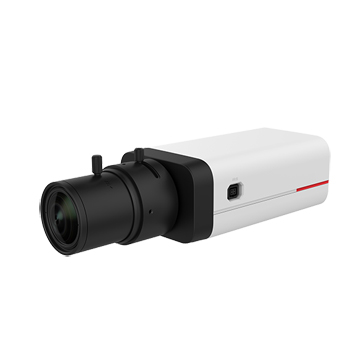

M1220 2 million universal scene monitoring gun
Behavior analysis, faces;
Using 1/1.8" CMOS;
120dB super wide dynamic range, restoring true details in high-contrast scenes;

Chip Hi3519V101
Memory DDR3 1.0 GB
Flash SPI NAND FLASH 256.0 MB
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/1.8"
Minimum illumination color: 0.0002Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter)
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Behavior analysis: fast movement detection, legacy detection, removal detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Face face attribute detection
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M/1000M adaptive Ethernet port
Optical network interface 1 SFP slot
Power supply type DC12V, AC24V, PoE (IEEE 802.3at)
Power consumption: Maximum power consumption: 8W, Typical power consumption: 5W
Working temperature -20℃~50℃ (white box design specification), -20℃~60℃ (black box acceptance)
Working humidity 5%~95% (no condensation)

Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/1.8"
Minimum illumination color: 0.0002Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter)
Shutter 1/3s ~1/68250s
Day and night mode automatic (ICR)/color/black and white
Gain control: During manual exposure, a total of 101 steps from 0 to 100 can be set in steps of 1. Default is 0.
White balance automatic/auto tracking/manual/one-key trigger
Digital Noise Reduction 2D/3D Noise Reduction
Wide dynamic range 120dB
Strong light suppression support
Video anti-shake support
Algorithm fog penetration support
Exposure compensation support
Exposure mode support
Signal-to-noise ratio >45dB
Electric focus support
Sound and light assisted focus support
Corridor mode supported
Image correction supports image mirroring (horizontal mirroring, vertical mirroring, horizontal and vertical mirroring)
Privacy masking support

Video encoding format MJPEG/H.264/H.265
Number of video encoding channels: five streams
Main stream resolution 1920×1080(1080P), 1280×720(720P)
Sub-stream resolution Sub-stream one: 1920×1080 (1080P), 1280×720 (720P), 720×576 (PAL), 720×480 (NTSC); Sub-stream two: 1280×720 (720P), 720×576(PAL), 720×480(NTSC), 352×288(PAL), 352×240(NTSC); Sub-stream three: 720×576(PAL), 720×480(NTSC), 352×288 (PAL), 352×240 (NTSC); Sub-stream four: 720×576 (PAL), 720×480 (NTSC), 352×288 (PAL), 352×240 (NTSC)
Video frame rate: The acquisition frame rate can be set to 20~1fps. In addition, when the acquisition frame rate is 60/50fps, half of the acquisition frame rate can also be set.
Video bit rate only for H.264 and H.265 1080P 512Kbps ~ 16Mbps 720P 384Kbps ~ 8Mbps D1 256K ~ 4Mbps CIF 32K ~ 1Mbps
Smart encoding Extra265/264
ROI (Region of Interest Coding) Each channel supports 4 groups. The quality of ROI relative to non-ROI is adjustable from 0 to 10 in steps of 1.
Audio encoding format G.711a/G.711u/G.726/OPUS
Audio sampling rate G.711a/G.711u/G.726: 8K OPUS: 8K/12K/16K/24K/48K
Audio bit rate G.711a/G.711u: 64kbps; G.726: 16, 24, 32, 40kbps can be set; OPUS: 16/24/32/40/64/96/128/160/192/224/256 /288Kbps can be set

Watch mode support
Cruise track support
Guard position support
Geolocation information support
Azimuth information: manual calibration, range: 0°~360°, true north is 0°
Scan mode Horizontal scan

Behavior analysis: fast movement detection, legacy detection, removal detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Face face attribute detection
Audio anomaly detection, audio presence/absence detection, audio sudden rise and drop detection
SD interface supports maximum capacity. Provides MicroSD card slot, supports MicroSDHC/MicroSDXC, and supports memory cards with a maximum capacity of 256GB.
Analog video interface support
Audio input interface supported (1 LINE IN or 1 external MIC)
Audio output interface supports (1 LINE OUT)
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M/1000M adaptive Ethernet port
Optical network interface 1 SFP slot
Optoelectronic serial interface support
GPON interface support
GPON interface description Supported, matched with SmartAX MA5671A

Protocols supported by IPV4: TCP, UDP, IPv4, IPv6, DHCP, DHCPv6, DNS, ICMP, ICMPv6, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/ V3), 802.1x, QoS, DDNS, SMTP Note: DDNS adopts peanut shell solution
IPV6 supported protocols HTTPS, RTP, RTCP, RTSP, SSH, Onvif
Business constraints supported by IPV6 only support: Web page: live broadcast, recording, IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration Onvif: live broadcast, recording, IPv6 IP (including static IP, routing announcement) configuration, DHCPv7 configuration, Probe service is not supported
Access protocol ONVIF, SDK (private protocol)

User permissions are divided into 3 levels: administrator, senior operator, and ordinary operator
Safe mode Username and password authentication, support 802.1.x, HTTPS digital certificate
Video digital watermark support

Power supply type DC12V, AC24V, PoE (IEEE 802.3at)
Power consumption: Maximum power consumption: 8W, Typical power consumption: 5W
Working temperature -20℃~50℃ (white box design specification), -20℃~60℃ (black box acceptance)
Working humidity 5%~95% (no condensation)
Lightning protection and surge protection 6kV
Overall machine weight 0.5kg
Packing weight 0.7kg
Overall machine size 77.9mm×62.5mm×149.2mm (excluding lens)
Packaging size 228mm×123mm×105mm

Accessories

Lens-DC auto Iris manual focus lens-1/1.8" 8 MegaPixel-3.8-16mm-CS Mount-F1.5 DC-iris
CS-D03816IR(8MP)-HW
(48010128)

Lens-DC auto Iris manual focus lens-1/1.8" 3 MegaPixel-12-50mm-CS Mount-F1.5 DC-iris
HV1250D.IR-B(3MP)
(48010129)

Lens-DC auto Iris manual focus lens-1/1.8" 6 MegaPixel-3.6-10mm-CS Mount-F1.8 DC-iris
CS-D03610IR(6MP)-HW
(48010130)

DC12V 2A European standard power adapter
EADAPTE01

DC12V 2A British standard power adapter
EADAPTE02

DC12V 2A American standard power adapter
EADAPTE08

Adapter--5degC-45degC-90V-270V-12V/2A-Chinese plug/DC head
EADAPTE09

AC24V 3A power adapter
HW-7224C14D-B

AC24V 3A power adapter
HW-7224C14D-A
DC12V 2A Australian standard power adapter
HW-120200A2W

DC12.5V 2A power adapter
HW-125200D1D

shield
DTS-15K

shield
DTS-15SHK

shield
DTS-15SHK-50W

Bolt indoor/outdoor hoisting bracket
DTS-07H

Bolt indoor/outdoor wall mount bracket
DTS-12C

universal joint
DTS-13C

Bolt guard hoisting bracket
DTS-06C

Bolt barrel column mounting bracket
DTS-11C

Three-dimensional universal joint bracket

ACC-B511-D
(02411638)

Barrel machine column bracket
ACC3231
(21154637)

Bolt wall mount bracket
ACC3211
(51661JVQ)
