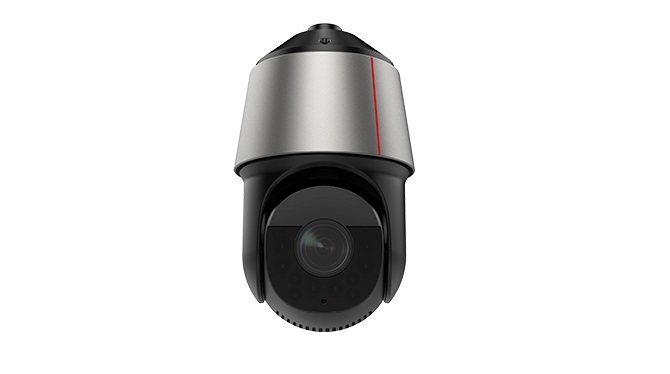

X6721-GZ37 4T 2 million super starlight infrared dome camera
Support 4 TOPS computing power;
Supports heat maps, behavior analysis, crowd situation analysis, face, human body, machine and non-human, vehicle, vehicle event detection, and traffic data statistics;
Supports backlight adaptation, fog penetration adaptation, and speed adaptation;
Using 1/1.8" CMOS;
Software definition supports online loading and upgrade of algorithms;
120dB super wide dynamic range, restoring true details in high-contrast scenes;

Chip Hi3559AV100
Computing power 4 TOPS
Memory DDR4 2.0 GB
Flash SPI NAND FLASH 512.0 MB
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/1.8"
Minimum illumination color: 0.0005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter)
Lens focal length 5.6-208mm
Lens viewing angle Theoretical value - infinity: Horizontal: 2.02° (T end) ~ 59° (W end); Vertical: 1.14° (T end) ~ 34.9° (W end); Actual measurement value - 4M Actual measurement: Horizontal: 2.59°(T end)~59°(W end); vertical: 1.4°(T end)~34.9°(W end)
Infrared light fill distance 200m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Pan/tilt rotation angle Horizontal 0°~360° Vertical -20°~90°
PTZ horizontal speed Manual speed range 0.1°~240°/s PTZ control accuracy 0.1° Preset position maximum speed 240°/s
PTZ vertical speed Manual speed range 0.1°~200°/s PTZ control accuracy 0.1° Preset position maximum speed 200°/s
Heat map support
Vehicle Mainland China plate recognition, license plate enhancement, body color detection, car model detection, car model detection
Vehicle event detection: non-occupancy detection, non-occupancy detection, illegal parking detection, retrograde/reversing detection, illegal parking detection
Traffic data statistics: traffic flow statistics, non-motor vehicle flow statistics, pedestrian statistics
Behavior analysis: rapid movement detection, removal detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
Face face detection, face capture enhancement, face attribute detection
Human body detection, human attribute detection
Non-motor vehicle traffic statistics: machine and non-person detection, pedestrian detection, motor vehicle detection, cyclist attribute detection
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M Ethernet port
Power supply type AC24V,POE(IEEE 802.3bt)
Power consumption: Maximum power consumption: 50.6W, typical power consumption: 17.8W
Working temperature -40℃~60℃
Working humidity 5%~95% (no condensation)
Protection grade IP66
Anti-riot IK10
