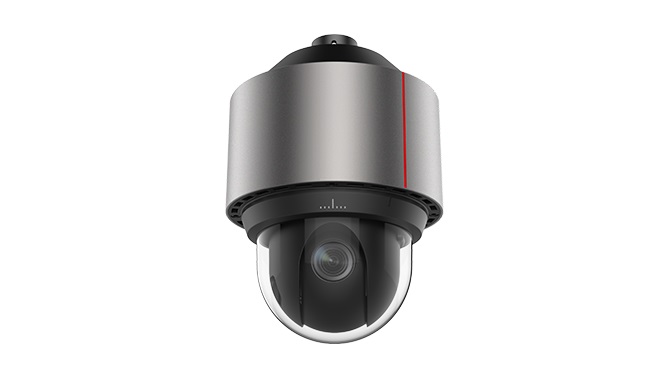

X6621-Z30 4T 2 million starlight dome camera
Support 4 TOPS computing power;
Supports heat maps, behavior analysis, crowd situation analysis, face, human body, machine and non-human, vehicle, vehicle event detection, and traffic data statistics;
Supports backlight adaptation, fog penetration adaptation, and speed adaptation;
Using 1/2.8" CMOS;
Software definition supports online loading and upgrade of algorithms;
120dB super wide dynamic range, restoring true details in high-contrast scenes;

Chip Hi3559AV100
Computing power 4 TOPS
Memory DDR4 2.0 GB
Flash SPI NAND FLASH 512.0 MB
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/2.8"
Minimum illumination color: 0.0005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0002Lux (F1.2, AGC ON, 1/30 shutter)
Lens focal length 5-150mm
Lens viewing angle: Horizontal: 2.1° (T end) ~ 58.3° (W end); Vertical: 1.2° (T end) ~ 34° (W end)
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Pan/tilt rotation angle Horizontal 0°~360° Vertical -20°~90°
Pan-tilt horizontal speed Manual speed range 0.1°~450°/s Pan-tilt control accuracy 0.1° Preset position maximum speed 450°/s"
PTZ vertical speed Manual speed range 0.1°~400°/s PTZ control accuracy 0.1° Preset position maximum speed 400°/s"
Heat map support
Vehicle Mainland China plate recognition, license plate enhancement, body color detection, car model detection, car model detection
Vehicle event detection: non-occupancy detection, non-occupancy detection, illegal parking detection, retrograde/reversing detection, illegal parking detection
Traffic data statistics: traffic flow statistics, non-motor vehicle flow statistics, pedestrian statistics
Behavior analysis: rapid movement detection, removal detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
Face face detection, face capture enhancement, face attribute detection
Human body detection, human attribute detection
Non-motor vehicle traffic statistics: machine and non-person detection, pedestrian detection, motor vehicle detection, cyclist attribute detection
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M/1000M adaptive Ethernet port
Optical network interface 1 SFP slot
Power supply type AC24V,POE(IEEE 802.3bt)
Power consumption: Maximum power consumption: 39W, typical power consumption: 16.2W
Working temperature -40℃~55℃
Working humidity 5%~95% (no condensation)
Protection grade IP66
Anti-riot IK10

Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/2.8"
Minimum illumination color: 0.0005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0002Lux (F1.2, AGC ON, 1/30 shutter)
Shutter 1/3s ~1/68250s
Day and night mode automatic (ICR)/color/black and white
Gain control: During manual exposure, a total of 101 steps from 0 to 100 can be set in steps of 1. Default is 0.
White balance automatic/auto tracking/manual/one-key trigger
Digital Noise Reduction 2D/3D Noise Reduction
Wide dynamic range 120dB
Strong light suppression support
Video anti-shake support
Algorithm fog penetration support
Exposure compensation support
Exposure mode support
Signal-to-noise ratio >45dB
Electric focus support
Day and night focus compensation support
Backlight adaptive support
Fog adaptive support
Speed adaptive support
Distortion correction support
Image correction supports image mirroring (horizontal mirroring, vertical mirroring, horizontal and vertical mirroring)
Digital zoom support
Privacy masking support

Video encoding format MJPEG/H.264/H.265
Number of video encoding channels: five streams
Main stream resolution 1920×1080(1080P), 1280×720(720P)
Sub-stream resolution Sub-stream one: 1920×1080 (1080P), 1280×720 (720P), 720×576 (PAL), 720×480 (NTSC); Sub-stream two: 1280×720 (720P), 720×576(PAL), 720×480(NTSC), 352×288(PAL), 352×240(NTSC); Sub-stream three: 720×576(PAL), 720×480(NTSC), 352×288 (PAL), 352×240 (NTSC); Sub-stream four: 720×576 (PAL), 720×480 (NTSC), 352×288 (PAL), 352×240 (NTSC)
Video frame rate 60/50/30/25fps can be set
Video bit rate only for H.264 and H.265 1080P 512Kbps ~ 16Mbps 720P 384Kbps ~ 8Mbps D1 256K ~ 4Mbps CIF 32K ~ 1Mbps
Smart encoding Extra265/264
ROI (Region of Interest Coding) Each channel supports 4 groups. The quality of ROI relative to non-ROI is adjustable from 0 to 10 in steps of 1.
Audio encoding format G.711a/G.711u/G.726/OPUS
Audio sampling rate G.711a/G.711u/G.726: 8K OPUS: 8K/12K/16K/24K/48K
Audio bit rate G.711a/G.711u: 64kbps; G.726: 16, 24, 32, 40kbps can be set; OPUS: 16/24/32/40/64/96/128/160/192/224/256 /288Kbps can be set

Pan/tilt rotation angle Horizontal 0°~360° Vertical -20°~90°
Pan-tilt horizontal speed Manual speed range 0.1°~450°/s Pan-tilt control accuracy 0.1° Preset position maximum speed 450°/s"
PTZ vertical speed Manual speed range 0.1°~400°/s PTZ control accuracy 0.1° Preset position maximum speed 400°/s"
Watch mode support
Cruise track support
Power-off memory position supports zoom position memory before power-off (stay at the last position for no less than 10 seconds)
Preset positions support 256 (including 1 guard position)
Guard position supports 1 guard position
Preset video freezing support
Automatic positioning, fast positioning/3D positioning, horizontal: deviation <1 degree; vertical: deviation <3 degrees
Geolocation information support
Lens angle information support
Azimuth information: manual calibration, range: 0°~360°, true north is 0°
Scan mode pattern scan, limit scan, horizontal scan, vertical scan, random scan, frame scan, panoramic scan

Heat map support
Vehicle Mainland China plate recognition, license plate enhancement, body color detection, car model detection, car model detection
Vehicle event detection: non-occupancy detection, non-occupancy detection, illegal parking detection, retrograde/reversing detection, illegal parking detection
Traffic data statistics: traffic flow statistics, non-motor vehicle flow statistics, pedestrian statistics
Behavior analysis: rapid movement detection, removal detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
Face face detection, face capture enhancement, face attribute detection
Human body detection, human attribute detection
Non-motor vehicle traffic statistics: machine and non-person detection, pedestrian detection, motor vehicle detection, cyclist attribute detection
Audio anomaly detection, audio presence/absence detection, audio sudden rise and drop detection

SD interface supports maximum capacity. Provides MicroSD card slot, supports MicroSDHC/MicroSDXC, and supports memory cards with a maximum capacity of 256GB.
Audio input interface supported (1 LINE IN or 1 external MIC)
Audio output interface supports (1 LINE OUT)
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M/1000M adaptive Ethernet port
Optical network interface 1 SFP slot
Optoelectronic serial interface support

Protocols supported by IPV4: TCP, UDP, IPv4, IPv6, DHCP, DHCPv6, DNS, ICMP, ICMPv6, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/ V3), 802.1x, QoS, DDNS, SMTP Note: DDNS adopts peanut shell solution
IPV6 supported protocols HTTPS, RTP, RTCP, RTSP, SSH, Onvif
Business constraints supported by IPV6 Web page: live broadcast, recording, IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration Onvif: live broadcast, recording, IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration, Probe is not supported Business Note: IPV6 multicast is not supported
Access protocol ONVIF, SDK (private protocol), Rest API (private protocol), GA/T 1400, DB3311

User permissions are divided into 3 levels: administrator, senior operator, and ordinary operator
Safe mode Username and password authentication, support 802.1.x, HTTPS digital certificate
Video digital watermark support
Image digital watermark support
GB35114 support
Secure boot support
Security/encryption intrusion detection support

Power supply type AC24V,POE(IEEE 802.3bt)
Power consumption: Maximum power consumption: 39W, typical power consumption: 16.2W
Working temperature -40℃~55℃
Working humidity 5%~95% (no condensation)
Lightning protection and surge protection 6kV
Protection grade IP66
Anti-riot IK10
Overall machine weight 4.5kg
Packing weight 6.1kg
Overall machine size 220mm×220mm×320.1mm
Packaging size 295mm×295mm×510mm

Accessories

Adapter--25degC-60degC-90V-264V-56V/1.5A-C8/RI45-POE ADAPTER
W0ACPSE11

AC24V 3A power adapter
HW-7224C14D-B

AC24V 3A power adapter
HW-7224C14D-A
(02220387)

Ball machine lifting bracket
ACC2205H

V2R2C00 half cover ball embedded bracket
DTS-14C

Ball machine wall mount bracket
DTS-10C
