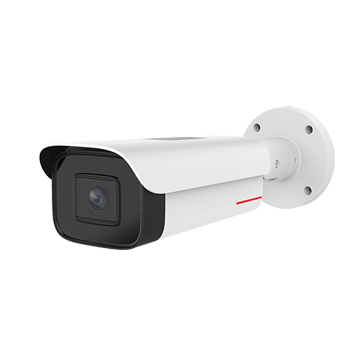

M2280-I 8 million starlight level infrared tube camera
Behavior analysis, faces;
Using 1/1.8" CMOS;
120dB super wide dynamic range, restoring true details in high-contrast scenes;

Chip Hi3519V101
Memory DDR3 1.0 GB
Flash SPI NAND FLASH 256.0 MB
Sensor maximum image size 4K 3840(H)*2160(V)
Sensor photosensitive surface size 1/1.8"
Minimum illumination color: 0.001Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0002Lux (F1.2, AGC ON, 1/30 shutter)
Lens focal length 2.8-12mm
Lens viewing angle: horizontal: 33.3° (T end) ~ 92.18° (W end); vertical: 18.7° (T end) ~ 48.34° (W end)
Infrared light fill distance 50m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Behavior analysis: fast movement detection, legacy detection, removal detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Face face attribute detection
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M/1000M adaptive Ethernet port
Power supply type AC24V, DC12V, POE (IEEE 802.3at)
Power consumption: Maximum power consumption: 16W, typical power consumption: 4W
Working temperature -40℃~60℃(fill light turned off) -40℃~40℃(fill light turned on)
Working humidity 5%~95% (no condensation)
Protection grade IP67
Anti-riot IK10
