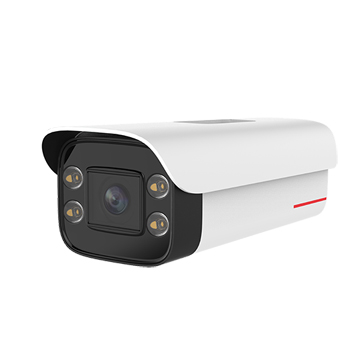

M2241-EFL 2T 4 million face capture tube camera
Support 2 TOPS computing power;
Supports heat maps, behavior analysis, faces, and human bodies;
Supports backlight adaptation and fog penetration adaptation;
Using 1/1.8" CMOS;
Software definition supports online loading and upgrade of algorithms;
120dB super wide dynamic range, restoring true details in high-contrast scenes;

Chip Hi3519AV100
Computing power 2 TOPS
Memory DDR4 1.0 GB
Flash SPI NAND FLASH 512.0 MB
Sensor maximum image size 4MP 2560(H)*1440(V)
Sensor photosensitive surface size 1/1.8"
Minimum illumination color: 0.001Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter)
Lens focal length 12-55mm
Lens viewing angle: horizontal: 9.2° (T end) ~ 40.3° (W end); vertical: 5.3° (T end) ~ 22.8° (W end)
White light fill light distance 20m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Heat map support
Behavior analysis Cross-line detection
Face face detection, face capture enhancement, face attribute detection
Human body detection
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Power supply type AC24V
Power consumption: Maximum power consumption: 20.3W, typical power consumption: 3.6W
Working temperature -40℃~60℃(fill light turned off) -40℃~40℃(fill light turned on)
Working humidity 5%~95% (no condensation)
Protection grade IP67
Anti-riot IK10
