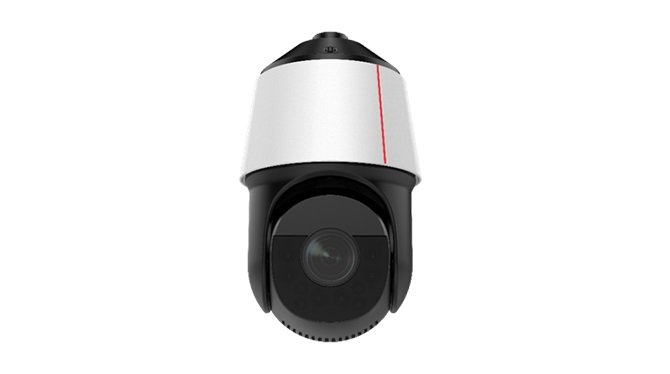

M6721-InFbZ23 2 million super starlight invisible infrared dome camera
Behavior analysis, faces;
Using 1/1.8" CMOS;
120dB super wide dynamic range, restoring true details in high-contrast scenes;

Chip Hi3519V101
Memory DDR3 1.0 GB
Flash SPI NAND FLASH 256.0 MB
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/1.8"
Minimum illumination color: 0.0005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter)
Lens focal length 5.9-135.7mm
Lens viewing angle: horizontal: 3.06° (T end) ~ 58.5° (W end); vertical: 1.72° (T end) ~ 34.04° (W end)
Infrared light fill distance 150m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Pan/tilt rotation angle Horizontal 0°~360° Vertical -20°~90°
PTZ horizontal speed Manual speed range 0.1°~240°/s PTZ control accuracy 0.06° Preset position maximum speed 240°/s
PTZ vertical speed Manual speed range 0.1°~200°/s PTZ control accuracy 0.06° Preset position maximum speed 200°/s
Behavior analysis: fast movement detection, legacy detection, removal detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Face face attribute detection
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Optical network interface 1 SFP slot
Power supply type AC24V
Power consumption: Maximum power consumption: 56.3W, typical power consumption: 17.6W
Working temperature -40℃~60℃(fill light turned off) -40℃~40℃(fill light turned on)
Working humidity 5%~95% (no condensation)
Protection grade IP66
Anti-riot IK10
