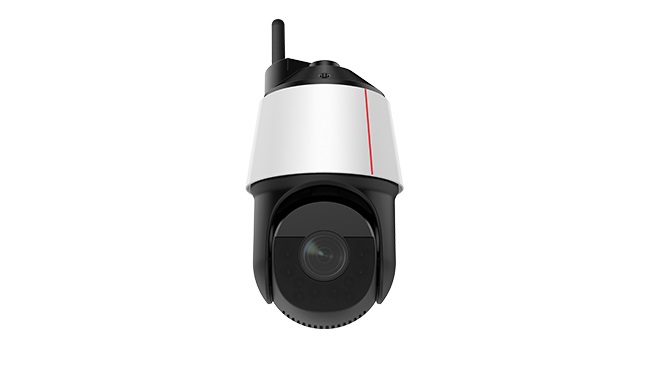

M6721-E-Z31M 1T 2 million multi-algorithm dome camera
Support 1 TOPS computing power;
Behavior analysis, crowd situation analysis, face, human body, machine and non-human, vehicle, vehicle event detection, traffic data statistics;
Supports backlight adaptation, fog penetration adaptation, and speed adaptation;
Using 1/1.8" CMOS;
Software definition supports online loading and upgrade of algorithms;
120dB super wide dynamic range, restoring true details in high-contrast scenes;

Chip Hi3516DV300
Computing power 1 TOPS
Memory DDR3 1.0 GB
Flash SPI NAND FLASH 512.0 MB
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/1.8"
Minimum illumination color: 0.001Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter)
Lens focal length 6-186mm
Lens viewing angle: horizontal: 2.4° (T end) ~ 56.3° (W end); vertical: 1.4° (T end) ~ 32.9° (W end)
Infrared light fill distance 200m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Pan-tilt rotation angle: horizontal 0°～360°, vertical -20°～90°
Pan-tilt horizontal speed: horizontal 0.1°~240°/S
PTZ vertical speed: vertical 0.1°~200°/S
Vehicle Mainland China plate recognition, body color detection, vehicle model detection, vehicle model detection
Vehicle event detection: non-occupancy detection, non-occupancy detection, illegal parking detection, retrograde/reversing detection, illegal parking detection
Traffic data statistics: traffic flow statistics, non-motor vehicle flow statistics, pedestrian statistics
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Crowd situation analysis, queue length statistics, regional population statistics
Face face detection, face attribute detection
Human body detection
Non-motor vehicle traffic statistics Machine and non-human detection
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M Ethernet port
Power supply type AC24V
Power consumption: Maximum power consumption: 53.6W, typical power consumption: 15.2W
Working temperature -40℃~60℃
Working humidity 5%~95% (no condensation)
Protection grade IP66
Anti-riot IK10

Accessories
AC24V 3A power adapter
HW-7224C14D-B
(02220376)

AC24V 3A power adapter
HW-7224C14D-A
(02220387)

Ball machine wall mount bracket
DTS-10C
(02411388)

Ball machine column bracket
ACC3631
(21154636)

Ball machine corner mounting bracket
ACC3651
(21154638)

Ball machine lifting bracket
ACC3621
(51661MCK)
