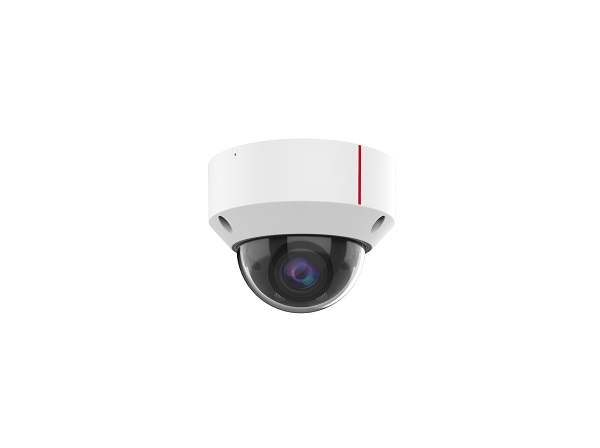

IPC6325-WD-VFZ 2 million wide dynamic range electric zoom dome network camera
Behavior analysis;
Support fog penetration adaptive;
Using 1/2.8" CMOS;
120dB super wide dynamic range, restoring true details in high-contrast scenes;

Chip Hi3516AV100
Memory DDR3 0.5 GB
Flash SPI NAND FLASH 128.0 MB
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/2.8"
Minimum illumination color: 0.02Lux (F1.2, AGC ON, 1/25), black and white: 0.012Lux (F1.2, AGC ON, 1/25)
Lens focal length 2.8-12mm
Lens viewing angle: horizontal: 36° (T end) ~ 106° (W end); vertical: 20° (T end) ~ 57° (W end)
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Behavior analysis: fast movement detection, removal detection, line crossing detection, intrusion detection, loitering detection
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Power supply type DC12V, AC24V, DC24V, PoE (IEEE 802.3at/af)
Power consumption: Maximum power consumption: 7.6W, typical power consumption: 3.8W
Working temperature -30℃~50℃
Working humidity 5%~95% (no condensation)
Protection grade IP66
Anti-riot IK10


DC12V 2A European standard power adapter
EADAPTE01
(02220093)

DC12V 2A British standard power adapter
EADAPTE02
(02220094)

DC12V 2A American standard power adapter
EADAPTE08
(02220121)

Adapter--25degC-60degC-90V-264V-56V/1.5A-C8/RI45-POE ADAPTER
W0ACPSE11
(02220154)

Adapter--5degC-45degC-90V-270V-12V/2A-Chinese plug/DC head
EADAPTE09
(02220294)

AC24V 3A power adapter
HW-7224C14D-B
(02220376)

AC24V 3A power adapter
HW-7224C14D-A
(02220387)

DC12V 2A Australian standard power adapter
HW-120200A2W
(02220648)

DC12.5V 2A power adapter
HW-125200D1D
(02220764)

Hemisphere indoor lifting bracket
DTS-08C
(02411384)

Hemisphere\Mini Dome Wall Mount Bracket
DTS-09C
(02411385)
