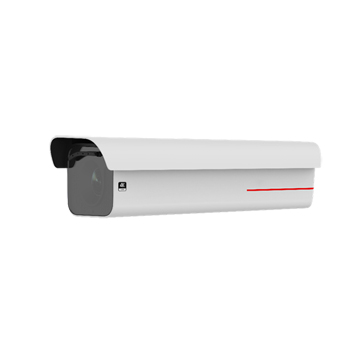

IPC6285-VRZ 10 million starlight infrared electric zoom network integrated box camera
Behavior analysis;
Support fog penetration adaptive;
Using 4/3" CMOS;
120dB super wide dynamic range, restoring true details in high-contrast scenes;

Chip Hi3519V101
Memory DDR3 1.0 GB
Flash SPI NAND FLASH 256.0 MB
Sensor maximum image size 4K 4096(H)*2160(V), 4K 3704(H)*2778(V)
Sensor photosensitive surface size 4/3"
Minimum illumination color: 0.008Lux, black and white: 0.008Lux, 0Lux (turn on infrared)
Lens focal length 12-84mm
Lens viewing angle: 4096*2160 resolution: horizontal: 12.2° (T end) ~ 76.5° (W end); vertical: 7° (T end) ~ 44.2° (W end); 3840*2160 resolution: horizontal: 11.4°(T end)~73.3°(W end); vertical: 7°(T end)~44.5°(W end); 3648*2736 resolution: horizontal: 11.1°(T end)~70.0°(W end); vertical: 8.6° (T end) ~ 54.6° (W end)
Infrared light fill distance 160m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Behavior analysis: fast movement detection, removal detection, line crossing detection, intrusion detection, loitering detection
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M/1000M adaptive Ethernet port
Power supply type AC24V, DC24V, POE (IEEE 802.3bt)
Power consumption: Maximum power consumption: 54W, Typical power consumption: 24W
Working temperature -40℃~60℃(fill light turned off) -40℃~40℃(fill light turned on)
Working humidity 5%~95% (no condensation)
Protection grade IP66
Anti-riot IK10
