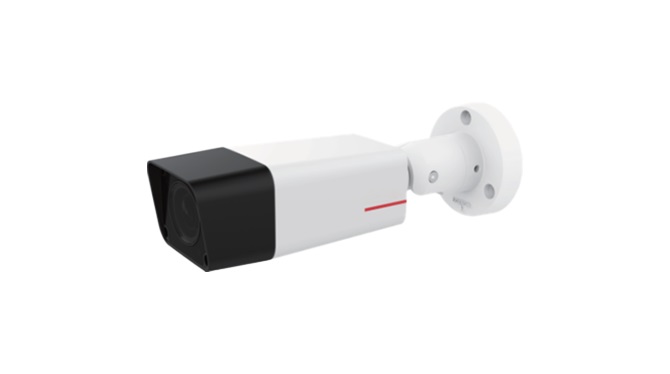

IPC6284-VRZ 8 million infrared electric zoom integrated box network camera
Behavior analysis;
Support fog penetration adaptive;
Using 1/2.5" CMOS;
120dB super wide dynamic range, restoring true details in high-contrast scenes;

Chip Hi3519V101
Memory DDR3 1.0 GB
Flash SPI NAND FLASH 256.0 MB
Sensor maximum image size 4K 3840(H)*2160(V)
Sensor photosensitive surface size 1/2.5"
Minimum illumination color: 0.08Lux (F1.53, AGC ON), black and white (infrared light off): 0.08Lux (F1.53, AGC ON), black and white (infrared light on): 0Lux
Lens focal length 4.1-12.8mm
Lens viewing angle: horizontal: 28.2° (T end) ~ 87.8° (W end); vertical: 15.9° (T end) ~ 48.4° (W end)
Infrared light fill distance 30m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Behavior analysis: fast movement detection, removal detection, line crossing detection, intrusion detection, loitering detection
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Power supply type DC12V, PoE (IEEE 802.3at)
Power consumption: Maximum power consumption: 15.6W, typical power consumption: 5W
Working temperature -40℃~60℃(fill light turned off) -40℃~40℃(fill light turned on)
Working humidity 5%~95% (no condensation)
Protection grade IP67
Anti-riot IK10
