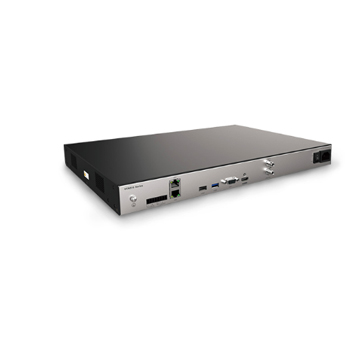

VCN510-8 Huawei video storage 8 channels 2 bays

Based on industry video surveillance business needs, Huawei VCN5X0 (Video Cloud Node) integrates a video surveillance management platform, professional storage products, and local human-machine management functions. It has the characteristics of simple management, security, reliability, open integration, etc.

Model VCN510-8 VCN510-8P
Equipment performance
Network video input: 8 channels per unit, 128Mbps, supports stacking of 16 units
Forward: Route 32
Replay download: 8 channels
Network video output bandwidth: 256Mbps
harddisk
Number of disks: 2
RAID level: Raid0, Raid1
Network management Network protocol: The front-end supports Huawei front-end SDK, Onvif 2.4 and Onvif Profile S and other protocols
Network interface: 2*10/100/1000M Ethernet port Network interface:
1*10/100/1000M Ethernet port,
8*10/100M Ethernet port, supports POE function
Reliable features
Media transmission: supports bandwidth adaptation, FEC, multicast, level-by-level forwarding, IPCA and other features
Cluster characteristics: NA
Data safe: supports system disk key data backup and automatically restores system disk business data
Compatible video formats: supports H.264, H.265 formats
other
Overall dimensions mm (width × depth × height):
Dimensions excluding mounting ears (device body size): 442mm×310mm×43.6mm
Dimensions including mounting ears: 482.6mm×310mm×43.6mmv
Chassis: 19-inch 1U standard chassis
Weight: ≤4.7Kg (including 2 hard drives)
