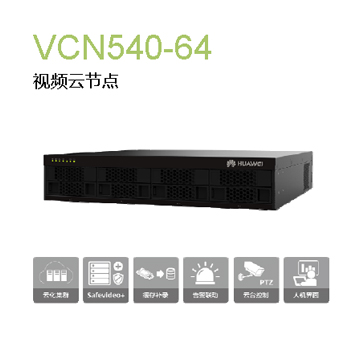

VCN540-64 Huawei 64-channel 8-bay video storage hard disk recorder

Product Features
High performance and flexible application
 Support 64-channel network video access, 320Mbps video input bandwidth
 Supports stand-alone application mode, multi-machine stacking application mode, and VCN3000 series cascade application mode
High reliability
∎ Support hard disk anti-shock technology design to reduce hard disk failure rate
 Support dual system design, effectively reducing the risk of business interruption and video loss
 Support cloud cluster function, in case of device failure, the business will be switched to other devices in a balanced manner
 Support Safevideo+ function, store data redundantly on demand
 Supports cache and supplementary recording technology to ensure the integrity of video data
 Adopts embedded Linux operating system, supports 7×24 stable operation, and is not susceptible to intrusion and attacks by hackers and viruses.
Various intelligent analysis
 Support Huawei smart cameras, perimeter intrusion, trip wire detection, loitering detection, object left behind and object removal multiple intelligent analysis functions access and linkage for easy deployment and maintenance
 System disk-free design, the device can be used immediately after booting
 Support hard disk hot swap
 Plug and play, automatically discover configuration
 Support status indication, the status of equipment and hard disk is clear at a glance

Hard drive recommendation:

4T enterprise-class hard drive
6T enterprise-class hard drive
8T enterprise-class hard drive

Technical Parameters
Product model VCN540-64
Equipment performance
Network video input 64 channels
Network video input bandwidth 320Mbps
Forward Route 128
Replay download 32 channels
Network video output bandwidth 320Mbps
Local video decoding
Video format H.264, H265
Decoding performance: 2 channels of HDMI, supporting 1 channel of 4K (3840*2160), or 4 channels of 1080P, or 8 channels of 720P, or 16 channels of D1 and below resolution decoding
Preview mode 1/4/8/9/16 screen
Platform performance
Stacking Features 2~16 units stacking network
Client Standalone and stacking scenarios: 32 logged in users Standalone: local human machine supports 1 user
storage
Number of disks 8
Disk interface SATA3.0, supports hot-swappable, built-in-3.5" handle
Hard drive type Enterprise hard drive: 4TB, 6TB, 8TB
RAID level RAID0, RAID1, RAID5
Video management
Recording method supports manual recording, scheduled recording, and recording triggered by multiple alarm linkages
Video protection supports Safevideo+, redundant protection of data by channel or time
Query method: Query by time and event
Download method: batch download, segmented download
security features
Media security features support multiple encryption algorithms such as AES256
Watermark feature supports front-end digital watermarks and generates alarms after being tampered with
Reliable features
Dual system feature support
Media transmission supports bandwidth adaptation, multicast, FEC, SEC and other features
Cluster features N+0 cluster, 3~8 units support cluster networking, dynamic load balancing, fault point migration and other services
Data safe supports system key data backup and automatically restores system business data
compatibility
Device access supports Huawei front-end SDK, GB/T 28181, Onvif 2.4 and Onvif Profile S and other protocols
Platform access supports the national standard GB/T 28181, enabling interconnection with other platforms for real-time browsing, video on demand, cloud mirror control, alarm reporting and other services (only as a lower-level domain)
Management and maintenance
Management method supports B/S and C/S management methods
Log download supports operation logs and running logs
External interface HDMI interface 1*HDMI 2.0, 1*HDMI 1.4

VGA interface 1*VGA
Network interface 2*10/100/1000M Ethernet port
USB interface 1 USB3.0 and 1 USB2.0 interface
Audio input 1, BNC interface
Audio output 1, BNC interface
Alarm input 4 channels
Alarm output 2 channels
other
Working temperature 0°C～45°C
Working humidity 5%～95% (non-condensing)
Power consumption (including disk) <100W
Power supply 100~240VAC, 50/60HZ
Overall dimensions mm (width × depth × height)
Dimensions excluding mounting ears (device body size): 442mm×420mm×86.1mm
Dimensions including mounting ears: 484mm×420mm×86.1mm
Chassis 19-inch 2U standard chassis
Weight (including hard drive) ≤14Kg (including 8 hard drives)
Certification Information
China Ministry of Public Security type inspection T28181 certification
Huawei IVS Intelligent Video Surveillance Product Brochure 11
, Overseas CE, RoHS, REACH, WEEE, FCC, IC, NRTL, CCC,
CQC, nine countries certification
