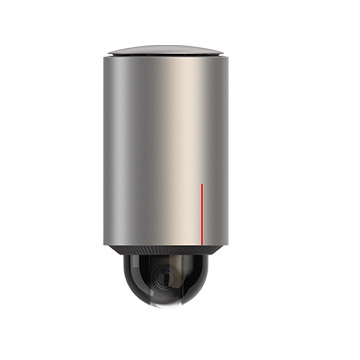

X7341-10-HMI-W5 Huawei 4T 4 million 5G AI dome ecological camera
Support 4 TOPS computing power;
Supports heat maps, 1-to-N function, multi-algorithm switching, behavior analysis, crowd situation analysis, faces, human bodies, machines and non-humans, vehicles, vehicle event detection, and traffic data statistics;
Supports backlight adaptation, fog penetration adaptation, and speed adaptation;
Using 1/1.8" CMOS;
Software definition supports online loading and upgrade of algorithms;
120dB super wide dynamic range, restoring true details in high-contrast scenes;
Support multi-algorithm switching;
Support 5G/4G;

Chip Hi3559AV100
Computing power 4 TOPS
Memory DDR4 4.0 GB
Flash SPI NAND FLASH 512.0 MB
Sensor maximum image size 4MP 2560(H)*1440(V)
Sensor photosensitive surface size 1/1.8"
Minimum illumination color: 0.005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0025Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (infrared on)
Lens focal length 8-32mm
Lens viewing angle Horizontal: 15° (T end) ~ 42° ( W end); Vertical: 8.4° ( T end) ~ 22.8° ( W end)
Infrared light fill distance 80m
LTE (4G module) involves
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Heat map support
1 drag N function supported
Vehicle Mainland China plate recognition, license plate enhancement, body color detection, car model detection, car model detection
Vehicle event detection: non-occupancy detection, non-occupancy detection, illegal parking detection, retrograde/reversing detection
Traffic data statistics: traffic flow statistics, non-motor vehicle flow statistics, pedestrian statistics
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
Face face detection, face capture enhancement, face attribute detection, face recognition
Human body detection, human attribute detection
Non-motor vehicle traffic statistics, non-motorized vehicle detection, cyclist attribute detection
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M/1000M Ethernet port
Power supply type AC24,POE(IEEE 802.3at)
Power consumption: Maximum power consumption: 21.2W, typical power consumption: 8.6W
Working temperature -40℃~60℃
Working humidity 5%~95% (no condensation)
Protection grade IP66
Riot IK10 (except windows)
Lens focal length 8-32mm
Lens viewing angle Horizontal: 15° (T end) ~ 42° ( W end); Vertical: 8.4° ( T end) ~ 22.8° ( W end)
Built-in infrared light support
Infrared light fill distance 80m
Power supply type AC24,POE(IEEE 802.3at)
Power consumption: Maximum power consumption: 21.2W, typical power consumption: 8.6W
Working temperature -40℃~60℃
Working humidity 5%~95% (no condensation)
Lightning protection and surge protection 6kV
Protection grade IP66
Riot IK10 (except windows)
Overall machine weight 3.23kg
Packing weight 3.73kg
Overall machine size 333*224*158mm
Packaging size 385*285*220mm
