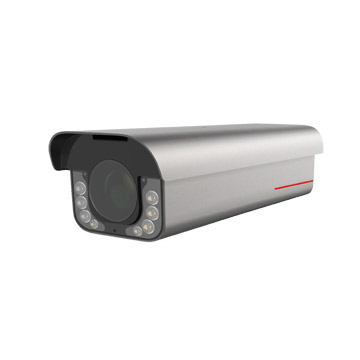

X2331-10-TL Huawei 4T 3 million low-light electric police bayonet AI tube camera
Support 4 TOPS computing power;
Supports heat maps, vehicle and traffic data statistics;
Supports backlight adaptation and fog penetration adaptation;
Using 2/3" CMOS;
Software definition supports online loading and upgrade of algorithms;
120dB super wide dynamic range, restoring true details in high-contrast scenes;
Chip Hi3559AV100
Computing power 4 TOPS
Memory DDR4 2.0 GB
Flash SPI NAND FLASH 512.0 MB
Sensor maximum image size 3MP 1936(H)*1464(V)
Sensor photosensitive surface size 2/3"
Minimum illumination color: 0.0004Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter)
White light fill light distance 30m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Heat map support
Electric Police Service ITS-Electric Police Capture Passing Vehicles, ITS-Electric Police Line Violations, ITS-Electric Police Illegal Lane Changes and Violations, ITS-Electric Police Driving Not Following the Directions, ITS-Electric Police Vehicle Occupation Detection, ITS-Electric Police Last number restricted traffic detection, ITS-electric police vehicle not driving in the prescribed lane detection, ITS-electric police occupying bus lane detection, ITS-electric police vehicle retrograde detection, ITS-electric police vehicle red light running detection, ITS-electric police traffic light detection Equipment inspection, ITS-electric police video traffic light recognition, ITS-electric police video speed measurement, ITS-electric police yellow grid illegal parking capture, ITS-electric police speed/low speed capture, ITS-electric police illegal U-turn detection, ITS-electric police Emergency lane occupation detection, ITS-electric police intrusion prohibition detection, ITS-electric police six-in-one
Bayonet Business ITS-Capture of passing vehicles at the bayonet, ITS-Detection of failure to yield to pedestrians at the bayonet, ITS-Detection of traffic restrictions with last number at the bayonet, ITS-Detection of large vehicles not driving in the prescribed lanes at the bayonet, ITS-Detection of bus lane occupation by the bayonet ,ITS-bayonet illegal lane change detection,ITS-bayonet retrograde detection,ITS-bayonet pressure line detection,ITS-bayonet machine occupation detection,ITS-bayonet super/low speed capture detection,ITS-bayonet yellow net ITS-bayonet driver's phone call detection while driving, ITS-bayonet driver's not wearing seat belt detection, ITS-bayonet's co-driver's not wearing seat belt detection, ITS-bayonet coil/radar speed detection ,ITS-Illegal U-turn detection at checkpoints,ITS-Emergency lane occupation detection at checkpoints,ITS-Prohibition detection at checkpoints,ITS-Statistical detection of vehicles at checkpoints
Vehicle Mainland China plate recognition, license plate enhancement, body color detection, car model detection, car model detection
Traffic data statistics: traffic flow statistics, non-motor vehicle flow statistics, pedestrian statistics, vehicle direction statistics
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 2
Ethernet interface bandwidth 2 RJ45 10M/100M/1000M adaptive Ethernet ports
Power supply type 100~240VAC
Power consumption: Maximum power consumption: 54.8W, typical power consumption: 10.6W
Working temperature -40℃~60℃
Working humidity 5%~95% (no condensation)
Protection grade IP66
Riot IK10 (except windows)
