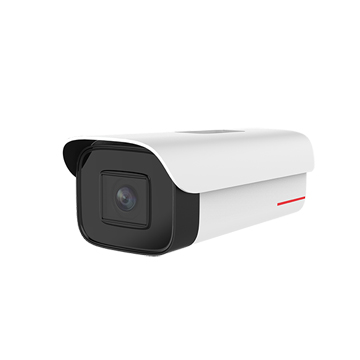

huawei  C2150-10-I-PU (3.6mm) 1T 5 million AI infrared barrel camera
Support 1 TOPS computing power;
Supports heat maps, behavior analysis, faces, and human bodies;
Using 1/2.7" CMOS;
120dB super wide dynamic range, restoring true details in high-contrast scenes;
Chip Hi3516DV300
Computing power 1 TOPS
Memory DDR3 0.5 GB
Flash SPI NAND FLASH 256.0 MB
Sensor maximum image size 5MP 2560(H)*1920(V)
Sensor photosensitive surface size 1/2.7"
Minimum illumination color: 0.005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0025Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (infrared on)
Lens focal length 3.6mm
Lens viewing angle Horizontal: 79.2°; Vertical: 57.6°
Infrared light fill distance 50m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Heat map support
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Face Face Detection
Human body detection
Audio port support
RS485 interface supported
Switching interface support
Ethernet interface supported
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Lens focal length 3.6mm
Maximum aperture F1.6
Lens viewing angle Horizontal: 79.2°; Vertical: 57.6°
Built-in infrared light support
Infrared light fill distance 50m
Video encoding format MJPEG/H.264/H.265
Number of video encoding channels: three streams
Main stream resolution 2560×1920(5MP), 2560×1440(4MP), 2048×1536(3MP), 1920×1080(1080P), 1280×720(720P)
Substream resolution Substream one: 720×576 (PAL), 720×480 (NTSC), 352×288 (PAL), 352×240 (NTSC); Substream two: 352×288 (PAL), 352×240(NTSC)
Video frame rate 30/25fps can be set, the default value is 25fps
Video bit rate only for H.264 and H.265 1080P~4K 512Kbps ~ 16Mbps 720P 384Kbps ~ 8Mbps D1 256K ~ 4Mbps CIF 32K ~ 1Mbps
Smart Coding Extra265/264
ROI (Region of Interest Coding) Each channel supports 4 groups. The quality of ROI relative to non-ROI is adjustable from 0 to 10 in steps of 1.
Audio encoding format G.711a/G.711u/G.726/OPUS
Audio sampling rate G.711a/G.711u/G.726: 8K OPUS: 8K/12K/16K/24K/48K
Audio code rate G.711a/G.711u: 64kbps; G.726: 16, 24, 32, 40kbps can be set; OPUS: 16/24/32/40/64/96/128/160/192/224/256 /288Kbps can be set
Heat map support
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Face Face Detection
Human body detection
Audio anomaly detection: detection of presence or absence of audio, detection of sudden rise and fall of audio
The SD interface supports the maximum capacity. Provides a MicroSD card slot, supports MicroSDHC/MicroSDXC, and supports a maximum capacity of 256GB memory card.
Audio input interface supported (1 LINE IN or 1 external MIC)
Audio output interface supported (1 LINE OUT)
RS485 interface supported, 1 half-duplex RS485 interface
Switching interface supported, 2 inputs/1 output
Ethernet interface supported
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Protocols supported by IPV4: TCP, UDP, IPv4, IPv6, DHCP, DHCPv6, DNS, ICMP, ICMPv6, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/ V3),802.1x,QoS,DDNS,SMTP,PPPOE
IPV6 supported protocols HTTPS, RTP, RTCP, RTSP, SSH, Onvif
Business constraints eb page supported by IPV6: live broadcast, recording, IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration Onvif: live broadcast, recording, IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration, Probe is not supported Business Note: IPV6 multicast is not supported
Access protocol SDK (private protocol), Rest API (private protocol), GA/T 1400
User permissions are divided into three levels: administrator, senior operator, and ordinary operator
Security mode Username and password authentication, support 802.1.x, HTTPS digital certificate
GB35114 support
Secure boot support
Security/encryption intrusion detection support
Power supply type DC12V, PoE (IEEE 802.3af)
Power consumption: Maximum power consumption: 10W, typical power consumption: 5W
Working temperature -30℃~60℃(fill light off) -30℃~40℃(fill light on)
Working humidity 5%~95% (no condensation)
Lightning protection and surge protection 4kV
Protection grade IP67
Overall machine weight 0.54kg
Packing weight 0.94kg
Overall machine size: 108mm×91mm×210mm
Packaging size 296mm×141mm×117mm
