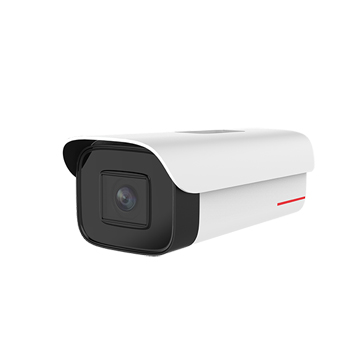

Huawei C2150-10-IU 5 million AI infrared barrel camera, behavior analysis
Support 1 TOPS computing power;
Supports heat maps, behavior analysis, faces, and human bodies;
Using 1/2.7" CMOS;
120dB super wide dynamic range, restoring true details in high-contrast scenes;
Chip Hi3516DV300
Computing power 1 TOPS
Memory DDR3 0.5 GB
Flash SPI NAND FLASH 256.0 MB
Sensor maximum image size 5MP 2560(H)*1920(V)
Sensor photosensitive surface size 1/2.7"
Minimum illumination color: 0.005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0025Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (turn on infrared)
Lens focal length 2.8-12mm
Lens viewing angle: horizontal: 30.6° (T end) ~ 94° (W end); vertical: 24° (T end) ~ 70° (W end)
Infrared light fill distance 50m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Gimbal rotation angle None
Heat map support
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
face face detection
Human body detection
Sensor maximum image size 5MP 2560(H)*1920(V)
Sensor photosensitive surface size 1/2.7"
Minimum illumination color: 0.005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0025Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (turn on infrared)
Shutter 1/3s ~1/68250s levels: 1/3, 1/4, 1/8, 1/12, 1/15; Non-slow shutter levels: 1/25, 1/30, 1/50, 1/60 ,1/90,1/100,1/120,1/125,1/180,1/250,1/350,,1/500,1/725,1/1000,1/1500,1/2000, 1/3000,1/4000,1/6000,1/10000,1/30000,1/100000;;Default value 1/25
Day and night mode automatic (ICR)/color/black and white
Gain control: During manual exposure, a total of 101 steps from 0 to 100 can be set in steps of 1. Default is 0.
White balance automatic/manual/one-key trigger
Digital Noise Reduction 2D/3D Noise Reduction
Wide dynamic range 120dB
Strong light suppression support
Video anti-shake support
Algorithm fog penetration support
Exposure compensation support
Exposure mode support
Signal-to-noise ratio >45dB
Electric focus support
Day and night focus compensation support
Corridor mode supported
Image correction supports image mirroring (horizontal mirroring, vertical mirroring, horizontal and vertical mirroring)
Digital zoom support
Privacy masking support
Lens focal length 2.8-12mm
Maximum aperture F1.6 (W end)-F3.4 (T end)
Lens viewing angle: horizontal: 30.6° (T end) ~ 94° (W end); vertical: 24° (T end) ~ 70° (W end)
Built-in infrared light support
Infrared light fill distance 50m
Video encoding format MJPEG/H.264/H.265
Number of video encoding channels: three streams
Main stream resolution 2560×1920(5MP), 2560×1440(4MP), 2048×1536(3MP), 1920×1080(1080P), 1280×720(720P)
Sub-stream resolution Sub-stream one: 720×576 (PAL), 720×480 (NTSC), 352×288 (PAL), 352×240 (NTSC); Sub-stream two: 352×288 (PAL), 352×240(NTSC)
Video frame rate 30/25fps can be set, the default value is 25fps
Video bit rate only for H.264 and H.2651080P~4K 512Kbps ~ 16Mbps720P 384Kbps ~ 8MbpsD1 256K ~ 4MbpsCIF 32K ~ 1Mbps
Smart encoding Extra265/264
ROI (Region of Interest Coding) Each channel supports 4 groups. The quality of ROI relative to non-ROI is adjustable from 0 to 10 in steps of 1.
Audio encoding format G.711a/G.711u/G.726/OPUS
Audio sampling rate G.711a/G.711u/G.726: 8K OPUS: 8K/12K/16K/24K/48K
Audio bit rate G.711a/G.711u: 64kbps; G.726: 16, 24, 32, 40kbps can be set; OPUS: 16/24/32/40/64/96/128/160/192/224/256 /288Kbps can be set
Heat map support
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
face face detection
Human body detection
Audio anomaly detection, audio presence/absence detection, audio sudden rise and drop detection
SD interface supports maximum capacity. Provides MicroSD card slot, supports MicroSDHC/MicroSDXC, and supports memory cards with a maximum capacity of 256GB.
Audio input interface supported (1 LINE IN or 1 external MIC)
Audio output interface supports (1 LINE OUT)
RS485 interface supported, 1 half-duplex RS485 interface
Switching interface supported, 2 inputs/1 output
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Protocols supported by IPV4: TCP, UDP, IPv4, IPv6, DHCP, DHCPv6, DNS, ICMP, ICMPv6, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/ V3), 802.1x, QoS, DDNS, SMTP, PPPOE Note: 1. DDNS adopts the peanut shell solution; 2. The northbound protocol should be adapted to PPPOE dial-up scenarios
Protocols supported by IPV6 None
Business constraints supported by IPV6 Web page: live broadcast, recording, IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration Onvif: live broadcast, recording, IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration, Probe is not supported Business Note: IPV6 multicast is not supported
Access protocol SDK (private protocol), Rest API (private protocol), GA/T 1400
User permissions are divided into 3 levels: administrator, senior operator, and ordinary operator
Safe mode Username and password authentication, support 802.1.x, HTTPS digital certificate
GB35114 support
Secure boot support
Security/encryption intrusion detection support
Power supply type DC12V, PoE (IEEE 802.3at)
Power consumption: Maximum power consumption: 16W, typical power consumption: 5W
Working temperature -30℃~60℃(fill light off) -30℃~40℃(fill light on)
Working humidity 5%~95% (no condensation)
Lightning protection and surge protection 4kV
Protection grade IP67
Overall machine weight 0.54kg
Packing weight 0.94kg
Overall machine size 108mm×91mm×210mm
Packaging size 296mm×141mm×117mm
Audio port support
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Power supply type DC12V, PoE (IEEE 802.3at)
Power consumption: Maximum power consumption: 16W, typical power consumption: 5W
Working temperature -30℃~60℃(fill light off) -30℃~40℃(fill light on)
Working humidity 5%~95% (no condensation)
Protection grade IP67
