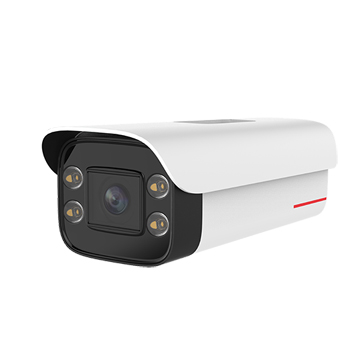

Huawei C212D-10-LU (2.8-12mm) 1T 2 million AI white light tube camera
Support 1 TOPS computing power;
Supports heat maps, multi-algorithm switching, behavior analysis, crowd situation analysis, face, human body, machine and non-human, vehicle, vehicle event detection, and traffic data statistics;
Supports backlight adaptation, fog penetration adaptation, and speed adaptation;
Using 1/2.7" CMOS;
Software definition supports online loading and upgrade of algorithms;
120dB super wide dynamic range, restoring true details in high-contrast scenes;
Support multi-algorithm switching;
Chip Hi3516DV300
Computing power 1 TOPS
Memory DDR3 0.5 GB
Flash SPI NAND FLASH 512.0 MB
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/2.7"
Minimum illumination color: 0.005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0025Lux (F1.2, AGC ON, 1/30 shutter)
Lens focal length 2.8-12mm
Lens viewing angle: horizontal: 36° (T end) ~ 100° (W end); vertical: 20° (T end) ~ 55° (W end)
White light fill light distance 30m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Heat map support
Vehicle Mainland China plate recognition, body color detection, vehicle model detection
Vehicle event detection: non-occupancy detection, non-occupancy detection, illegal parking detection, retrograde/reversing detection
Traffic data statistics: traffic flow statistics, non-motor vehicle flow statistics, pedestrian statistics
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
Face face detection, face attribute detection
Human body detection
Non-motor vehicle traffic statistics Machine and non-human detection
Audio port support
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M Ethernet port
Power supply type DC12V, PoE (IEEE 802.3at)
Power consumption: Maximum power consumption: 16W, typical power consumption: 6W
Working temperature -30℃~60℃(fill light off) -30℃~40℃(fill light on)
Working humidity 5%~95% (no condensation)
Protection grade IP67
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/2.7"
Minimum illumination color: 0.005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0025Lux (F1.2, AGC ON, 1/30 shutter)
Shutter 1/3s ~1/68250s levels: 1/3, 1/4, 1/8, 1/12, 1/15; Non-slow shutter levels: 1/25, 1/30, 1/50, 1/60 ,1/90,1/100,1/120,1/125,1/180,1/250,1/350,,1/500,1/725,1/1000,1/1500,1/2000, 1/3000,1/4000,1/6000,1/10000,1/30000,1/100000;;Default value 1/25
Day and night mode automatic (ICR)/color/black and white
Gain control: During manual exposure, a total of 101 steps from 0 to 100 can be set in steps of 1. Default is 0.
White balance automatic/manual/one-key trigger
Digital Noise Reduction 2D/3D Noise Reduction
Wide dynamic range 120dB
Strong light suppression support
Video anti-shake support
Algorithm fog penetration support
Exposure compensation support
Exposure mode support
Signal-to-noise ratio >45dB
Electric focus support
Lens focal length 2.8-12mm
Maximum aperture F1.6 (W end)-F3.4 (T end)
Lens viewing angle: horizontal: 36° (T end) ~ 100° (W end); vertical: 20° (T end) ~ 55° (W end)
Built-in white light support
White light fill light distance 30m
Video encoding format MJPEG/H.264/H.265
Number of video encoding channels: three streams
Main stream resolution 1920×1080(1080P), 1280×720(720P)
Sub-stream resolution Sub-stream one: 1920×1080(1080P), 1280×720(720P), 720×576(PAL), 720×480(NTSC); Sub-stream two: 720×576(PAL), 720×480(NTSC), 352×288(PAL), 352×240(NTSC)
Video frame rate 60/50/30/25fps can be set, the default value is 25fps
Video bit rate only for H.264 and H.2651080P~4K 512Kbps ~ 16Mbps720P 384Kbps ~ 8MbpsD1 256K ~ 4MbpsCIF 32K ~ 1Mbps
Smart encoding Extra265/264
ROI (Region of Interest Coding) Each channel supports 4 groups. The quality of ROI relative to non-ROI is adjustable from 0 to 10 in steps of 1.
Audio encoding format G.711a/G.711u/G.726/OPUS
Audio sampling rate G.711a/G.711u/G.726: 8K OPUS: 8K/12K/16K/24K/48K
Audio bit rate G.711a/G.711u: 64kbps; G.726: 16, 24, 32, 40kbps can be set; OPUS: 16/24/32/40/64/96/128/160/192/224/256 /288Kbps can be set
Heat map support
Multi-algorithm switching support
Vehicle Mainland China plate recognition, body color detection, vehicle model detection
Vehicle event detection: non-occupancy detection, non-occupancy detection, illegal parking detection, retrograde/reversing detection
Traffic data statistics: traffic flow statistics, non-motor vehicle flow statistics, pedestrian statistics
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
Face face detection, face attribute detection
Human body detection
Non-motor vehicle traffic statistics Machine and non-human detection
Audio anomaly detection, audio presence/absence detection, audio sudden rise and drop detection
SD interface supports maximum capacity. Provides MicroSD card slot, supports MicroSDHC/MicroSDXC, and supports memory cards with a maximum capacity of 256GB.
Audio input interface supported (1 LINE IN or 1 external MIC)
Audio output interface supports (1 LINE OUT)
RS485 interface supported, 1 half-duplex RS485 interface
Switching interface supported, 2 inputs/1 output
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M Ethernet port
Protocols supported by IPV4: TCP, UDP, IPv4, IPv6, DHCP, DHCPv6, DNS, ICMP, ICMPv6, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/ V3),802.1x,QoS,DDNS,SMTP,PPPOE
Protocols supported by IPV6 None
Business constraints supported by IPV6 eb page: live broadcast, recording, IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration Onvif: live broadcast, recording, IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration, Probe is not supported Business Note: IPV6 multicast is not supported
Access protocol SDK (private protocol), Rest API (private protocol), GA/T 1400, DB3311
User permissions are divided into 3 levels: administrator, senior operator, and ordinary operator
Safe mode Username and password authentication, support 802.1.x, HTTPS digital certificate
GB35114 support
Secure boot support
Security/encryption intrusion detection support
Power supply type DC12V, PoE (IEEE 802.3at)
Power consumption: Maximum power consumption: 16W, typical power consumption: 6W
Working temperature -30℃~60℃(fill light off) -30℃~40℃(fill light on)
Working humidity 5%~95% (no condensation)
Lightning protection and surge protection 4kV
Protection grade IP67
Overall machine weight 0.94kg
Packing weight 1.24kg
Overall machine size 108mm×91mm×210mm
Packaging size 296mm×141mm×117mm
Backlight adaptive support
Fog adaptive support
Speed adaptive support
Corridor mode supported
Digital zoom support
Privacy masking support
