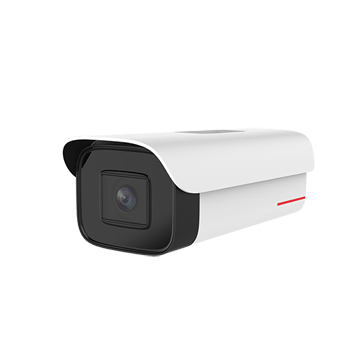

huawei C212D-10-FI 2 million infrared face capture tube camera
Support 1 TOPS computing power;
Supports behavior analysis, faces, and human bodies;
Using 1/2.7" CMOS;
120dB super wide dynamic range, restoring true details in high-contrast scenes;
Chip Hi3516DV300
Computing power 1 TOPS
Memory DDR3 0.2500 GB
Flash SPI NAND FLASH 256.0 MB
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/2.7"
Minimum illumination color: 0.005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0005Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (infrared on)
Lens focal length 2.8-12mm
Lens viewing angle: horizontal: 36° (T end) ~ 100° (W end); vertical: 20° (T end) ~ 55° (W end)
Infrared light fill distance 50m
Video encoding format MJPEG/H.264/H.265
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Face Face Detection
Human body detection
Switching interface support
Ethernet interface supported
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Power supply type DC12V
Power consumption: Maximum power consumption: 13W, typical power consumption: 5W
Working temperature -30℃~60℃(fill light off) -30℃~40℃(fill light on)
Working humidity 5%~95% (no condensation)
Protection grade IP67
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/2.7"
Minimum illumination color: 0.005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0005Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (infrared on)
Shutter 1/3s ~1/68250s
Day and night mode automatic (ICR)/color/black and white
Gain control: During manual exposure, a total of 101 steps from 0 to 100 can be set in steps of 1. Default is 0.
White balance automatic/manual/one-key trigger
Digital noise reduction 2D/3D noise reduction
Wide dynamic range 120dB
Strong light suppression support
Algorithm fog penetration support
Exposure compensation support
Exposure mode support
Signal-to-noise ratio >45dB
Electric focus support
Day and night focus compensation support
Image correction supports image mirroring (horizontal mirroring, vertical mirroring, horizontal and vertical mirroring)
Privacy masking support
Lens focal length 2.8-12mm
Maximum aperture F1.6 (W end)-F3.4 (T end)
Lens viewing angle: horizontal: 36° (T end) ~ 100° (W end); vertical: 20° (T end) ~ 55° (W end)
Built-in infrared light support
Infrared light fill distance 50m
Video encoding format MJPEG/H.264/H.265
Number of video encoding channels: three streams
Main stream resolution 1920×1080(1080P), 1280×720(720P)
Substream resolution Substream one: 1920×1080 (1080P), 1280×720 (720P), 720×576 (PAL), 720×480 (NTSC); Substream two: 720×576 (PAL), 720×480(NTSC), 352×288(PAL), 352×240(NTSC)
Video frame rate 60/50/30/25fps can be set, the default value is 25fps
Video bit rate only for H.264 and H.265 1080P~4K 512Kbps ~ 16Mbps 720P 384Kbps ~ 8Mbps D1 256K ~ 4Mbps CIF 32K ~ 1Mbps
Smart Coding Extra265/264
ROI (Region of Interest Coding) Each channel supports 4 groups. The quality of ROI relative to non-ROI is adjustable from 0 to 10 in steps of 1.
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Face Face Detection
Human body detection
The SD interface supports the maximum capacity. Provides a MicroSD card slot, supports MicroSDHC/MicroSDXC, and supports a maximum capacity of 256GB memory card.
Switching interface supported, 1 input/1 output
Ethernet interface supported
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Protocols supported by IPV4: TCP, UDP, IPv4, IPv6, DHCP, DHCPv6, DNS, ICMP, ICMPv6, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/ V3),802.1x,QoS,DDNS,SMTP,PPPOE
IPV6 supported protocols HTTPS, RTP, RTCP, RTSP, SSH, Onvif
Business constraints eb page supported by IPV6: live broadcast, recording, IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration Onvif: live broadcast, recording, IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration, Probe is not supported Business Note: IPV6 multicast is not supported
Access protocol SDK (private protocol), Rest API (private protocol), GA/T 1400
User permissions are divided into three levels: administrator, senior operator, and ordinary operator
Security mode Username and password authentication, support 802.1.x, HTTPS digital certificate
GB35114 support
Secure boot support
Power supply type DC12V
Power consumption: Maximum power consumption: 13W, typical power consumption: 5W
Working temperature -30℃~60℃(fill light off) -30℃~40℃(fill light on)
Working humidity 5%~95% (no condensation)
Lightning protection and surge protection 2kV
Protection grade IP67
Overall machine weight 0.54kg
Packing weight 0.94kg
Overall machine size: 108mm×91mm×210mm
Packaging size 296mm×141mm×117mm
