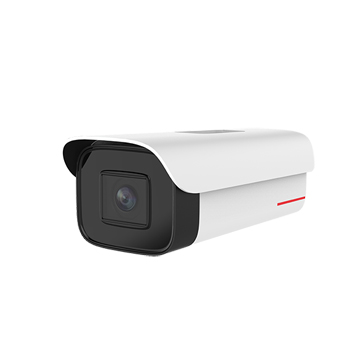

C2121-I-Sf 2 million super starlight infrared tube camera
Support heat map;
Using 1/1.8" CMOS;
120dB super wide dynamic range, restoring true details in high-contrast scenes;
Chip Hi3516AV100
Memory DDR3 0.5 GB
Flash SPI NAND FLASH 128.0 MB
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/1.8"
Minimum illumination color: 0.001Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (turn on infrared)
Lens focal length 2.8-12mm
Lens viewing angle: horizontal: 42.1° (T end) ~ 95.5° (W end); vertical: 24° (T end) ~ 52° (W end)
Infrared light fill distance 50m
Video encoding format MJPEG/H.264/H.265
Heat map support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Power supply type DC12V, PoE (IEEE 802.3af)
Power consumption: Maximum power consumption: 9.5W, typical power consumption: 3.6W
Working temperature -30℃~60℃(fill light off) -30℃~40℃(fill light on)
Working humidity 5%~95% (no condensation)
Protection grade IP67
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/1.8"
Minimum illumination color: 0.001Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (turn on infrared)
Shutter 1/3s ~1/68250s
Day and night mode automatic (ICR)/color/black and white
Gain control: During manual exposure, a total of 101 steps from 0 to 100 can be set in steps of 1. Default is 0.
White balance automatic/manual/one-key trigger
Digital Noise Reduction 2D/3D Noise Reduction
Wide dynamic range 120dB
Strong light suppression support
Video anti-shake support
Algorithm fog penetration support
Exposure compensation support
Exposure mode support
Signal-to-noise ratio >45dB
Electric focus support
Day and night focus compensation support
Distortion correction support
Corridor mode supported
Image correction supports image mirroring (horizontal mirroring, vertical mirroring, horizontal and vertical mirroring)
Privacy masking support
Lens focal length 2.8-12mm
Maximum aperture F1.9 (W end)-F2.8 (T end)
Lens viewing angle: horizontal: 42.1° (T end) ~ 95.5° (W end); vertical: 24° (T end) ~ 52° (W end)
Built-in infrared light support
Infrared light fill distance 50m
Video encoding format MJPEG/H.264/H.265
Number of video encoding channels: three streams
Main stream resolution 1920×1080(1080P), 1280×720(720P), 720×576(PAL), 720×480(NTSC)
Sub-stream resolution Sub-stream one: 1920×1080(1080P), 1280×720(720P), 720×576(PAL), 720×480(NTSC); Sub-stream two: 720×576(PAL), 720×480(NTSC), 352×288(PAL), 352×240(NTSC)
Video frame rate 60/50/30/25fps can be set, the default value is 25fps
Video bit rate only for H.264 and H.265 1080P~4K 512Kbps ~ 16Mbps 720P 384Kbps ~ 8Mbps D1 256K ~ 4Mbps CIF 32K ~ 1Mbps
Smart encoding Extra265/264
ROI (Region of Interest Coding) Each channel supports 4 groups. The quality of ROI relative to non-ROI is adjustable from 0 to 10 in steps of 1.
Heat map support
SD interface supports maximum capacity. Provides MicroSD card slot, supports MicroSDHC/MicroSDXC, and supports memory cards with a maximum capacity of 256GB.
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Protocols supported by IPV4: TCP, UDP, IPv4, IPv6, DHCP, DHCPv6, DNS, ICMP, ICMPv6, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/ V3), 802.1x, QoS, DDNS, PPPOE Note: 1. DDNS adopts the peanut shell solution; 2. The northbound protocol should be adapted to PPPOE dial-up scenarios
IPV6 supported protocols HTTPS, RTP, RTCP, RTSP, SSH, Onvif
Business constraints supported by IPV6 Web page: live broadcast, recording, IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration Onvif: live broadcast, recording, IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration, Probe is not supported Business Note: IPV6 multicast is not supported
Access protocol ONVIF, SDK (private protocol), GA/T 1400
User permissions are divided into 3 levels: administrator, senior operator, and ordinary operator
Safe mode Username and password authentication, support 802.1.x, HTTPS digital certificate
GB35114 support
Security/encryption intrusion detection support
Power supply type DC12V, PoE (IEEE 802.3af)
Power consumption: Maximum power consumption: 9.5W, typical power consumption: 3.6W
Working temperature -30℃~60℃(fill light off) -30℃~40℃(fill light on)
Working humidity 5%~95% (no condensation)
Lightning protection and surge protection 4kV
Protection grade IP67
Overall machine weight 0.94kg
Packing weight 1.24kg
Overall machine size 108mm×91mm×210mm
Packaging size 296mm×141mm×117mm
