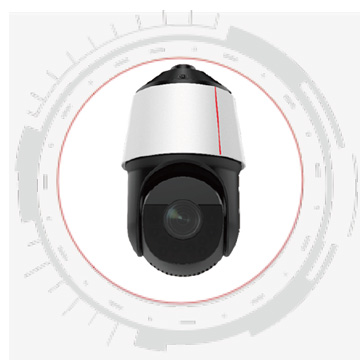

M6781-10-GZ40-W5 2T 8 million 5G AI dome camera

Support 2 TOPS computing power;
Supports heat maps, behavior analysis, crowd situation analysis, face, human body, machine and non-human, vehicle, vehicle event detection, and traffic data statistics;
Supports backlight adaptation, fog penetration adaptation, and speed adaptation;
Using 1/1.8" CMOS;
Software definition supports online loading and upgrade of algorithms;
120dB super wide dynamic range, restoring true details in high-contrast scenes;
Supports intelligent encoding to effectively save bandwidth;
Support 4G, 5G SA/NSA networking;
Product model M6781-10-GZ40-W5
The main parameters
Main control chip Hi3519AV100
Hash rate 2 TOPS
Memory DDR4 2.0 GB
Flash SPI NAND FLASH 512.0 MB
Maximum support for expansion provides MicroSD card slot, supports MicroSDHC/MicroSDXC, and supports memory cards with a maximum capacity of 256GB
camera
Image sensor 1/1.8" 8MP 3840(H)*2160(V)
Lens focal length 5.4-216mm
Maximum aperture F1.55 (W end)-F4.8 (T end)
Lens aperture type Precision aperture (DC-Iris+Hall)
Lens viewing angle horizontal: 2.16° (T end) ~ 62.3° (W end); vertical: 1.22° (T end) ~ 37.1° (W end)
Infrared light supplementary light distance 200m
Built-in PTZ
The pan/tilt rotation angle is 0°～360° horizontally and -20°～90° vertically.
PTZ horizontal speed keying speed: 0.1°~160°/S Preset position speed: 240°/S
PTZ vertical speed keying speed: 0.1~120°/s Preset position speed: 200°/s
intelligent
Face/human body face detection, face capture enhancement, face attribute detection
Face recognition supports human body detection, human attribute detection
vehicle
License Plate Recognition (China Region) Mainland China License Plate Recognition
Vehicle analysis, body color detection, car model detection, car model detection
Traffic data statistics: vehicle flow statistics, non-motor vehicle flow statistics, pedestrian statistics
Other intelligence
Heat map support
Vehicle event detection: non-occupancy detection, non-occupancy detection, illegal parking detection, retrograde/reversing detection, illegal parking detection
Behavior analysis: rapid movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Crowd situation analysis, queue length statistics, regional people statistics, people flow statistics
Non-motor vehicle traffic statistics machine non-human detection, cyclist attribute detection
Audio anomaly detection, audio presence/absence detection, audio sudden rise and drop detection
Scene change detection support
Virtual focus detection support
open ecology
Algorithm open
SDCOS support
HoloSens mall supports dynamic loading of algorithms
Data open data open SDK (private protocol), Rest API (private protocol), GA/T 1400, DB3311, GB/T 28181
Codec
Video encoding format MJPEG/H.264/H.265
Video encoding path three streams
Video frame rate 30/25fps can be set
Smart encoding Extra265/264
Image AI scene adaptive backlight adaptive/fog penetration adaptive/speed adaptive
imageISP
Minimum illumination color: 0.015Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0075Lux (F1.2, AGC ON, 1/30 shutter)
Day and night mode automatic (ICR)/color/black and white
White balance automatic/auto tracking/manual/one-key trigger
Digital Noise Reduction 2D/3D Noise Reduction
Wide dynamic range 120dB
Strong light suppression support
Networking
network transmission
Protocols supported by IPv4
TCP,UDP,IPv4,IPv6,DHCP,DHCPv6,DNS,ICMP,ICMPv6,IGMP,HTTPS,FTP,SFTP,
RTP,RTSP,RTCP,SIP,ARP,SSL,NTP,SNMP(V1/V2/V3),802.1x,QoS,DDNS,SMTP
Note: 1.DDNS adopts peanut shell solution;
IPV6 supported protocols HTTPS, RTP, RTCP, RTSP
4G network transmission support: B1, B3, B5, B8, B34, B40, B41 frequency bands
5G network transmission support: SA and NSA networking, supporting N41, N1, N78, N79 frequency bands
Safety
Data Security
Media security supports WEB interface and SDK media stream encryption, supporting up to 2 encrypted media streams in total; supports the number of SD cards
Data storage encryption
Video digital watermark support
Image digital watermark support
business security
User permissions are divided into three levels: administrator, senior operator, and ordinary operator
Safe mode username and password authentication, support 802.1.x, HTTPS digital certificate
Secure boot support
Security/encryption intrusion detection support
Security certification GB35114 supported
interface
The storage interface provides a MicroSD card slot, supports MicroSDHC/MicroSDXC, and supports memory cards with a maximum capacity of 256GB.
Communication serial port RS485 interface
Alarm interface 4 inputs/2 outputs
Network interface 1 RJ45 10M/100M Ethernet port
Audio interface Audio input interface supports (1 LINE IN or 1 external MIC); Audio output interface supports (1 LINE OUT)
General specifications
Power supply typeAC24V
Power consumption Maximum power consumption: 41.8W, Typical power consumption: 11.9W
Working temperature -40℃~60℃(without fill light)-40℃~40℃(with fill light on)
Working humidity 5%~95% (no condensation)
Lightning protection and surge protection 6kV
Protection grade IP66
Riot IK10 (except Windows)
Weight: The weight of the whole machine is 7.3kg; the packaging weight is 10kg
Dimensions: Overall machine size: φ242.5mm×414.6mm; packaging size: 580mm×325mm×330mm
