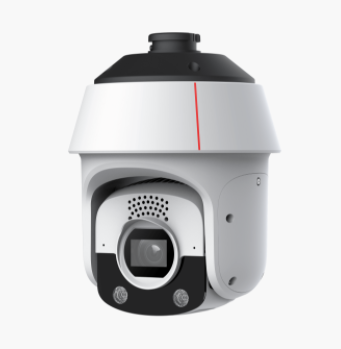

C6520-10-Z23-SV 1T 2 million dual-light full-color voice AI dome camera
Support 1 TOPS computing power;
Support behavior analysis, crowd situation analysis, target, human body;
Supports backlight adaptation and fog penetration adaptation;
Using 1/2.7" CMOS;
Software definition supports online loading and upgrade of algorithms;
120dB super wide dynamic range, restoring true details in high-contrast scenes;
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
Target target detection, target attribute detection
Human body detection
Computing power 1 TOPS
Sensor photosensitive surface size 1/2.7" CMOS
Minimum illumination color: 0.005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0005Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (infrared on)
Lens focal length 5-115mm
Lens viewing angle Horizontal 56.9°(W) ~2.8°(T); Vertical 32.1°(W)~1.6°(T): Viewing angle tolerance ≤5%
Infrared light fill distance 150m
White light fill light distance 30m
Video encoding format MJPEG/H.265
Video frame rate 60/50/30/25fps can be set, the default value is 25fps
Audio encoding format G.711a/G.711u/G.726/OPUS/AAC
Pan-tilt rotation angle: horizontal 0°～360°, vertical -15°～90°
Pan-tilt horizontal speed Keying speed: 0.1°~70°/S Preset position speed: 70°/S Note: The pan-tilt needs speed limit at low temperature. Enter low temperature. Speed limit temperature: -20 degrees. Exit low temperature. Speed limit temperature: -10 degrees. Horizontal speed limit: 30 degrees per second Vertical speed limit: 20 degrees per second
PTZ vertical speed Keying speed: 0.1~50°/s Preset position speed: 50°/s Note: The PTZ needs speed limit at low temperature Enter low temperature speed limit temperature: -20 degrees Exit low temperature speed limit temperature: -10 degrees horizontal Speed limit: 30 degrees per second Vertical speed limit: 20 degrees per second
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M Ethernet port
Power supply type DC12V
Power consumption: Maximum power consumption: 21.6W, typical power consumption: 5.4W
Working temperature -30℃~60℃ (the fill light is not turned on) -30℃~40℃ (the fill light is turned on)
Working humidity 5%~95% (no condensation)
Protection grade IP66
Sensor photosensitive surface size 1/2.7" CMOS
Minimum illumination color: 0.005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0005Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (infrared on)
Shutter Shutter: 1/25-1/100000; Behavior analysis default value: Shutter limit: 1/25, shutter value: 1/25; Single card default value: Shutter limit: 1/25, shutter value: 1/25;
Day and night mode supported; automatic (ICR)/color/black and white/timing Default automatic Sensitivity high, medium, low Default high Image trigger/internal trigger
Gain control: During manual exposure, a total of 101 steps from 0 to 100 can be set in steps of 1. Default is 0.
White balance automatic/manual/one-key trigger
Digital Noise Reduction 2D/3D Noise Reduction
Wide dynamic range 120dB
Strong light suppression support
Video anti-shake support function; sensitivity not supported;
Optical fog transmission is not supported
Algorithm fog penetration support
Exposure compensation support
Exposure mode support
Signal-to-noise ratio >45dB
Electric focus support
Day and night focus compensation support
Backlight adaptive support
Fog adaptive support
Mirror mode supports image mirroring (horizontal mirroring, vertical mirroring, horizontal and vertical mirroring)
Digital zoom support
Privacy masking support
Lens focal length 5-115mm
Maximum aperture F1.5-F3.8
Lens aperture type Precision aperture (DC-Iris+Hall)
Lens viewing angle Horizontal 56.9°(W) ~2.8°(T); Vertical 32.1°(W)~1.6°(T): Viewing angle tolerance ≤5%
Built-in infrared light support
Infrared light fill distance 150m
Built-in white light support
White light fill light distance 30m
Video encoding format MJPEG/H.265
Number of video encoding channels: three streams
Main stream resolution 1920×1080(1080P), 1280×720(720P), 720×576(PAL)
Sub-stream resolution Sub-stream one: 1920×1080(1080P), 1280×720(720P), 720×576(PAL), 720×480(NTSC); Sub-stream two: 720×576(PAL), 720×480(NTSC), 352×288(PAL), 352×240(NTSC)
Video frame rate 60/50/30/25fps can be set, the default value is 25fps
Video bit rate is greater than 1080P~4K, 512Kbps ~ 16Mbps; 1080P, 256Kbps ~ 16Mbps; 720P, 256Kbps ~ 8Mbps; D1, 256Kbps ~ 4Mbps; CIF, 32Kbps ~ 1Mbps;
Smart Coding Extra265
ROI (Region of Interest Coding) Each channel supports 4 groups. The quality of ROI relative to non-ROI is adjustable from 0 to 10 in steps of 1.
Audio encoding format G.711a/G.711u/G.726/OPUS/AAC
Audio sampling rate G.711a/G.711u/G.726: 8K OPUS: 8K/12K/16K/24K/48K AAC: 8K/16K/22.05K/24K/32K/44.1K/48K
Audio bit rate G.711a/G.711u: 64kbps; G.726: 16, 24, 32, 40kbps can be set; OPUS: 16/24/32/40/64/96/128/160/192/224/256 /288Kbps can set AAC: 8K sampling rate, can be set to 16/22/24/32/48kbps 16K sampling rate, can be set to 24/32/48/64/96kbps 22.05/24K/32K sampling rate, can be set to 32/48/ 64/96/128kbps 44.1K/48K sampling rate, can be set to 48/64/96/128/256kbps
Pan-tilt rotation angle: horizontal 0°～360°, vertical -15°～90°
Pan-tilt horizontal speed Keying speed: 0.1°~70°/S Preset position speed: 70°/S Note: The pan-tilt needs speed limit at low temperature. Enter low temperature. Speed limit temperature: -20 degrees. Exit low temperature. Speed limit temperature: -10 degrees. Horizontal speed limit: 30 degrees per second Vertical speed limit: 20 degrees per second
PTZ vertical speed Keying speed: 0.1~50°/s Preset position speed: 50°/s Note: The PTZ needs speed limit at low temperature Enter low temperature speed limit temperature: -20 degrees Exit low temperature speed limit temperature: -10 degrees horizontal Speed limit: 30 degrees per second Vertical speed limit: 20 degrees per second
Watch mode support
Cruise track support
Preset positions support 512 (including 1 guard position)
Guard position supports 1 guard position
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
Target target detection, target attribute detection
Human body detection
SD interface supports maximum capacity. Provides MicroSD card slot, supports MicroSDHC/MicroSDXC, and supports memory cards with a maximum capacity of 256GB.
Audio input interface supported (2 channels built-in MIC)
Audio output interface support (1-way speaker)
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M Ethernet port
Access protocol GB/T 28181 (2011, 2016 protocol specifications), SDK (private protocol), Rest API (private protocol), GA/T 1400
Protocols supported by IPV4: TCP, UDP, IPv4, DHCP, DNS, ICMP, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/V3), 802.1x, QoS, SMTP, PPPOE Note: 1 Northbound protocol should be adapted to PPPOE dial-up scenarios
IPV6 supported protocols HTTPS, RTP, RTCP, RTSP, Onvif, IPv6, ICMPv6, DHCPv6
Business constraints supported by IPV6 Web page: live (static IPV6), recording (static IPV6), IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration Onvif: live (static IPV6), recording (static IPV6), IPv6 IP (Including static IP, route announcement) configuration, DHCPv6 configuration, Probe service not supported Note: 1. Does not support IPV6 multicast 2. Does not support DNS 3. Does not support IP conflict detection
User permissions are divided into 3 levels: administrator, senior operator, and ordinary operator
Safe mode Username and password authentication, support 802.1.x, HTTPS digital certificate
Video digital watermark support
GB35114 support
Secure boot support
Security/encryption intrusion detection support
Power supply type DC12V
Power consumption: Maximum power consumption: 21.6W, typical power consumption: 5.4W
Working temperature -30℃~60℃ (the fill light is not turned on) -30℃~40℃ (the fill light is turned on)
Working humidity 5%~95% (no condensation)
Lightning protection and surge protection, network port 6kV, power port 4KV
Protection grade IP66
Overall machine weight 2.4kg
Packing weight 3.4kg
Overall machine size 202.6mm*202.6mm*260mm
Packing size 285mm*285mm*375mm
Accessories
Ball machine column bracket
ACC3631
(21154636)
Ball machine corner mounting bracket
ACC3651
(21154638)
Ball machine wall mount bracket
ACC3611
(51661JVP)
Ball machine lifting bracket
ACC3621
(51661MCK)
