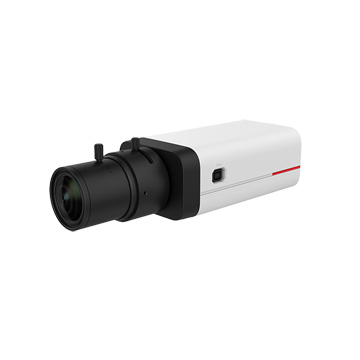

C1220-10 1T 2 million AI gun camera
Support 1 TOPS computing power;
Support behavior analysis, crowd situation analysis, target, human body;
Using 1/2.7" CMOS;
120dB super wide dynamic range, restoring true details in high-contrast scenes;
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
target target detection
Human body detection
Computing power 1 TOPS
Sensor photosensitive surface size 1/2.7" CMOS
Minimum illumination color: 0.002Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0002Lux (F1.2, AGC ON, 1/30 shutter)
Video encoding format MJPEG/H.265
Video frame rate 30/25fps can be set
Audio encoding format G.711a/G.711u/G.726/OPUS/AAC
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M Ethernet port
Power supply type AC24V, DC12V, PoE (802.3af)
Power consumption: Maximum power consumption: 3.9W, Typical power consumption: 3.2W
Working temperature -30℃~60℃
Working humidity 5%~95% (no condensation)
Sensor photosensitive surface size 1/2.7" CMOS
Minimum illumination color: 0.002Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0002Lux (F1.2, AGC ON, 1/30 shutter)
Shutter supports slow shutter; slow shutter levels: 1/3, 1/4, 1/8, 1/12, 1/15; non-slow shutter levels: 1/25, 1/30, 1/50, 1/60, 1/90,1/100,1/120,1/125,1/180,1/250,1/350,,1/500,1/725,1/1000,1/1500,1/2000,1 /3000,1/4000,1/6000,1/10000,1/30000,1/100000, custom shutter; default value 1/25;
Day and night mode supported; automatic (ICR)/color/black and white Default automatic Sensitivity high, medium, low Default high Image trigger/internal trigger
Gain control: During manual exposure, a total of 101 steps from 0 to 100 can be set in steps of 1. Default is 0.
White balance automatic/manual/one-key trigger
Digital Noise Reduction 2D/3D Noise Reduction
Wide dynamic range 120dB
Strong light suppression support
Video anti-shake function is not supported; sensitivity is not supported;
Optical fog transmission is not supported
Algorithm fog penetration support
Exposure compensation support
Exposure mode support
Signal-to-noise ratio >45dB
Sound and light assisted focus support
Mirror mode supports image mirroring (horizontal mirroring, vertical mirroring, horizontal and vertical mirroring)
Privacy masking support
Lens aperture type DC-Iris (driving impedance ≥190ohm; braking impedance ≥500ohm)
Video encoding format MJPEG/H.265
Number of video encoding channels: three streams
Main stream resolution 1920×1080(1080P), 1280×720(720P)
Sub-stream resolution Sub-stream one: 1920×1080(1080P), 1280×720(720P), 720×576(PAL), 720×480(NTSC); Sub-stream two: 720×576(PAL), 720×480(NTSC), 352×288(PAL), 352×240(NTSC)
Video frame rate 30/25fps can be set
Video bit rate 1080P, 512Kbps ~8Mbps; 720P, 384Kbps ~4Mbps; D1, 256K ~ 4Mbps; CIF, 32K ~ 1Mbps;
Smart Coding Extra265
ROI (Region of Interest Coding) Each channel supports 4 groups. The quality of ROI relative to non-ROI is adjustable from 0 to 10 in steps of 1.
Audio encoding format G.711a/G.711u/G.726/OPUS/AAC
Audio sampling rate G.711a/G.711u/G.726: 8K OPUS: 8K/12K/16K/24K/48K
Audio bit rate G.711a/G.711u: 64kbps; G.726: 16, 24, 32, 40kbps can be set; OPUS: 16/24/32/40/64/96/128/160/192/224/256 /288Kbps can be set
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
target target detection
Human body detection
SD interface supports maximum capacity. Provides MicroSD card slot, supports MicroSDHC/MicroSDXC, and supports memory cards with a maximum capacity of 256GB.
Audio input interface supported (1 LINE IN or 1 external MIC)
Audio output interface supports (1 LINE OUT)
RS485 interface supported, 1 half-duplex RS485 interface
Switching interface supported, 1 input/1 output
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M Ethernet port
Access protocol GB/T 28181 (2011, 2016 protocol specifications), SDK (private protocol), Rest API (private protocol), GA/T 1400
Protocols supported by IPV4: TCP, UDP, IPv4, DHCP, DNS, ICMP, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/V3), 802.1x, QoS, PPPOE Note: 1. The northbound protocol should be adapted to PPPOE dial-up scenarios
IPV6 supported protocols HTTPS, RTP, RTCP, RTSP, Onvif, IPv6, ICMPv6, DHCPv6
Business constraints supported by IPV6 Web page: live (static IPV6), recording (static IPV6), IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration Onvif: live (static IPV6), recording (static IPV6), IPv6 IP (Including static IP, route announcement) configuration, DHCPv6 configuration, Probe service not supported Note: 1. Does not support IPV6 multicast 2. Does not support DNS 3. Does not support IP conflict detection
User permissions are divided into 3 levels: administrator, senior operator, and ordinary operator
Safe mode Username and password authentication, support 802.1.x, HTTPS digital certificate
GB35114 support
Secure boot support
Power supply type AC24V, DC12V, PoE (802.3af)
Power consumption: Maximum power consumption: 3.9W, Typical power consumption: 3.2W
Working temperature -30℃~60℃
Working humidity 5%~95% (no condensation)
Lightning protection and surge protection 4kV
Overall machine weight 0.54kg
Packing weight 0.7kg
Overall machine size 78.0mm×62.5mm×149.2mm (excluding lens)
Packaging size 230mm×125mm×108mm
Accessories
Lens-Auto aperture manual zoom lens-1/2.7"-2 million-F1.4-DC aperture-2.8-12mm-CS interface
TT02812D.IR-SD(3MP)
(48010111)
Lens-Manual zoom lens-1/2.7"-6MegaPixe-1.4 DC-iris-5~50-CS interface
CS-D0550IR(6MP)-1
(48010182)
Adapter--5degC-45degC-90V-270V-12V/2A-Chinese plug/DC head
EADAPTE09
(02220294)
Power frequency transformer-207V-253V-3A-24V-130*92*68mm--40degC-50degC
HW-7224AC14D-B
(02220376)
Power frequency transformer-108V-132V-3A-24V-130*92*68mm--40degC-50degC
HW-7224AC14D-A
(02220387)
DC12V 2A Australian standard power adapter
HW-120200A2W
(02220648)
Adapter--5degC-40degC-170V-240V-12V/1A-CCC 2PIN/DC 2.1*5.5*9.5 H PLUG-Black
HW-120100C9W
(02221074)
Adapter--20degC-50degC-100V-240V-12.5V/2A-C8 in/2pin out 62368 split from 02220764
HW-125200D1D
(02221473)
Adapter--5degC-45degC-90V-270V-12V/2A-CE/2.1*5.5*9.5 H PLUG-Erp Level 6, Thailand vertical, split from 02220778, non-Huawei LOGO
HW-120200U7W
(02221797)
shield
DTS-15K
(02411379)
shield
DTS-15SHK
(02411380
shield
DTS-15SHK-50W
(02411381)
Barrel machine column bracket
ACC3231
(21154637)
Two-dimensional universal joint
ACC3280
(21154639-001)
Bolt wall mount bracket
ACC3210
(51661JVQ)
Bolt mount
ACC3121
(51661LKS)
Guard, barrel hoisting bracket
ACC3221
(51661LKT)
Small barrel/bolt wall mount bracket
ACC3217
(51661QBT)
