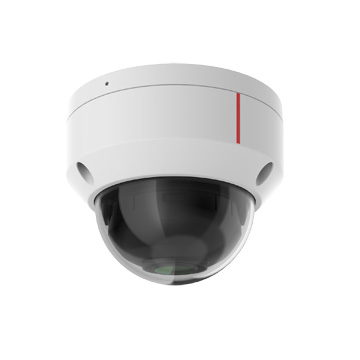

C3240-10-EI-PU(2.8mm) 1T 4 million infrared AI dome camera
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Computing power 1 TOPS
Sensor photosensitive surface size 1/2.7" CMOS
Minimum illumination color: 0.005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0025Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (infrared on)
Lens focal length 2.8mm
Lens viewing angle Horizontal: 101.4°; Vertical: 54.6°
Infrared light fill distance 30m
Video encoding format MJPEG/H.265
Video frame rate 25fps
Audio encoding format G.711a/G.711u/G.726/OPUS/AAC
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Power supply type DC12V, PoE (IEEE 802.3af)
Power consumption Maximum power consumption: 12.2W, Typical power consumption: 8.02W
Working temperature -30℃~40℃
Working humidity 5%~95% (no condensation)
Sensor photosensitive surface size 1/2.7" CMOS
Minimum illumination color: 0.005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0025Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (infrared on)
Shutter Shutter range: 1/25-1/100000; Live default value: 1/25; Single card default value: 1/25; Single micro card default value: 1/250; Behavior analysis default value: 1/25;
Day and night mode supported; automatic (ICR)/color/black and white/timing Default automatic Sensitivity high, medium, low Default high Image trigger/internal trigger
Gain control: During manual exposure, a total of 101 steps from 0 to 100 can be set in steps of 1. Default is 0.
White balance automatic/manual/one-key trigger
Digital Noise Reduction 2D/3D Noise Reduction
Wide dynamic range 120dB
Strong light suppression support
Optical fog transmission is not supported
Algorithm fog penetration supports 3A traditional algorithm;
Exposure compensation support
Exposure mode support
Signal-to-noise ratio >45dB
Backlight adaptive support
Fog adaptive support
Distortion correction support
Corridor mode supported
Mirror mode supports image mirroring (horizontal mirroring, vertical mirroring, horizontal and vertical mirroring)
Privacy masking support
Lens focal length 2.8mm
Maximum aperture F1.6
Lens aperture type fixed aperture
Lens viewing angle Horizontal: 101.4°; Vertical: 54.6°
Built-in infrared light support
Infrared light fill distance 30m
Video encoding format MJPEG/H.265
Number of video encoding channels: two streams
Main stream resolution 2560×1440(4MP), 1920×1080(1080P), 1280×720(720P), 720×576(PAL)
Sub-stream resolution Sub-stream one: 720×576 (PAL), 720×480 (NTSC), 352×288 (PAL), 352×240 (NTSC)
Video frame rate 25fps
Video bit rate is greater than 1080P~4K, 512Kbps ~ 8Mbps; 1080P, 256Kbps ~ 8Mbps; 720P, 256Kbps ~ 4Mbps; D1, 256Kbps ~ 2Mbps; CIF, 32Kbps ~ 1Mbps;
ROI (Region of Interest Coding) Main/sub-stream supports one each. The quality of ROI relative to non-ROI is adjustable from 0 to 10 in steps of 1.
Audio encoding format G.711a/G.711u/G.726/OPUS/AAC
Audio sampling rate G.711a/G.711u/G.726: 8K OPUS: 8K/12K/16K/24K/48K AAC: 8K/16K/22.05K/24K/32K/44.1K/48K
Audio bit rate G.711a/G.711u: 64kbps; G.726: 16, 24, 32, 40kbps can be set; OPUS: 16/24/32/40/64/96/128/160/192/224/256 /288Kbps can set AAC: 8K sampling rate, can be set to 16/22/24/32/48kbps 16K sampling rate, can be set to 24/32/48/64/96kbps 22.05/24K/32K sampling rate, can be set to 32/48/ 64/96/128kbps 44.1K/48K sampling rate, can be set to 48/64/96/128/256kbps
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
SD interface supports maximum capacity. Provides MicroSD card slot, supports MicroSDHC/MicroSDXC, and supports memory cards with a maximum capacity of 256GB.
Audio input interface supported (1 LINE IN and 1 built-in MIC)
Audio output interface supports (1 LINE OUT)
RS485 interface supported, 1 half-duplex RS485 interface
Switching interface supported, 2 inputs/1 output
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Access protocol GB/T 28181 (2011, 2016 protocol specifications), SDK (private protocol), Rest API (private protocol)
Protocols supported by IPV4 TCP, UDP, IPv4, DHCP, DNS, ICMP, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, 802.1x, QoS, SMTP
IPV6 supported protocols HTTPS, RTP, RTCP, RTSP, Onvif, IPv6, ICMPv6, DHCPv6
Business constraints supported by IPV6 Web page: live (static IPV6), recording (static IPV6), IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration Onvif: live (static IPV6), recording (static IPV6), IPv6 IP (Including static IP, route announcement) configuration, DHCPv6 configuration, Probe service not supported Note: 1. Does not support IPV6 multicast 2. Does not support DNS 3. Does not support IP conflict detection
User permissions are divided into 3 levels: administrator, senior operator, and ordinary operator
Safe mode Username and password authentication, support 802.1.x, HTTPS digital certificate
Video digital watermark support
Secure boot support
Power supply type DC12V, PoE (IEEE 802.3af)
Power consumption Maximum power consumption: 12.2W, Typical power consumption: 8.02W
Working temperature -30℃~40℃
Working humidity 5%~95% (no condensation)
Lightning protection and surge protection 2kV
Overall machine weight 0.36kg
Packing weight 0.52kg
Overall machine size 111.3mm*111.3mm*90mm
Packaging size 142mm*132mm*118mm

Accessories
Adapter--5degC-45degC-90V-270V-12V/2A-Chinese plug/DC head
EADAPTE09
(02220294)
DC12V 2A Australian standard power adapter
HW-120200A2W
(02220648)
Adapter--40degC-65degC-90V-264V-12V/2A-3PIN IN/2PIN OUT
HW-24-12AC14D
(02220883)
Adapter--5degC-45degC-150V-264V-12V1.5A-2 PIN/2.1*5.5*9.5 H PLUG-CCC 2PIN
HW-120150C3W
(02220931)
Adapter--5degC-40degC-170V-240V-12V/1A-CCC 2PIN/DC 2.1*5.5*9.5 H PLUG-Black
HW-120100C9W
(02221074)
Adapter--40degC-65degC-90V-290V-56.0V/1.61A-C14/RJ45
AD-560161T0E
(02221409)
Adapter--20degC-50degC-100V-240V-12.5V/2A-C8 in/2pin out 62368 split from 02220764
HW-125200D1D
(02221473)
Adapter--5degC-45degC-90V-270V-12V/2A-CE/2.1*5.5*9.5 H PLUG-Erp Level 6, Thailand vertical, split from 02220778, non-Huawei LOGO
HW-120200U7W
(02221797)
