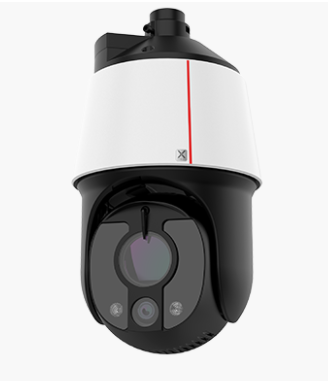

X6741-20-GZ40-E2-Wp 4T 4 million ultra-low light full color binocular AI dome camera
Support 4 TOPS computing power;
Support behavior analysis;
Supports backlight adaptation and fog penetration adaptation;
Using 1/1.8" CMOS;
Digital wide dynamic range and super wide dynamic range restore true details in high-contrast scenes;
Dual-lens 4MP high-definition design, taking into account both panoramic views and details;
Super-sensitive imaging technology, no light and low illumination, full color, ultimate image experience;
Double-layer AR anti-reflection coating to enhance light transmission performance;
Built-in AI ISP video stream noise reduction technology, video image enhancement;
Non-sensory wiper design supports sensorless cleaning;
Support GPS/Beidou real-time positioning;
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Chip SS928
Computing power 4 TOPS
Sensor photosensitive surface size 1/1.8" CMOS
Minimum illumination Color: 0.0003Lux (F1.2, AGC ON, 1/30 shutter) Black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (infrared on)
Lens focal length Minimum focal length: 5mm Maximum focal length: 208mm
Lens viewing angle Fixed focus: Horizontal: 90°, Vertical: 48° Zoom: W: Horizontal 20.7°; T: Horizontal 2.31° Viewing angle tolerance ≤5%
Infrared light fill distance 200m
White light fill light distance 30m
Video encoding format MJPEG/H.264/H.265
Video frame rate details: 30/25fps can be set; Panorama: 30/25fps can be set
Audio encoding format G.711a/G.711u/G.726/OPUS/AAC
Pan-tilt rotation angle Horizontal 0°～360° Vertical -10°～90°
PTZ horizontal speed Keying speed: 0.1°~160°/S Preset position speed: 240°/S
PTZ vertical speed Keying speed: 0.1~120°/s Preset speed: 200°/s
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M Ethernet port
Power supply type AC24V, POE (IEEE 802.3Bt)
Power consumption: Maximum power consumption: 56.7W, typical power consumption: 17.6W
Working temperature -40℃~60℃(fill light turned off) -40℃~40℃(fill light turned on)
Working humidity 5%~95% (no condensation)
Protection grade IP66
Anti-riot IK10 (except windows and air brushes)
Sensor photosensitive surface size 1/1.8" CMOS
Minimum illumination Color: 0.0003Lux (F1.2, AGC ON, 1/30 shutter) Black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (infrared on)
Shutter Shutter: 1/25-1/100000; Behavior analysis default value: Shutter limit: 1/25, Shutter value: 1/25;
Day and night mode supported; automatic (ICR)/color/black and white/timing Default automatic Sensitivity high, medium, low Default high Image trigger/internal trigger
Gain control: During manual exposure, a total of 101 steps from 0 to 100 can be set in steps of 1. Default is 0.
White balance automatic/manual/one-key trigger
Digital Noise Reduction 2D/3D Noise Reduction
wide dynamic range digital wide dynamic range
Strong light suppression support
Video anti-shake support function; support sensitivity;
Optical fog penetration support
Algorithm fog penetration support
Exposure compensation support
Exposure mode support
Signal-to-noise ratio >45dB
Electric focus support
Day and night focus compensation support
Backlight adaptive support
Fog adaptive support
Distortion correction support
Mirror mode details: supports image mirroring (horizontal mirroring, vertical mirroring, horizontal and vertical mirroring) Panorama: supports image mirroring (horizontal mirroring, vertical mirroring, horizontal and vertical mirroring)
Digital zoom support
Privacy masking support
Electronic compass support
GPS support
EMMC support (start)
Lens focal length Minimum focal length: 5mm Maximum focal length: 208mm
Maximum aperture Fixed focus: F1.0 Zoom: F1.8 (W end)-F3.8 (T end)
Lens aperture type Fixed focus: fixed aperture, zoom: precise aperture (P-Iris)
Lens viewing angle Fixed focus: Horizontal: 90°, Vertical: 48° Zoom: W: Horizontal 20.7°; T: Horizontal 2.31° Viewing angle tolerance ≤5%
Built-in infrared light support
Infrared light fill distance 200m
Built-in white light support
White light fill light distance 30m
Video encoding format MJPEG/H.264/H.265
Number of video encoding channels: two streams
Main stream resolution Details: 2560×1440(4MP), 2304×1296(3MP), 1920×1080(1080P), 1280×720(720P); Panorama: 2560×1440(4MP), 2304×1296(3MP) ,1920×1080(1080P),1280×720(720P)
Sub-stream resolution details: Sub-stream one: 720×576 (PAL), 720×480 (NTSC), 352×288 (PAL), 352×240 (NTSC) Panorama: Sub-stream one: 720×576 ( PAL), 720×480(NTSC), 352×288(PAL), 352×240(NTSC)
Video frame rate details: 30/25fps can be set; Panorama: 30/25fps can be set
Video bit rate only for H.264 and H.265 1080P~4K 512Kbps ~ 16Mbps 720P 384Kbps ~ 8Mbps D1 256K ~ 4Mbps CIF 32K ~ 1Mbps
Smart encoding Extra265/264
ROI (Region of Interest Coding) Each channel supports 4 groups. The quality of ROI relative to non-ROI is adjustable from 0 to 10 in steps of 1.
Audio encoding format G.711a/G.711u/G.726/OPUS/AAC
Audio sampling rate G.711a/G.711u/G.726: 8K OPUS: 8K/12K/16K/24K/48K AAC: 8K/16K/22.05K/24K/32K/44.1K/48K
Audio bit rate G.711a/G.711u: 64kbps; G.726: 16, 24, 32, 40kbps can be set; OPUS: 16/24/32/40/64/96/128/160/192/224/256 /288Kbps can set AAC: 8K sampling rate, can be set to 16/22/24/32/48kbps 16K sampling rate, can be set to 24/32/48/64/96kbps 22.05/24K/32K sampling rate, can be set to 32/48/ 64/96/128kbps 44.1K/48K sampling rate, can be set to 48/64/96/128/256kbps
Pan-tilt rotation angle Horizontal 0°～360° Vertical -10°～90°
PTZ horizontal speed Keying speed: 0.1°~160°/S Preset position speed: 240°/S
PTZ vertical speed Keying speed: 0.1~120°/s Preset speed: 200°/s
Watch mode support
Cruise track support
Preset positions support 512 (including 1 guard position)
Guard position supports 1 guard position
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
SD interface supports maximum capacity. Provides MicroSD card slot, supports MicroSDHC/MicroSDXC, and supports memory cards with a maximum capacity of 256GB.
Audio input interface supported (1 LINE IN or 1 external MIC)
Audio output interface supports (1 LINE OUT)
RS485 interface supported, 1 half-duplex RS485 interface
Switching interface supported, 4 inputs/2 outputs
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M Ethernet port
Access protocol GB/T 28181 (2011, 2016 protocol specifications), SDK (private protocol), Rest API (private protocol), GA/T 1400
Protocols supported by IPV4: TCP, UDP, IPv4, DHCP, DNS, ICMP, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/V3), 802.1x, QoS, SMTP, PPPOE Note: 18 northbound protocol should be adapted to PPPOE dial-up scenarios
IPV6 supported protocols HTTPS, RTP, RTCP, RTSP, Onvif, IPv6, ICMPv6, DHCPv6
Business constraints supported by IPV6 Web page: live (static IPV6), recording (static IPV6), IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration Onvif: live (static IPV6), recording (static IPV6), IPv6 IP (Including static IP, routing announcement) configuration, DHCPv6 configuration, Probe service not supported Note: 1. Does not support IPV6 multicast 2. Does not support DNS 20. Does not support IP conflict detection
User permissions are divided into 3 levels: administrator, senior operator, and ordinary operator
Safe mode Username and password authentication, support 802.1.x, HTTPS digital certificate
Video digital watermark support
GB35114 support
Secure boot support
Security/encryption intrusion detection support
Power supply type AC24V, POE (IEEE 802.3Bt)
Power consumption: Maximum power consumption: 56.7W, typical power consumption: 17.6W
Working temperature -40℃~60℃(fill light turned off) -40℃~40℃(fill light turned on)
Working humidity 5%~95% (no condensation)
Windows self-cleaning support
Window self-cleaning index 1. Supports double-sided coating (double-sided AR + single-sided AF) 2. Transmittance: 400~900nm band, Tave≥97% 3. Hardness: 2H 4. Water contact angle: ≥110 °
Lightning protection and surge protection 6kV
Protection grade IP66
Anti-riot IK10 (except windows and air brushes)
Overall machine weight 8.4kg
Packing weight 9.9kg
Overall machine size φ242.3mm*443.6mm
Packaging size 590mm*325mm*355mm
Accessories
Power frequency transformer-207V-253V-3A-24V-130*92*68mm--40degC-50degC
HW-7224C14D-B
(02220376)
Power frequency transformer-108V-132V-3A-24V-130*92*68mm--40degC-50degC
HW-7224C14D-A
(02220387)
Adapter--40degC-65degC-90V-290V-56.0V/1.61A-C14/RJ45
AD-560161T0E
(02221409)
Ball machine column bracket
ACC3631
(21154636)
Ball machine corner mounting bracket
ACC3651
(21154638)
Ball machine wall mount bracket
ACC3611
(51661JVP)
Ball machine lifting bracket
ACC3621
(51661MCK)
