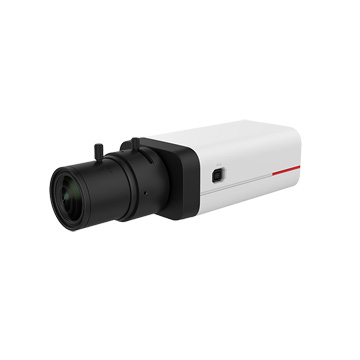

C1220-10-Fb 1T 2 million AI gun camera
Support 1 TOPS computing power;
Support behavior analysis, target, human body;
Using 1/2.7" CMOS;
120dB super wide dynamic range, restoring true details in high-contrast scenes;
Key specifications
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
target target detection
Human body detection
Chip Hi3516DV300
Computing power 1 TOPS
Memory DDR3 0.2500 GB
Flash SPI NAND FLASH
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/2.7" CMOS
Minimum illumination color: 0.002Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0005Lux (F1.2, AGC ON, 1/30 shutter)
Video encoding format MJPEG/H.264/H.265
Video frame rate 30/25fps can be set, the default value is 25fps
Audio encoding format G.711a/G.711u/G.726/OPUS
RS485 interface support
Switching interface support
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Optical network interface 1 SFP slot
Optical network bandwidth Gigabit protocol, 100M speed
Power supply type AC24V, DC12V, PoE (802.3af)
Power consumption: Maximum power consumption: 6.6W, typical power consumption: 4.1W
Working temperature -30℃~60℃(fill light off) -30℃~40℃(fill light on)
Working humidity 5%~95% (no condensation)
Basic parameters
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/2.7" CMOS
Minimum illumination color: 0.002Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0005Lux (F1.2, AGC ON, 1/30 shutter)
Shutter supports slow shutter; slow shutter levels: 1/3, 1/4, 1/8, 1/12, 1/15; non-slow shutter levels: 1/25, 1/30, 1/50, 1/60, 1/90,1/100,1/120,1/125,1/180,1/250,1/350,,1/500,1/725,1/1000,1/1500,1/2000,1 /3000,1/4000,1/6000,1/10000,1/30000,1/100000, custom shutter; default value 1/25;
Day and night mode supported; automatic (ICR)/color/black and white Default automatic Sensitivity high, medium, low Default high Image trigger/internal trigger
Gain control: During manual exposure, a total of 101 steps from 0 to 100 can be set in steps of 1. Default is 0.
White balance automatic/manual/one-key trigger
Digital Noise Reduction 2D/3D Noise Reduction
Wide dynamic range 120dB
Strong light suppression support
Video anti-shake function is not supported; sensitivity is not supported;
Algorithm fog penetration support
Exposure compensation support
Exposure mode support
Signal-to-noise ratio >45dB
Sound and light assisted focus support
Mirror mode supports image mirroring (horizontal mirroring, vertical mirroring, horizontal and vertical mirroring)
Privacy masking support
Lens/fill light
Lens aperture type DC-Iris (driving impedance ≥190ohm; braking impedance ≥500ohm)
video/audio
Video encoding format MJPEG/H.264/H.265
Number of video encoding channels: three streams
Main stream resolution 1920×1080(1080P), 1280×720(720P)
Sub-stream resolution Sub-stream one: 1920×1080(1080P), 1280×720(720P), 720×576(PAL), 720×480(NTSC); Sub-stream two: 720×576(PAL), 720×480(NTSC), 352×288(PAL), 352×240(NTSC)
Video frame rate 30/25fps can be set, the default value is 25fps
Video bit rate only for H.264 and H.265 1080P~4K 512Kbps ~ 8Mbps 720P 384Kbps ~ 8Mbps D1 256K ~ 4Mbps CIF 32K ~ 1Mbps
Smart encoding Extra265/264
ROI (Region of Interest Coding) Each channel supports 4 groups. The quality of ROI relative to non-ROI is adjustable from 0 to 10 in steps of 1.
Audio encoding format G.711a/G.711u/G.726/OPUS
Audio sampling rate G.711a/G.711u/G.726: 8K OPUS: 8K/12K/16K/24K/48K
Audio bit rate G.711a/G.711u: 64kbps; G.726: 16, 24, 32, 40kbps can be set; OPUS: 16/24/32/40/64/96/128/160/192/224/256 /288Kbps can be set
intelligent
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
target target detection
Human body detection
interface
SD interface supports maximum capacity. Provides MicroSD card slot, supports MicroSDHC/MicroSDXC, and supports memory cards with a maximum capacity of 256GB.
Audio input interface supported (1 LINE IN or 1 external MIC)
Audio output interface supports (1 LINE OUT)
RS485 interface supported, 1 half-duplex RS485 interface
Switching interface supported, 1 input/1 output
Ethernet interface support
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Optical network interface 1 SFP slot
Optical network bandwidth Gigabit protocol, 100M speed
Optoelectronic serial interface support
Network docking
Access protocol GB/T 28181 (2011, 2016 protocol specifications), SDK (private protocol), Rest API (private protocol), GA/T 1400
Protocols supported by IPV4: TCP, UDP, IPv4, DHCP, DNS, ICMP, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/V3), 802.1x, QoS,SMTP,PPPOE
IPV6 supported protocols HTTPS, RTP, RTCP, RTSP, Onvif, IPv6, ICMPv6, DHCPv6
Business constraints supported by IPV6 Web page: live (static IPV6), video (static IPV6), IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration
Onvif: live (static IPV6), video (static IPV6), IPv6 IP (including static IP, routing announcement) configuration, DHCPv6 configuration, Probe service not supported
Note:
1. Does not support IPV6 multicast
2. Does not support DNS
3. Does not support IP conflict detection
Safety
User permissions are divided into 3 levels: administrator, senior operator, and ordinary operator
Safe mode Username and password authentication, support 802.1.x, HTTPS digital certificate
GB35114 support
Secure boot support
General specifications
Power supply type AC24V, DC12V, PoE (802.3af)
Power consumption: Maximum power consumption: 6.6W, typical power consumption: 4.1W
Working temperature -30℃~60℃(fill light off) -30℃~40℃(fill light on)
Working humidity 5%~95% (no condensation)
Lightning protection and surge protection 4kV
Overall machine weight 0.54kg
Packing weight 0.74kg
Overall machine size 78.0mm×62.5mm×149.2mm (excluding lens)
Packaging size 230mm×125mm×108mm
Accessories
Lens-Auto aperture manual zoom lens-1/2.7"-2 million-F1.4-DC aperture-2.8-12mm-CS interface
TT02812D.IR-SD(3MP)
(48010111)
Lens-Manual zoom lens-1/2.7"-6MegaPixe-1.4 DC-iris-5~50-CS interface
CS-D0550IR(6MP)-1
(48010182)
Adapter--5degC-45degC-90V-270V-12V/2A-Chinese plug/DC head
EADAPTE09
(02220294)
Power frequency transformer-207V-253V-3A-24V-130*92*68mm--40degC-50degC
HW-7224C14D-B
(02220376)
Power frequency transformer-108V-132V-3A-24V-130*92*68mm--40degC-50degC
HW-7224C14D-A
(02220387)
DC12V 2A Australian standard power adapter
HW-120200A2W
(02220648)
Adapter--5degC-40degC-170V-240V-12V/1A-CCC 2PIN/DC 2.1*5.5*9.5 H PLUG-Black
HW-120100C9W
(02221074)
Adapter--20degC-50degC-100V-240V-12.5V/2A-C8 in/2pin out 62368 split from 02220764
HW-125200D1D
(02221473)
Adapter--5degC-45degC-90V-270V-12V/2A-CE/2.1*5.5*9.5 H PLUG-Erp Level 6, Thailand vertical, split from 02220778, non-Huawei LOGO
HW-120200U7W
(02221797)
shield
DTS-15K
(02411379)
shield
DTS-15SHK
(02411380)
shield
DTS-15SHK-50W
(02411381)
Barrel machine column bracket
ACC3231
(21154637)
Two-dimensional universal joint
ACC3280
(21154639-001)
Bolt wall mount bracket
ACC3210
(51661JVQ)
Bolt mount
ACC3121
(51661LKS)
Guard, barrel hoisting bracket
ACC3221
(51661LKT)
Small barrel/bolt wall mount bracket
ACC3217
(51661QBT)
