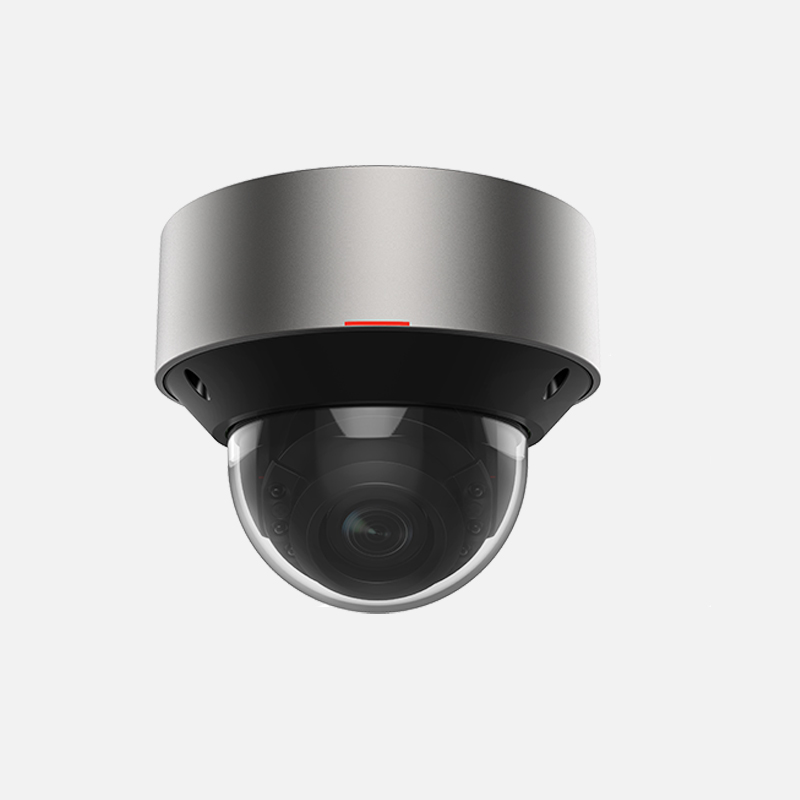

X3221-C 4T 2 million super starlight dome camera
Support 4 TOPS computing power;
Supports heat maps, 1-to-N function, behavior analysis, faces, and human bodies;
Supports backlight adaptation and fog penetration adaptation;
Using 1/1.8" CMOS;
Software definition supports online loading and upgrade of algorithms;
120dB super wide dynamic range, restoring true details in high-contrast scenes;

Chip Hi3559AV100
Computing power 4 TOPS
Memory DDR4 4.0 GB
Flash SPI NAND FLASH 512.0 MB
Sensor maximum image size 2MP 1920(H)*1080(V)
Sensor photosensitive surface size 1/1.8"
Minimum illumination color: 0.0004Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0001Lux (F1.2, AGC ON, 1/30 shutter)
Lens focal length 8-32mm
Lens viewing angle: horizontal: 13.44° (T end) ~ 42.3° (W end); vertical: 7.7° (T end) ~ 23.34° (W end)
Infrared light fill distance 15m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Heat map support
1 drag N function supported
Behavior analysis: rapid movement detection, removal detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Face face detection, face capture enhancement, face attribute detection, face recognition
Human body detection, human attribute detection
RS485 interface supported
Switching interface support
Ethernet interface supported
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M/1000M adaptive Ethernet port
Power supply type DC12V, AC24V, POE (IEEE 802.3at)
Power consumption: Maximum power consumption: 15W, typical power consumption: 6.5W
Working temperature -30℃~50℃
Working humidity 5%~95% (no condensation)
Protection grade IP67
Anti-riot IK10
